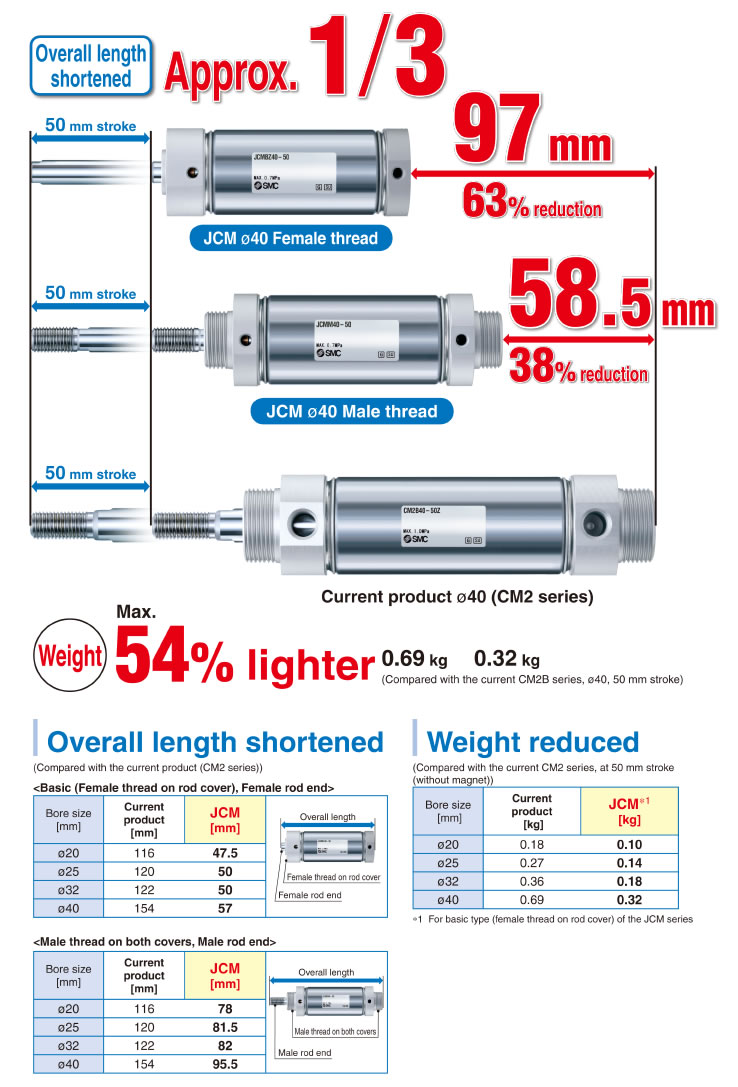

・Overall length shortened by up to 97 mm
・Weight reduced by up to 54% (0.69 kg→0.32 kg)
・Various cover types are available.
・Port sizes: M5 and Rc1/8
・Male and female rod ends are available.
・With auto switch (JCDM series: JCDM)
|Type||Series||Action||Bore size (mm)|
|Standard||JCM||Double acting single rod||20，25，32，40|
|Type||Series||Action||Bore size (mm)||Download|
|Standard||JCM||Double acting single rod||20，25，32，40||
(Compared with the current product (CM2 series))
(Compared with the current CM2 series, at 50 mm stroke (without magnet))
With M5 port, the overall length is maximum 13 mm shorter (for ø20).
Improved visibility of indicator LED
There are no parts near the indicator LED, so visibility is improved.
