Thermo-chiller/Environmentally Resistant Type HRS-R

Products »WEB Catalog » Temperature Control Equipment » Thermo-Chillers (Circulating Fluid Temperature Controllers)

	・Resistant to dust and water splashing ・Protection of the electrical unit: IP54 ・Metal panel 　The entire exterior surface is metal. 　A stainless steel panel can be selected. (Option) ・A large capacity tank (12 L) is available. (Option) ・Ambient temperature: 5 to 45°C

Data Download CAD Manual DoC PDF

Other Data	Safety Instructions　Temperature Control Equipment/Precautions　Features/Series Variations Technical Data　Temperature Control Equipment Warranty　Green Procurement (RoHS)

Series	Set temperature range	Cooling capacity	Temperature stability	Cooling method	Circulating fluid
HRS-R	5 to 40℃	1.9 kW 2.9 kW 5 kW (60 Hz)	±0.1℃	Air-cooled refrigeration	Tap water Ethylene glycol aqueous solution (15%)

Thermo-chiller/Environmentally Resistant TypeHRS-R

Series	Download
HRS-R

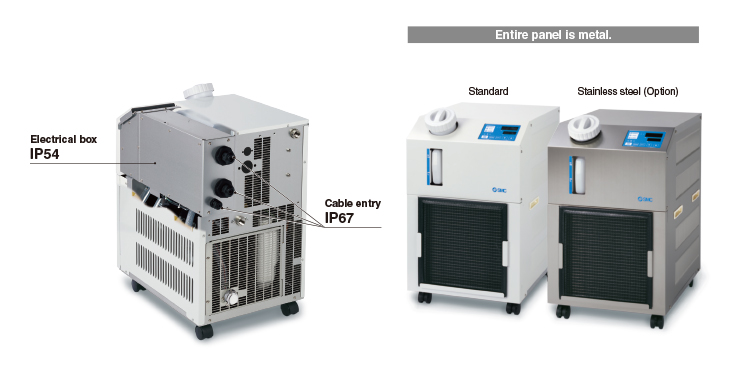

■Protection of the electrical unit: IP54

The board and electric parts are located inside the electrical box, where they can be protected from dust particles and water splashing.

■Compatible with power supplies in Europe, Asia, Oceania, and North, Central, and South America

Single-phase 200 to 230 VAC (50/60 Hz)

■A large capacity tank is available. (Option)

■With heating function

■Simple operation

■Convenient functions (Refer to the Operation Manual for details.)

■Reduced maintenance hours for the pump

■Toolless inspection and cleaning of aircooled condenser

■Power supply (24 VDC) available

■Particle filter set

■Variations

■Self-diagnosis function and check display

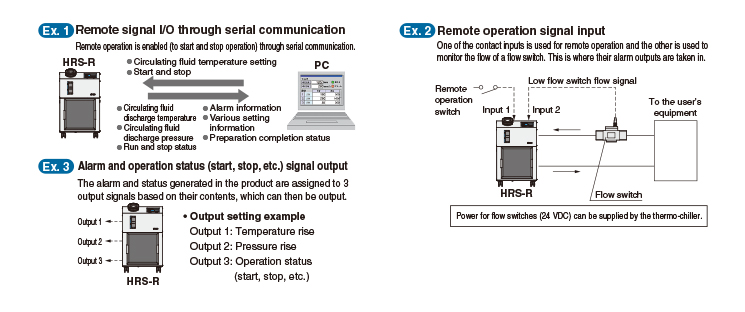

■Communication function

Serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are equipped as standard. This allows for communication with the user’ s equipment and system construction, depending on the application. A 24 VDC output can be also provided and is available for use with flow switches (SMC’s PF3W, etc.).

■Application Examples

■Global Supply Network

■SMC Thermo-chiller Variations
