Shot Pin Cylinder CKZP

Products »WEB Catalog » Air Cylinders » Pin Shift Cylinder

	・High Precision 　With rod extended: Deflection of ±0.1 mm or less 　Non-rotational accuracy: ±0.1 mm or less ・Positioning Repeatability 　Positioning accuracy ±0.05 mm, Distance accuracy ±0.1 mm ・High Output　Retract force 1764 N, Extending force 2362 N ・Mounting Based on NAAMS Standard (71 mm bore)

Data Download CAD PDF(1.4MB)

Other Data	Safety Instructions　Actuators/Precautions　Auto Switches/Precautions Green Procurement (RoHS)

Series	Bore size (mm)	Stroke (mm)
CKZP	57, 71	25, 50

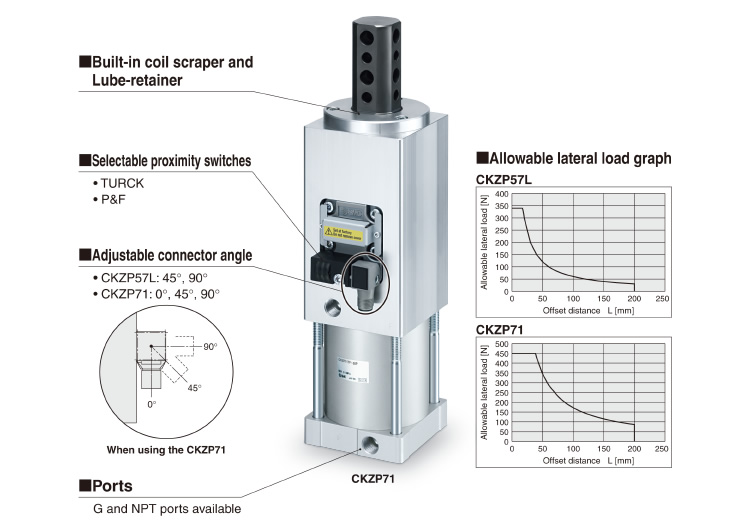

Shot Pin CylinderCKZP

Series	Bore size (mm)	Download
CKZP	57, 71

■High Precision

With rod extended: Deflection of ±0.1 mm or less (With 71 mm bore, 50 mm stroke)

Non-rotational accuracy: ±0.1 mm or less
(71 mm bore, with a 17.25 N·m load applied in the rotating direction.)

■Positioning Repeatability

Positioning accuracy ±0.05 mm

Distance accuracy ±0.1 mm

■High Output

Retract force 1764 N, Extending force 2362N
(71 mm bore, 0.6 MPa pressure)

■Mounting Based on NAAMS
　Standard (71 mm bore)

■Application Example
