・Compact: Width 20 mm, Lightweight: 250 g
・Maximum clamping force: 200 N, Maximum holding force: 300 N
・Flat clamping characteristics
Outputs constant clamping force for workpiece thicknesses up
to 3.5 mm
・Reduction of design/assembly labor by unitization
Arm assembly and mounting assembly have been added to
the clamp cylinder.
|Series||Action||Arm opening angle||Bore size (mm)|
|Series||Action||Bore size (mm)||Download|
Compact Width 20 mm (Base type, Tandem type)
Lightweight 250 g (Base type)
Maximum clamping force 200 N (Tandem type)
Maximum holding force 300 N (Base type, Tandem type)

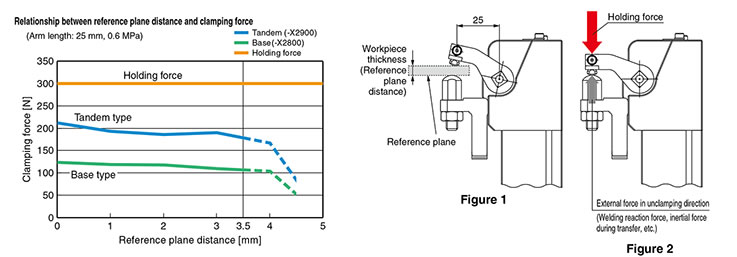

Outputs constant clamping force for workpiece thickness up to 3.5 mm.*Figure 1
· Easy adjustment of clamping position during assembly
· When thickness of workpiece differs, adjustment is not required if within range.
Arm assembly and Mounting assembly added to clamp cylinder.
Press the mounting bracket against surface A, and fix it with the work clamping base. Using a bolt to support the mounting bracket is recommended.
Magnetic field resistant auto switch：D-P3DWA□
Compact auto switch：D-M9□、D-A9□
Fully closed structure prevents dust from entering easily.
