Photovoltaic Cell Manufacturing Process Equipment
The vacuum-lift and transfer of a workpiece with uneven
and/or viscous surface (solar battery cell) is possible.
Air from the supply port is ejected from a nozzle on the cylindrical side to generate a whirlwind flow inside the cylinder and leading to the vacuum. (Cyclone effect) Supply air is discharged to the atmosphere from between the suction surface and the workpiece. As a result, an air layer is generated between the cyclone pad and the workpiece, resulting in the workpiece being lifted without contact.

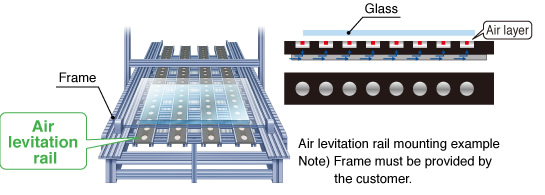

Prevents vibration and deflection of plates for thin film.
|・Air Levitation Rail (Made to Order)||Please inquire details|
