ZSE20□(F)/ISE20□ Series Updated Apr-18
- The IO-Link compatible type has been added to the 20B series.[New]
For general fluids IP65 2 outputs Analog output
- Visualization of Settings
- Simple 3-Step Setting
- Easy Screen Switching
- Delay Time :1.5 ms or less
- Current Consumption : 25 mA or less
● Visualization of Settings
The sub screen (label) shows the item to be set.
● Simple 3-Step Settings
When the S button is pressed and the set value (P_1) is being displayed, the set value (threshold value) can be set.
When the S button is pressed and the hysteresis (H_1) is being displayed, the hysteresis value can be set.
● Now with a snap shot function for set value reading
● Easy Screen Switching It is possible to change the settings while checking the measured value.
● 3 Setting Modes Select the setting mode that best meets your needs.
● Other Sub Screen Display
The peak value or bottom value, or both values can be displayed on one screen!
* Peak and bottom values are maintained even if the power supply is cut.
* 1 Select from 1.5 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, or 5000 ms.
Visualization of operation/equipment status/Remote monitoring and control by communication
Implement diagnostic bits in the process data.
The diagnostic bit in the cyclic process data makes it easy to find problems with the equipment.
It is possible to find problems with the equipment in real time using the cyclic (cycle) data and to monitor such problems in detail with the noncyclic (aperiodic) data.

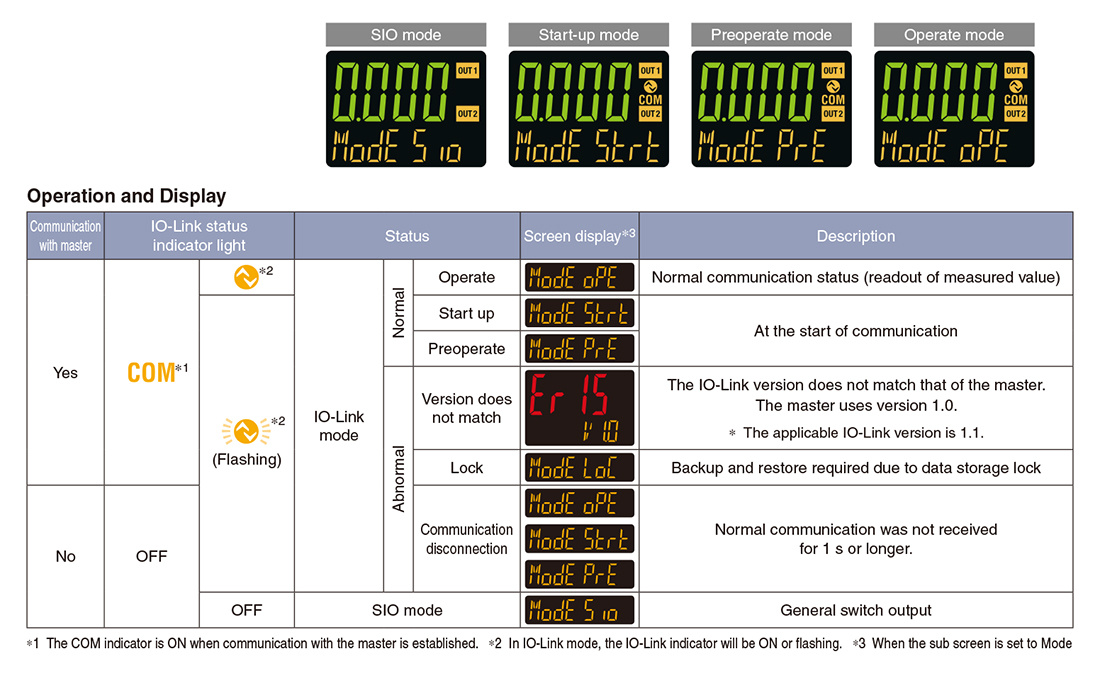

Displays the output communication status and indicates the presence of communication data
● Stainless diaphragm
● Enclosure: IP65
<Face seal and compression fitting>
<Threaded type (R, Rc, NPT, G)>

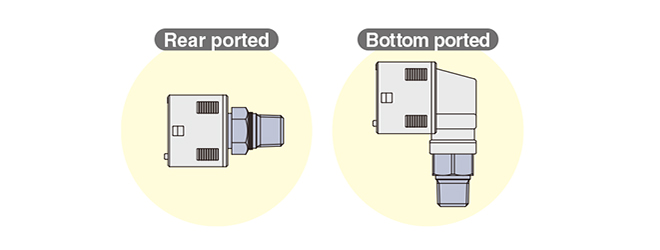

● Select from 2 Piping Directions.
● Welded structure for sensor units and fitting parts

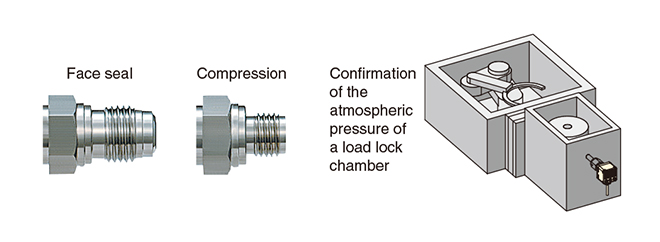

Select from a face seal or compression fitting.
● Applicable Fluid Examples
- Hydraulic fluid (JIS-K2213)
- Silicone oil (JIS-K2213)
- Lubricant (JIS-K6301)
- Carbon dioxide
- Air-containing drainage
Made to Order
・Parts in Contact with Fluid:Stainless Steel 316L
This pressure switch has increased corrosion resistance due to the use of stainless steel 316L for the parts in contact with fluid (pressure sensor and fitting).
