Thermo-chiller Dual Channel Refrigerated
Thermo-chiller for Lasers
HRL Series Updated Aug-19
- Temperatures for 2 fluid channel systems can
be controlled individually by one chiller.
- Space saving, Reduced wiring
- Footprint 22% reduction
- One power supply system for 2 channels
- Energy saving
Power consumption reduced by 30%
Keeping the size similar to the (HRSH series) single chiller, the temperature of 2 fluid channel systems are controlled individually.
The inverter respectively controls the number of motor rotations of the compressor, fan and pump depending on the load from the user’s equipment.
●Circulating fluid can be heated without a heater. (Circulates the hot discharged gas through expansion valve B)
By controlling the inverter compressor, inverter fan, and electronic expansion valve simultaneously, it maintains the good temperature stability when the heat load fluctuates.

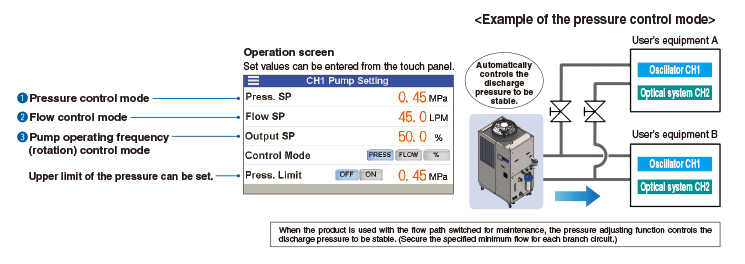

The pump operation mode can be selected by the touch panel.
Both channels use the mechanical sealless type pump. As the pump has no external leakage of the circulating fluid, a periodic check of the pump leakage and replacement of the mechanical seal are not necessary.
