温控器/恒温槽(珀耳帖式温控装置)

珀耳帖式温控器/安装柜安装型 HECR

    ・空间利用率高:可安置于19英寸的安装柜。
     由于安装柜能安装多台设备,故可节省空间。
    ・温度稳定性:±0.01℃~0.03℃。
    ・设定温度范围:10℃~60℃。
    ・冷却能力:200W、400W、510W、800W、1kW。
    ・消耗功率:200W、400W。

    ※提供样机试用服务。
     请与最近的营业所联系。

     营业所一览
系列设定温度范围冷却能力温度稳定性冷却方式
HECR002-A10~60℃200W±0.01~0.03℃珀耳帖式风冷
HECR004-A10~60℃400W±0.01~0.03℃珀耳帖式风冷
HECR006-A10~60℃510W±0.01~0.03℃珀耳帖式风冷
HECR008-A10~60℃800W±0.01~0.03℃珀耳帖式风冷
HECR010-A10~60℃1kW±0.01~0.03℃珀耳帖式风冷
HECR008-W10~60℃800W±0.01~0.03℃珀耳帖式水冷
HECR012-W10~60℃1.2kW±0.01~0.03℃珀耳帖式水冷

产品特点

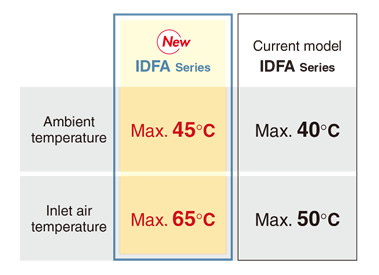

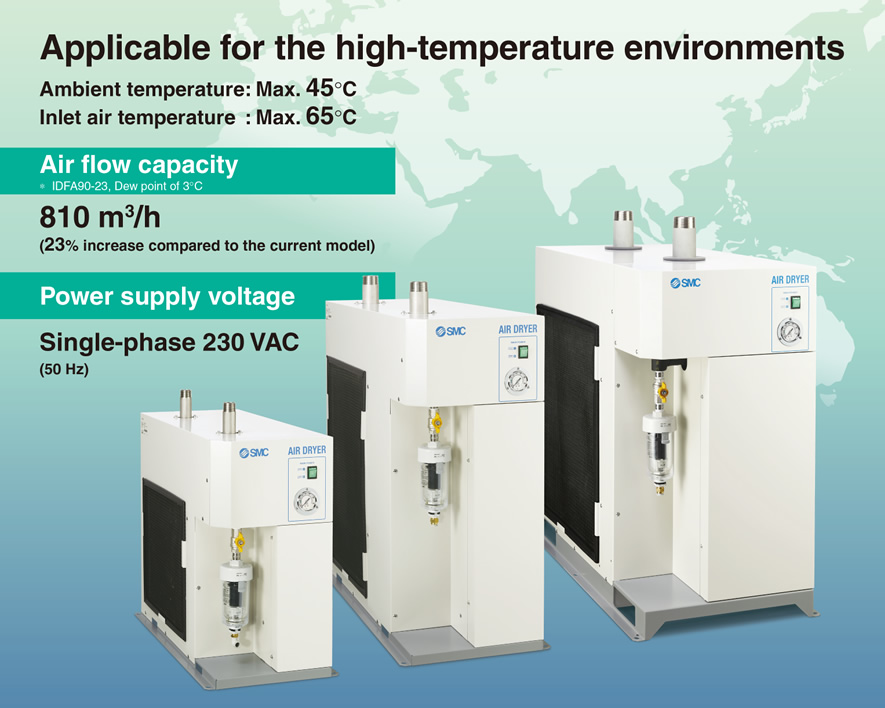

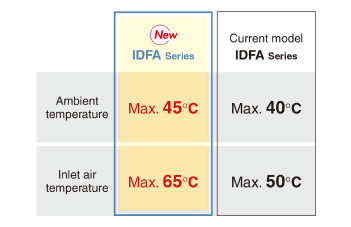

■Applicable for the hightemperature environments

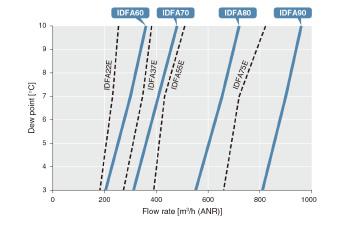

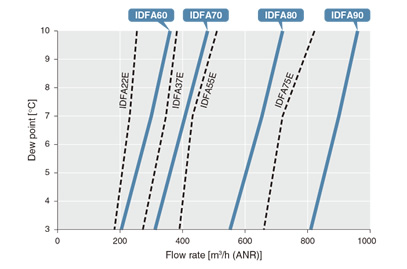

■Increased air flow capacity

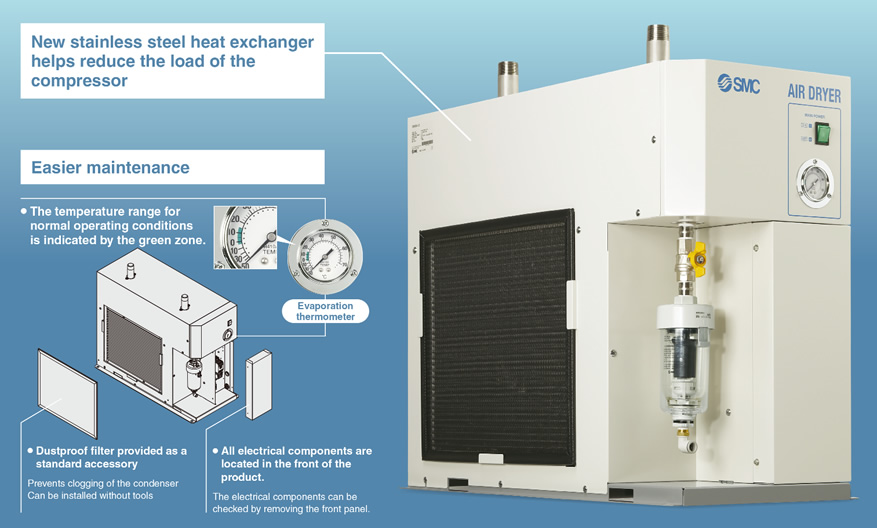

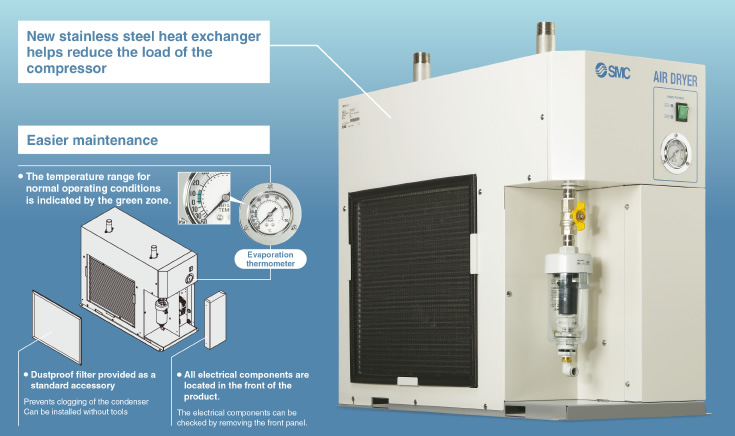

■Features ①

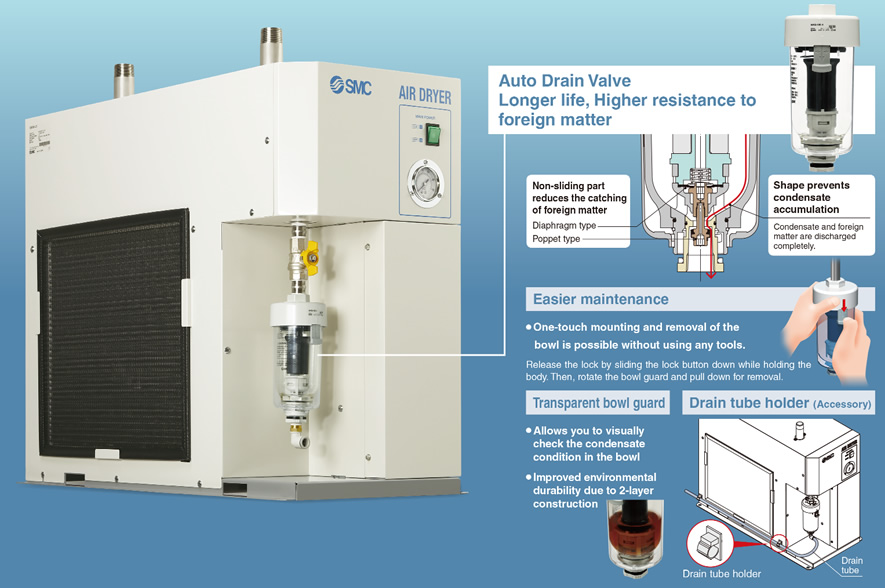

■Features ②

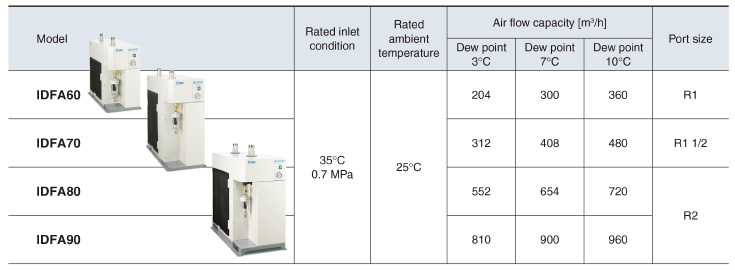

■Series Variations
■Options

・Cool compressed air output [New]
・Anti-corrosive treatment for copper tube
・With Chinese labels and a Chinese operation manual [New]
・With a heavy-duty auto drain
・With an earth leakage breaker
・ With a terminal block for operating, error, and remote operation signals
・With a timer controlled solenoid valve type auto drain

■Optional accessories

・Foundation bolt set
・Piping adapter
・Bypass piping set [New]

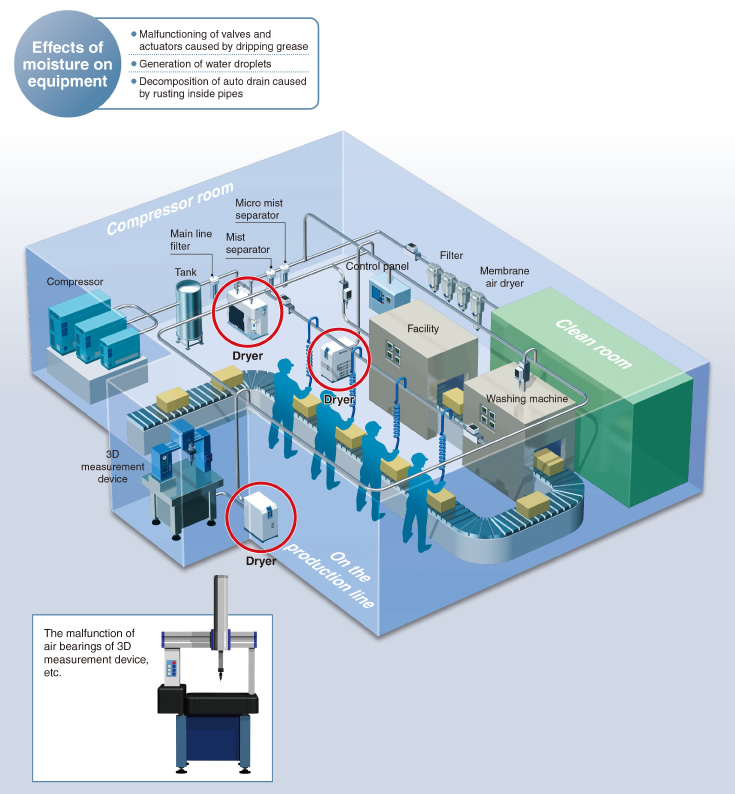

■Protect Pneumatic Equipment from Moisture!

An air dryer removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
