Vacuum Release Valve Units

Vacuum/Release Unit VQD1000-V

    ・Applicable to 0603 chips
    ・Response speed: 13 msec (at the time of 500 mm*) /18.5 msec (at the time of 1000 mm*)
    ・Smooth workpiece removal with no overshoot
    ・There is no need for timing adjustment of switchback between vacuum and positive pressure.
    ・A throttle circuit is not required for release air.
    ・Suction filter: ZFC050 (Made to order)

    * Distance from the unit to the work area
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Vacuum/Release Unit VQD1000-V
    DoC
    View search result
    View search result

Features

Adaptable to 0603 chip

Response speed

13 ms(at 500 mm*)/18.5 ms(at 1000 mm*

* Distance from the unit to the work area

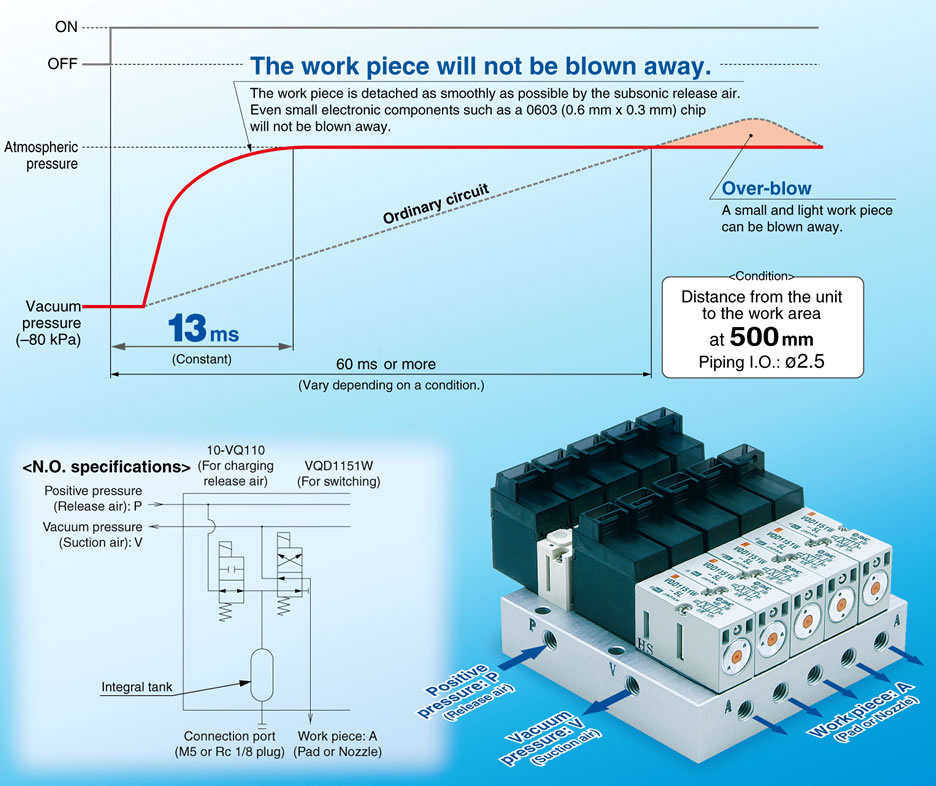

Smooth detachment of a work piece without over-blow

The work piece will not be blown away when the air is released.

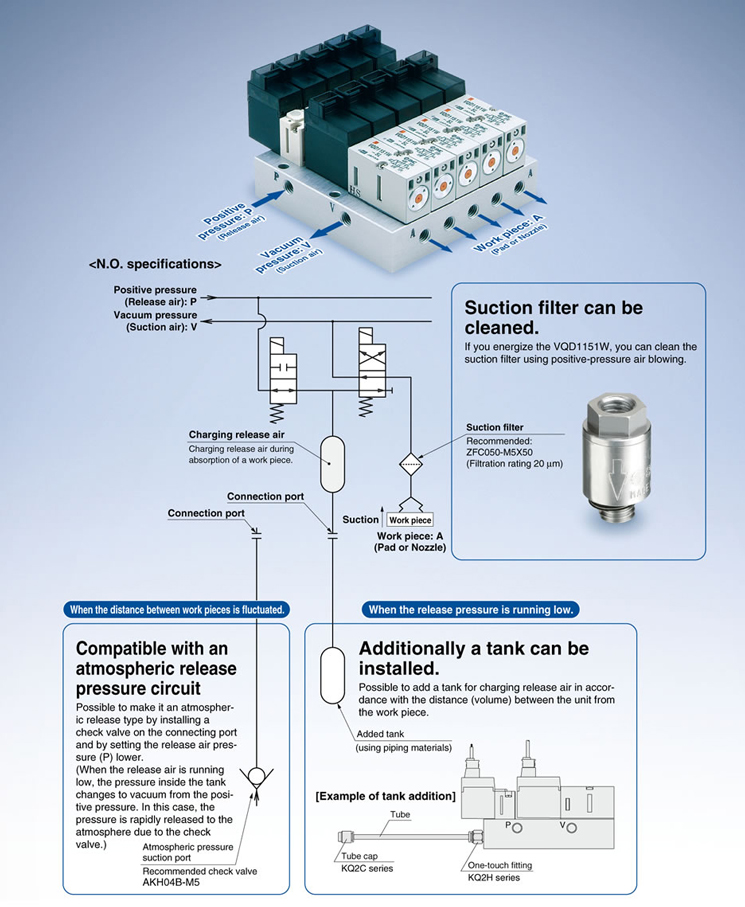

No need to adjust the timing when switching between vacuum and positive pressure. (single signal control)

No need to design a restrictor circuit for release air.

N.O. (Vacuum absorption type when de-energized) and N.C. (Vacuum shutoff type when de-energized) specifications are available.
