Vacuum Ejectors (Vacuum Generators)/Vacuum Pump Systems

Multistage Ejector (With built-in ZSE20A vacuum pressure switch)  ZL1/ZL3/ZL6

    ・An IO-Link compatible vacuum pressure switch has been added. (ZL3,
    　ZL6) New

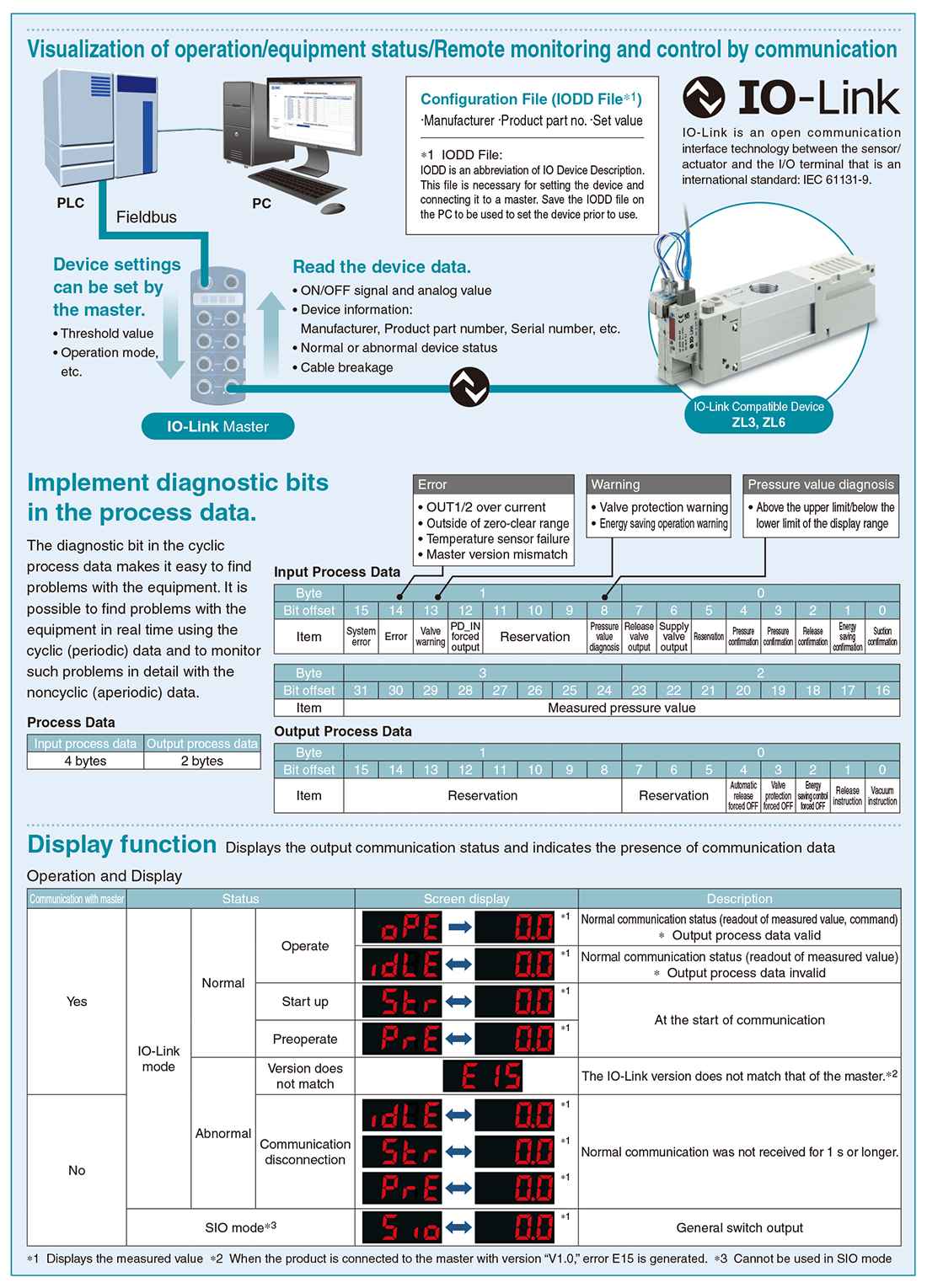

    　Allows for ejector control with a single communication line
    　Reading of the device information and parameter batch settings are
    　possible.

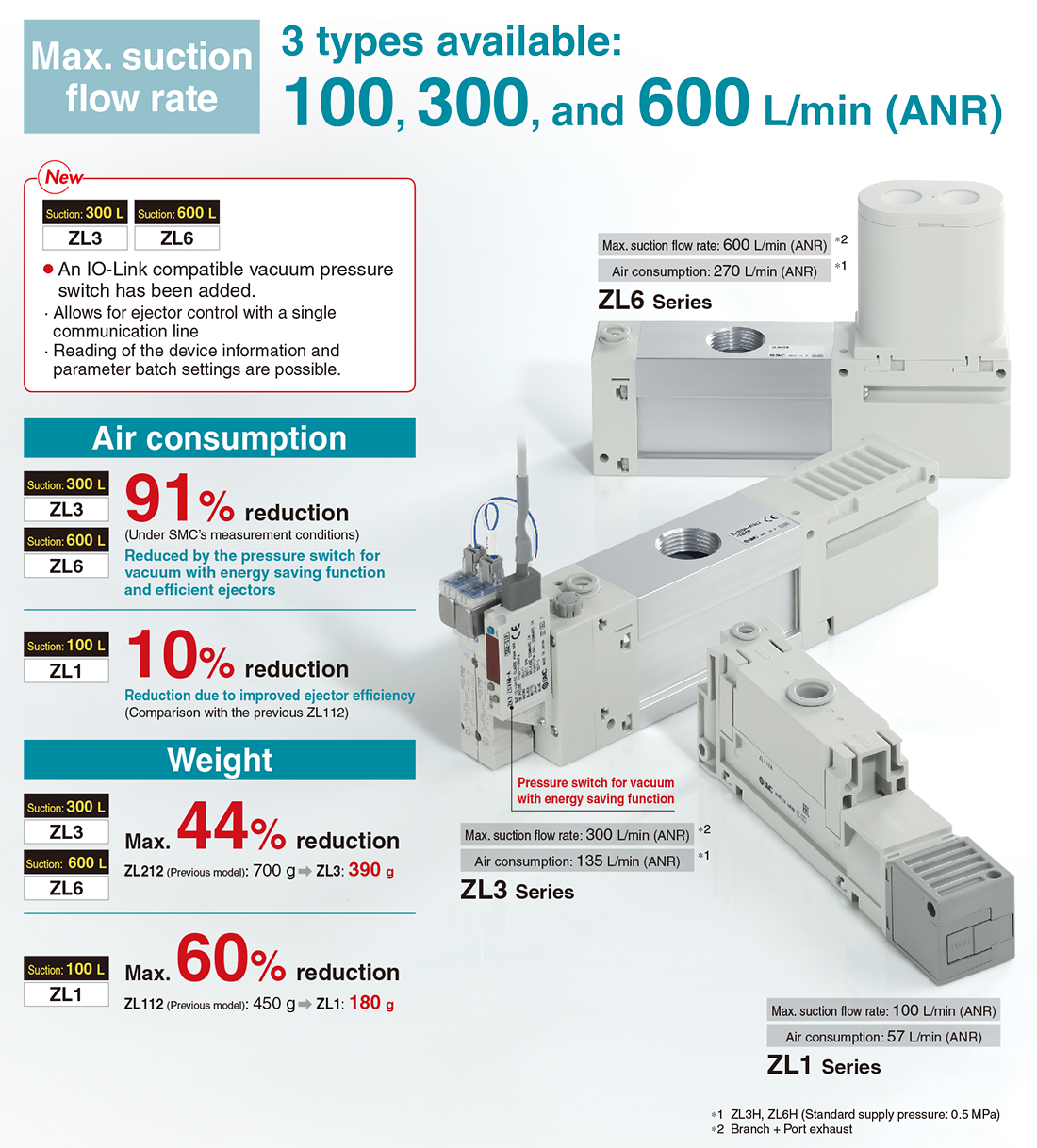

    ・Max. suction flow rate: 3 types available: 100, 300, and 600 L/min (ANR)

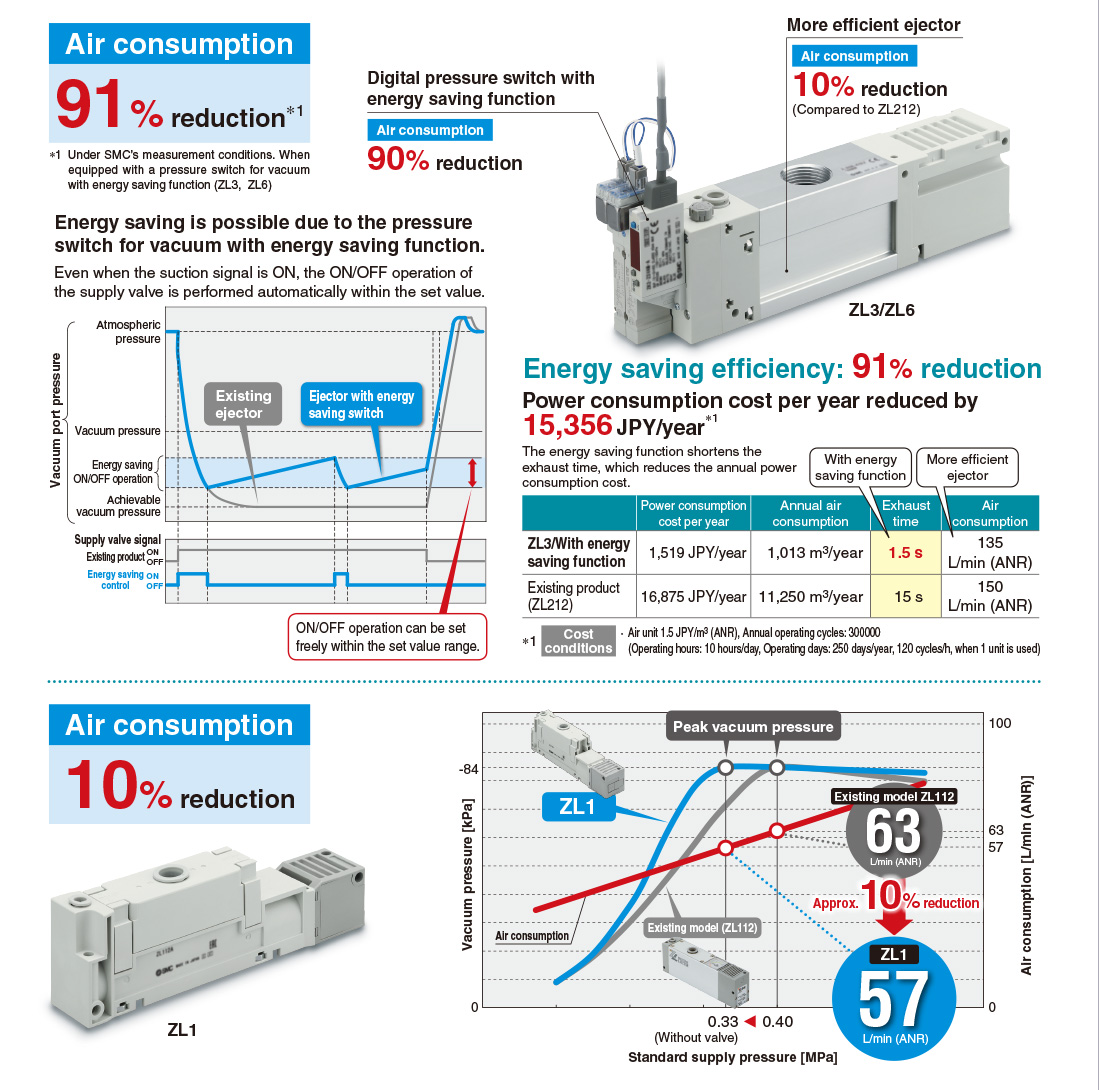

    ・Air consumption: 91% reduction (ZL3, ZL6)
    　Reduced by the pressure switch for vacuum with energy saving function
    　and efficient ejectors
    ・Weight: Max. 60% reduction [ZL112 (Existing model): 450 g → ZL1: 180 g]
Safety Instructions　Vacuum Equipment/Precautions　Series Variations/Model Selection
Green Procurement (RoHS)

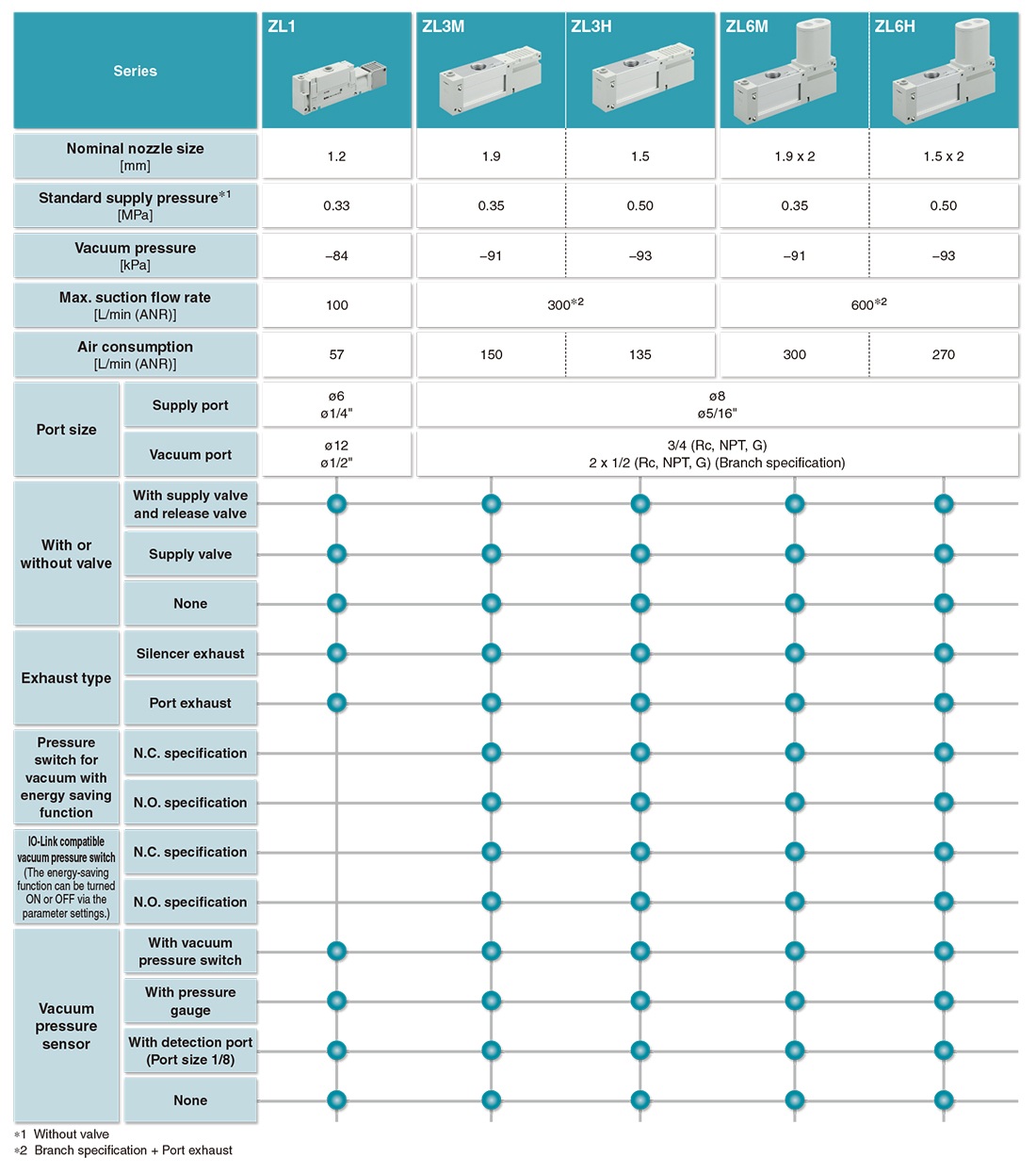

SeriesNozzle diameter
(mm)		Max. suction flow
[L/min(ANR)]		Air consumption
[L/min(ANR)]
ZL11.210057
ZL3M1.9300※1150
ZL3H1.5300※1135
ZL6M1.9×2600※1300
ZL6H1.5×2600※1270

Features

Compact3 types available: 100, 300, and 600 L/min (ANR)

Energy saving（ZL3、ZL6）

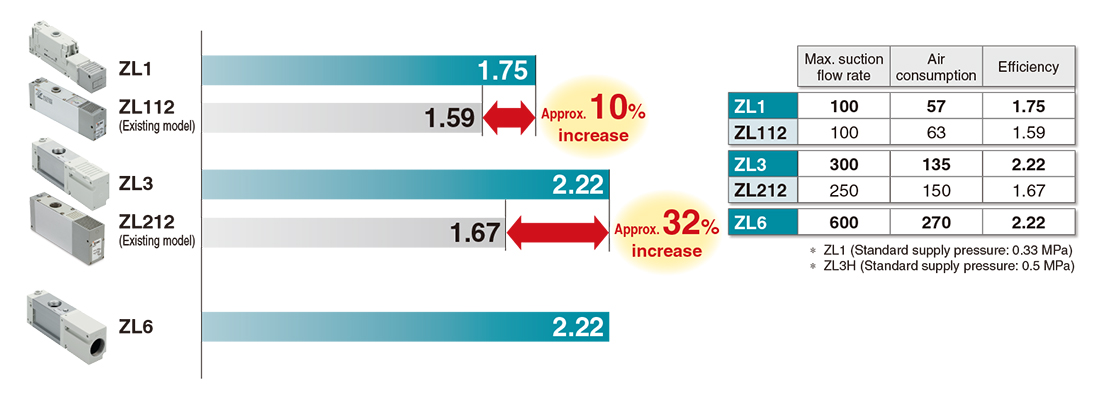

High efficiency (Suction flow rate/Air consumption)（ZL1、ZL3、ZL6）

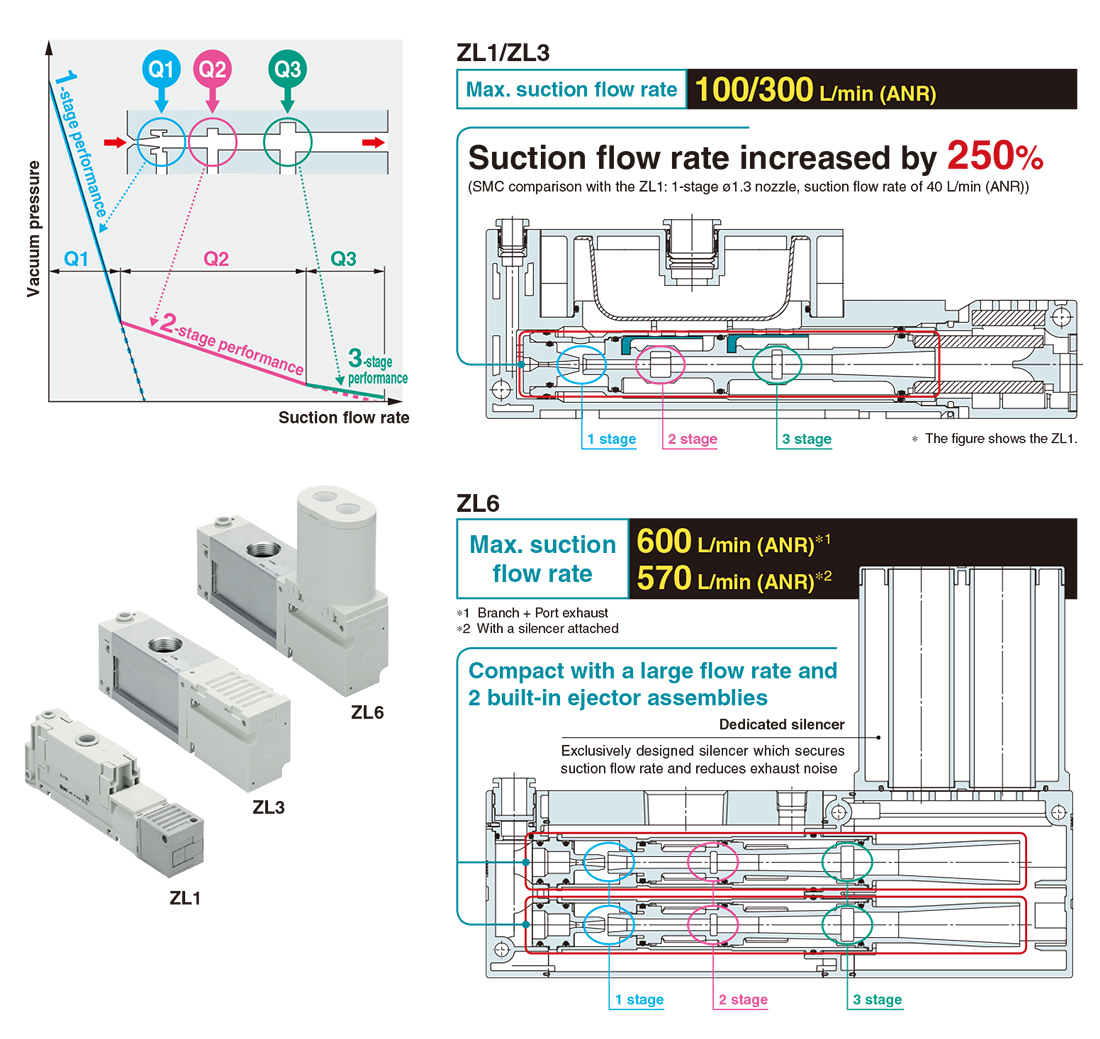

3-stage diffuser construction（ZL1、ZL3、ZL6）

Applications

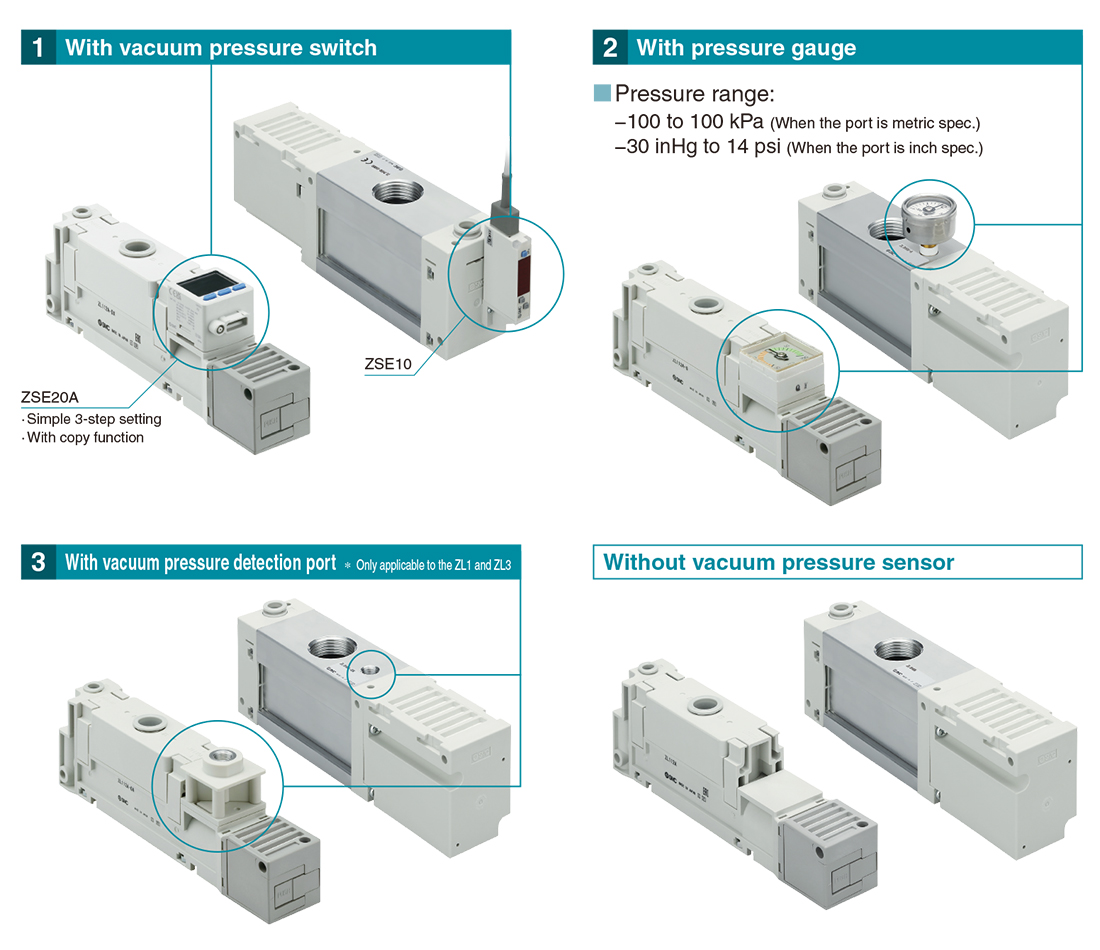

Various vacuum pressure sensors（ZL1、ZL3、ZL6）

Vacuum port: A branch specification is selectable.（ZL3、ZL6）

Standard supply pressure: A 0.35 MPa specification has been added. (ZL3、ZL6)

Supports the adoption of low supply pressure



IO-Link Compatible Vacuum Pressure Switch (ZL3、ZL6)

No tools are required! Reduced maintenance labor（ZL1）

Supply valve/Release valve

Variations
