Low Profile 2/3-Port Solenoid Valve SX90/090

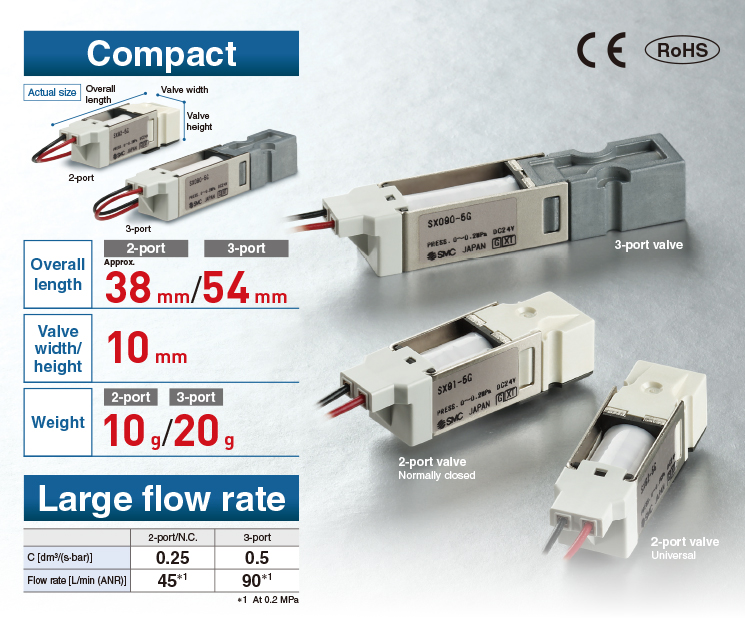

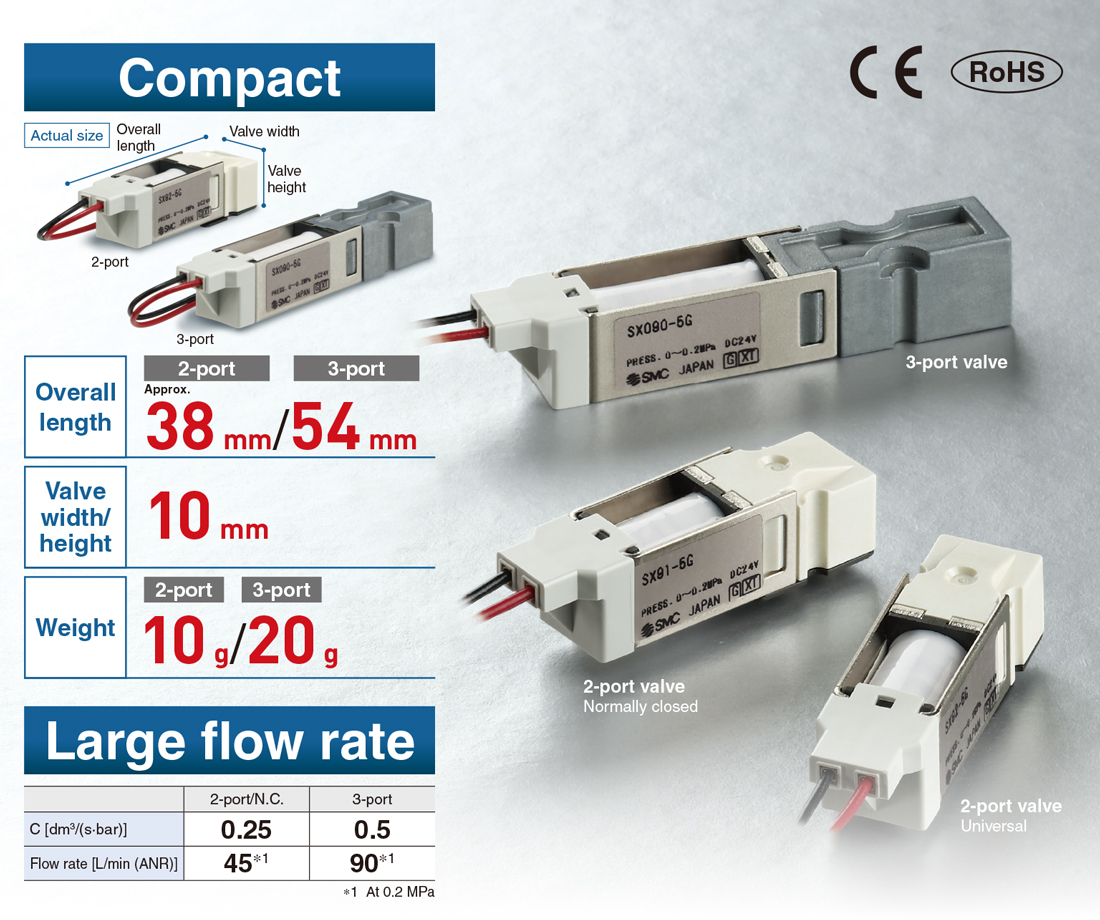

    ・Compact
    　Overall length: Approx. 38 mm (2-port), 54 mm (3-port)
    　Valve width/height: 10 mm
    　Weight: 10 g (2-port), 20 g (3-port)
    ・Large flow rate
    　C [dm3/(s·bar)]: 0.25 (2-port), 0.5 (3-port)
    　Flow rate [L/min (ANR)]: 45 (2-port), 90 (3-port) (At 0.2 MPa)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Low Profile 2/3-Port Solenoid Valve SX90/090
    DoC
    Series View search result
    SX91
    SX92
    SX090View search result
Safety Instructions　Green Procurement (RoHS)
SeriesValve constructionC［dm3/（s·bar）］Flow rate [L/min (ANR)]
at 0.2 MPa		Type of actuation
SX912-port
direct operated poppet valve		0.2545Normally closed
SX922-port
direct operated poppet valve		0.1222Universal
SX0903-port
direct operated poppet valve		0.590Universal

Features

Compact, Large flow rate

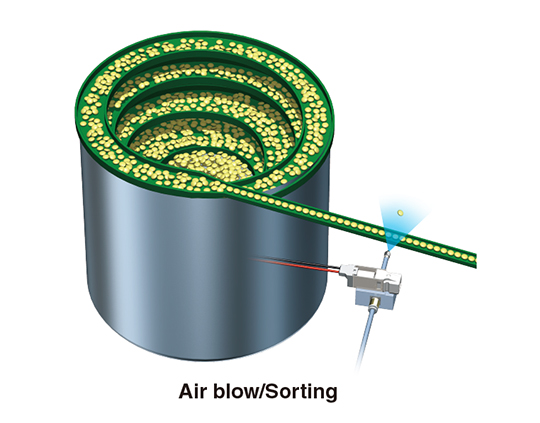

  • Application example

For various industries!
