Direct Operated 2 Port Solenoid Valve (2 Way Valve) VX2
-
・For air, medium vacuum, water, oil, steam (Can be used with heated water)

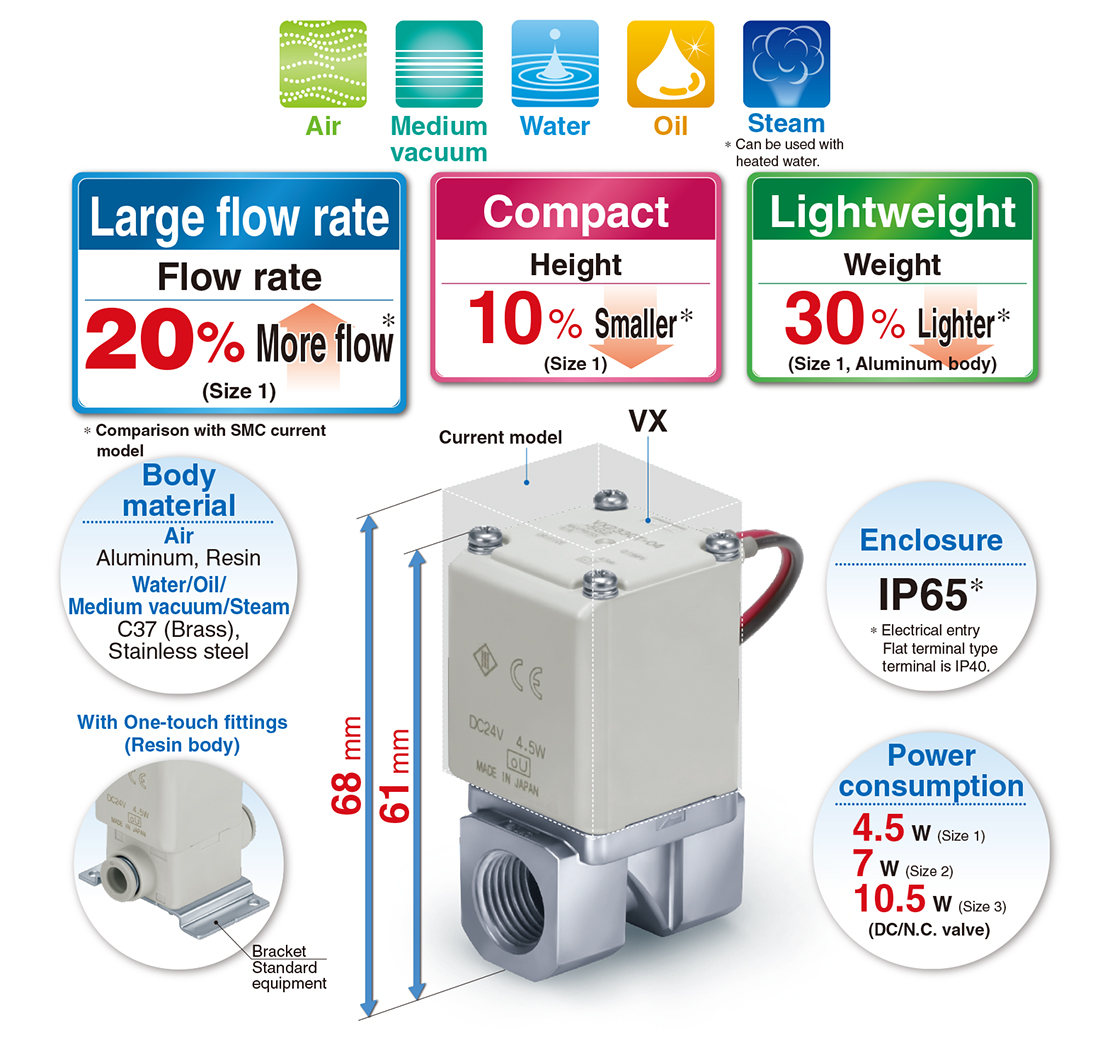

・Flow rate: 20% more flow＊
・Height: 10% smaller＊
・Weight: 30% lighter＊
・Body materials: Aluminum, Resin, C37, Stainless steel
・Available with One-touch fittings (Resin body)
＊Comparison made with SMC’s existing model
・Manifold type no.: VVX21, VVX22, VVX23
Model Selection/Flow Rate Characteristics
Series Variations/Selection Procedure/Solenoid Valves List/Air Operated Valves List
Green Procurement (RoHS)

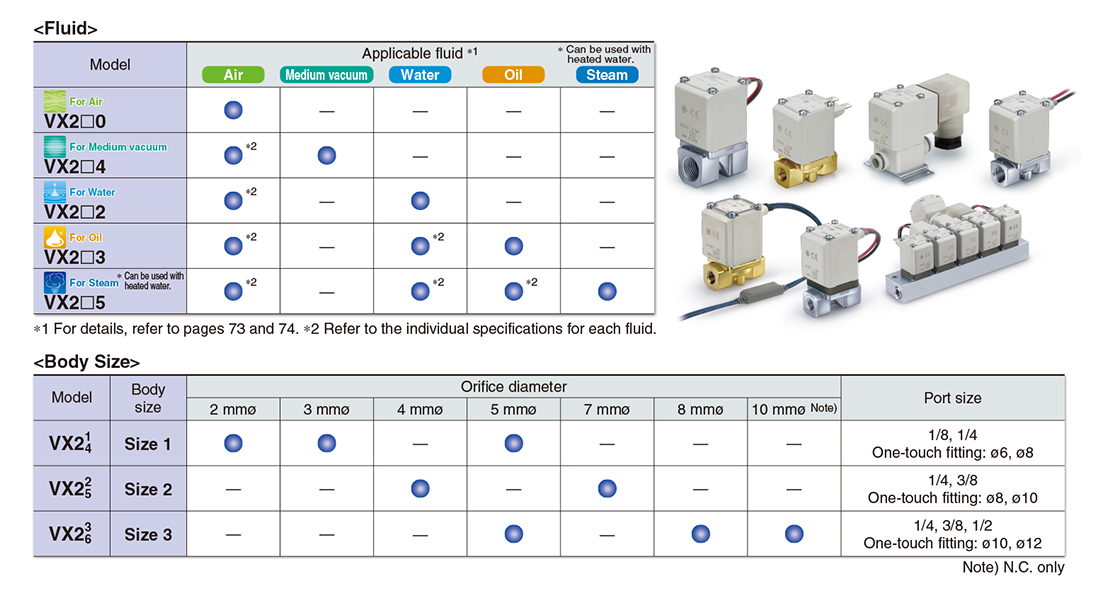

| Series | Valve type | Port size | Orifice diameter (mmø) |
|---|---|---|---|
| VX21/22/23 | N.C./N.O. | 1/8 to 1/2 ø6 to ø12 | 2 to 10 |
Features

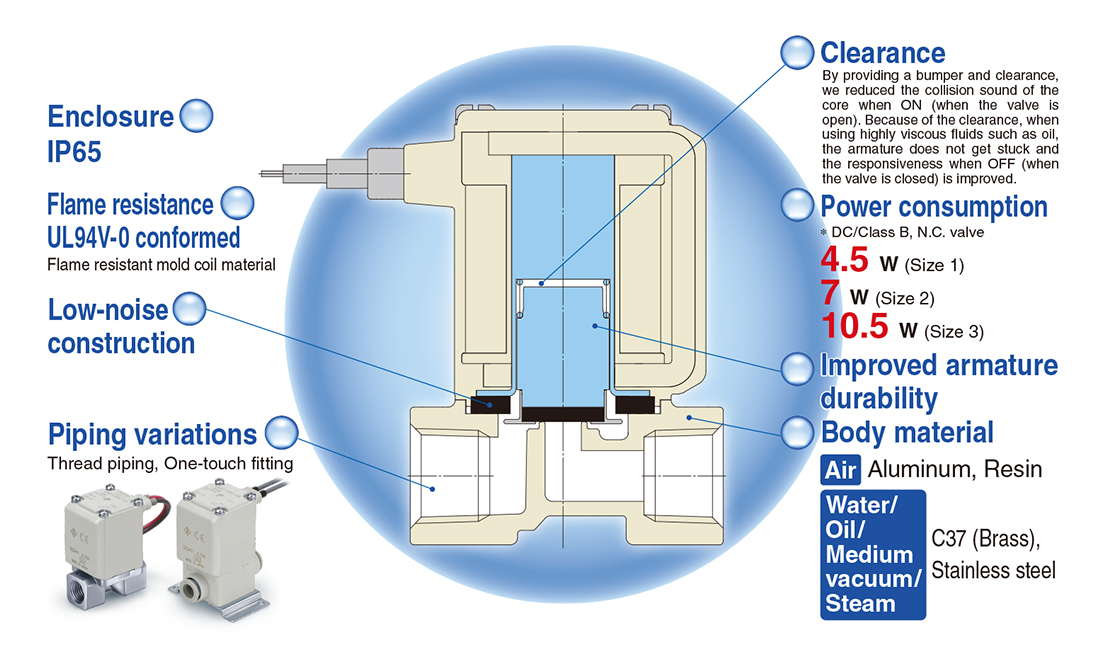

Body material:Aluminum, Resin( Air), C37 (Brass), Stainless steel(For water, oil, medium vacuum, and steam)
Enclosure: IP65(Electrical entry flat terminal type terminal is IP40.)
Power consumption: 4.5 W (Size 1), 7 W (Size 2), 10.5 W (Size 3)(DC, N.C. valve)
Piping variations: Thread piping, One-touch fitting
Full-wave rectifier type (AC specification; Insulation type: Class B/H)
・Improved durability
Service life is extended by the special construction. (Compared with the existing shading coil)
・Improved OFF response
Specially constructed to improve the OFF response when operated with a higher viscosity fluid such as oil
・Reduced buzz noise
Rectified to DC by the full-wave rectifier, resulting in a buzz noise reduction
・Low-noise construction
Specially constructed to reduce the metal noise during operation
・Reduced apparent power ∗ Class B, N.C. valve
10 VA→7 VA (Size 1) 20 VA→ 9.5 VA (Size 2) 32 VA→12 VA (Size 3)

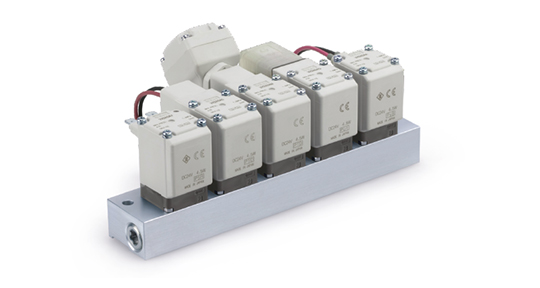

Manifold
Material/Body: PPS, Base: Aluminum, Seal: NBR, FKM
Solenoid coil type

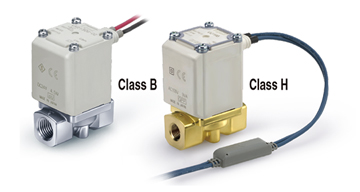

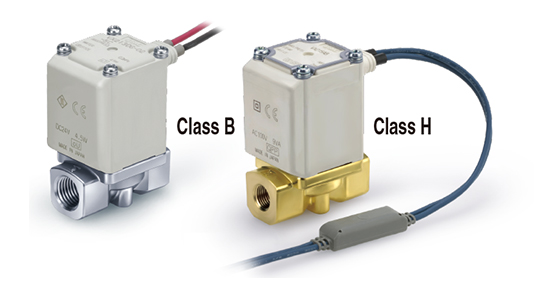

・ Insulation type: Class B/H
・Fluid temperature
Class B: Max. 60°C, Class H: Max. 183°C

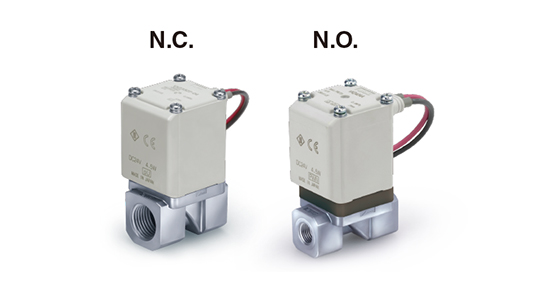

Valve type
