Regulators
Regulator with Backflow Function AR□K-D
-
・The regulator with backflow function incorporates a mechanism that exhausts the air pressure in the outlet side quickly.
・Easy to handle
Easy to hold when unlocked

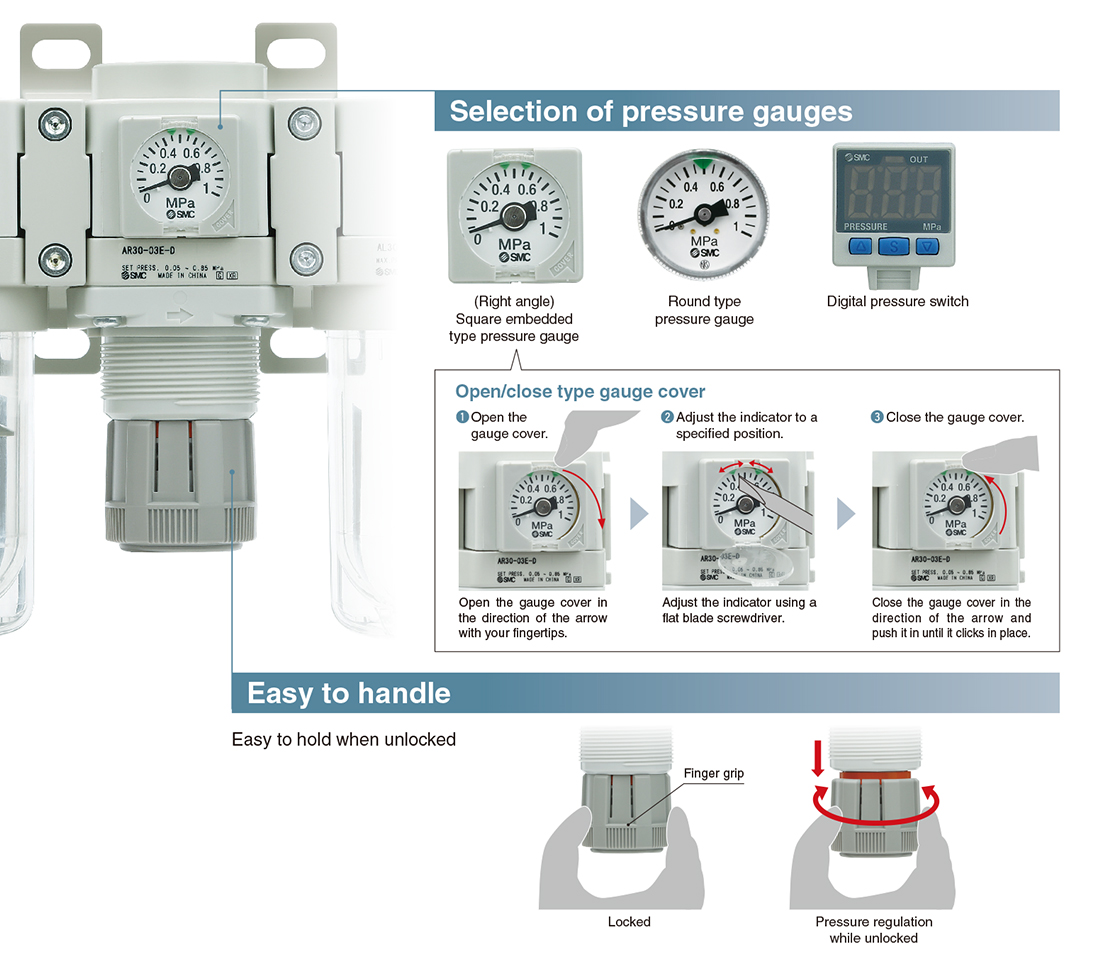

・Selection of pressure gauges
Square embedded type pressure gauge, Round type pressure gauge,
Digital pressure switch
・Interchangeability is maintained.
The mounting pitch for panel mounting is interchangeable with the AR(K)-B.
The brackets and set nuts are the same for both existing and new products.
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| AR20K to 60K-D | 1/8，1/4，3/8，1/2，3/4，1 | 0.05 to 0.85 0.02 to 0.2 |
Features
Modular Design with Uniform Body Style

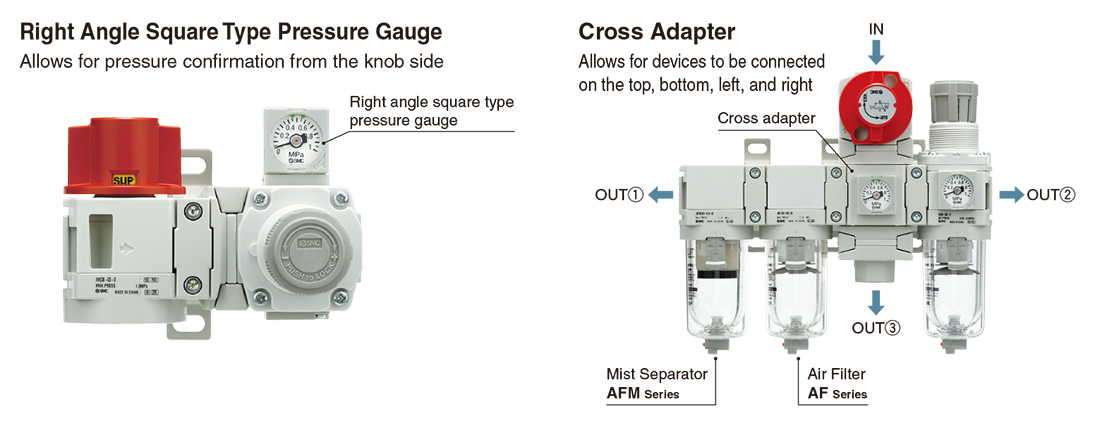

A right angle square type pressure gauge and a cross adapter attachment have been added. New

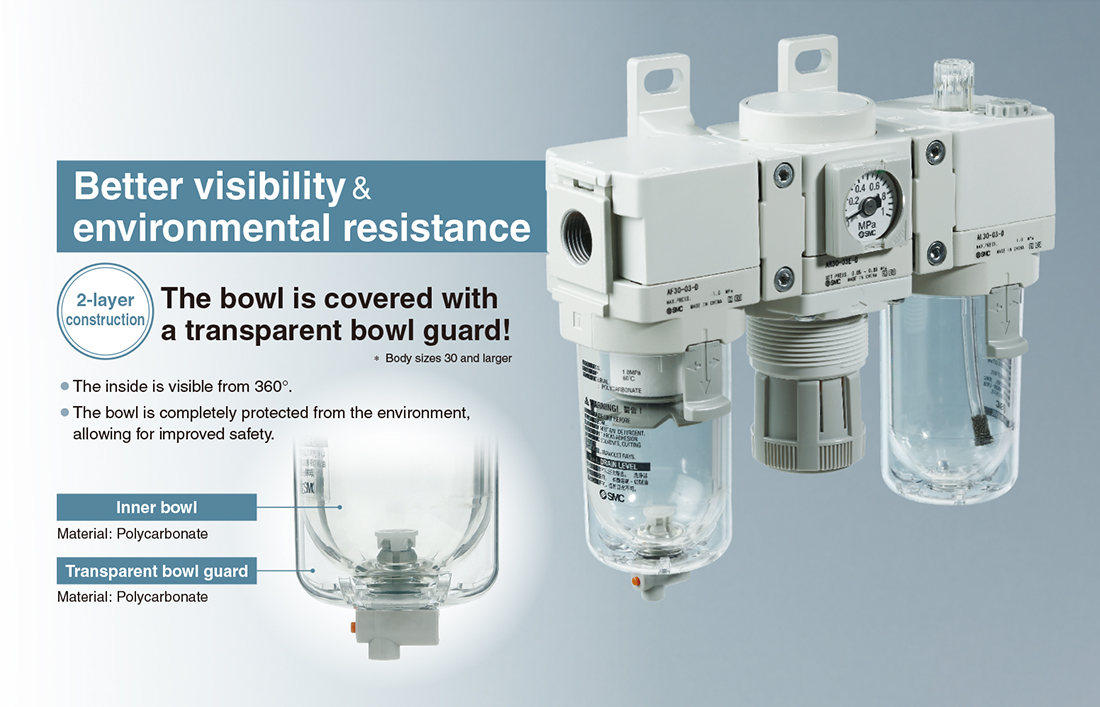

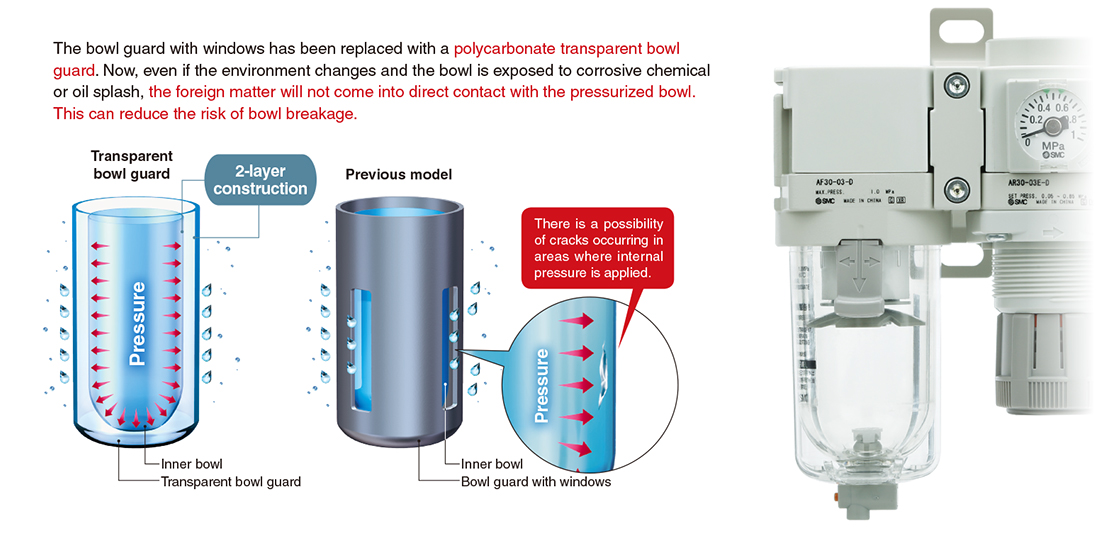

Transparent bowl guard
Better environmental resistance: The transparent bowl guard protects the inner bowl!

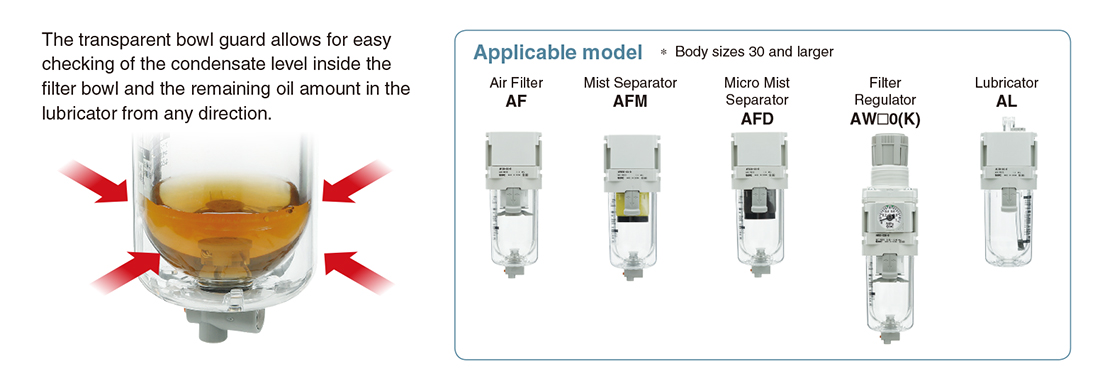

Better visibility: 360°
-
No tools are required.

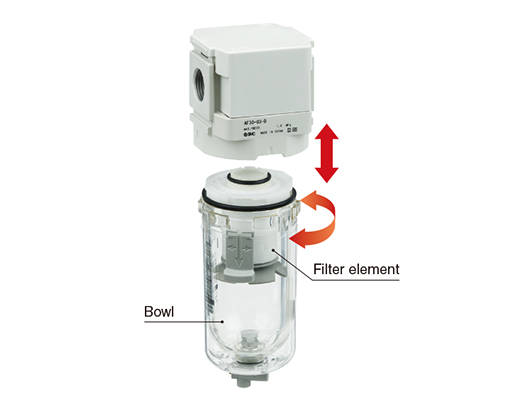

Easier replacement of the element
* AF20-D to AF40-D only
Selection of pressure gauges, Easy to handle
Mounting (Single unit)
・The mounting pitch for panel mounting is interchangeable between the AR20(K)-D to AR40(K)-06-D and the AR(K)-B series and between the AW20(K)-D to AW40(K)-06-D and the AW(K)-B series.
The brackets and set nuts are the same for both existing and new products.

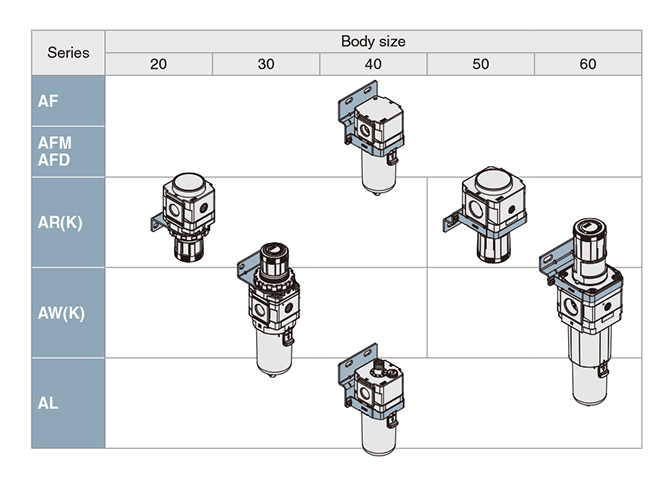

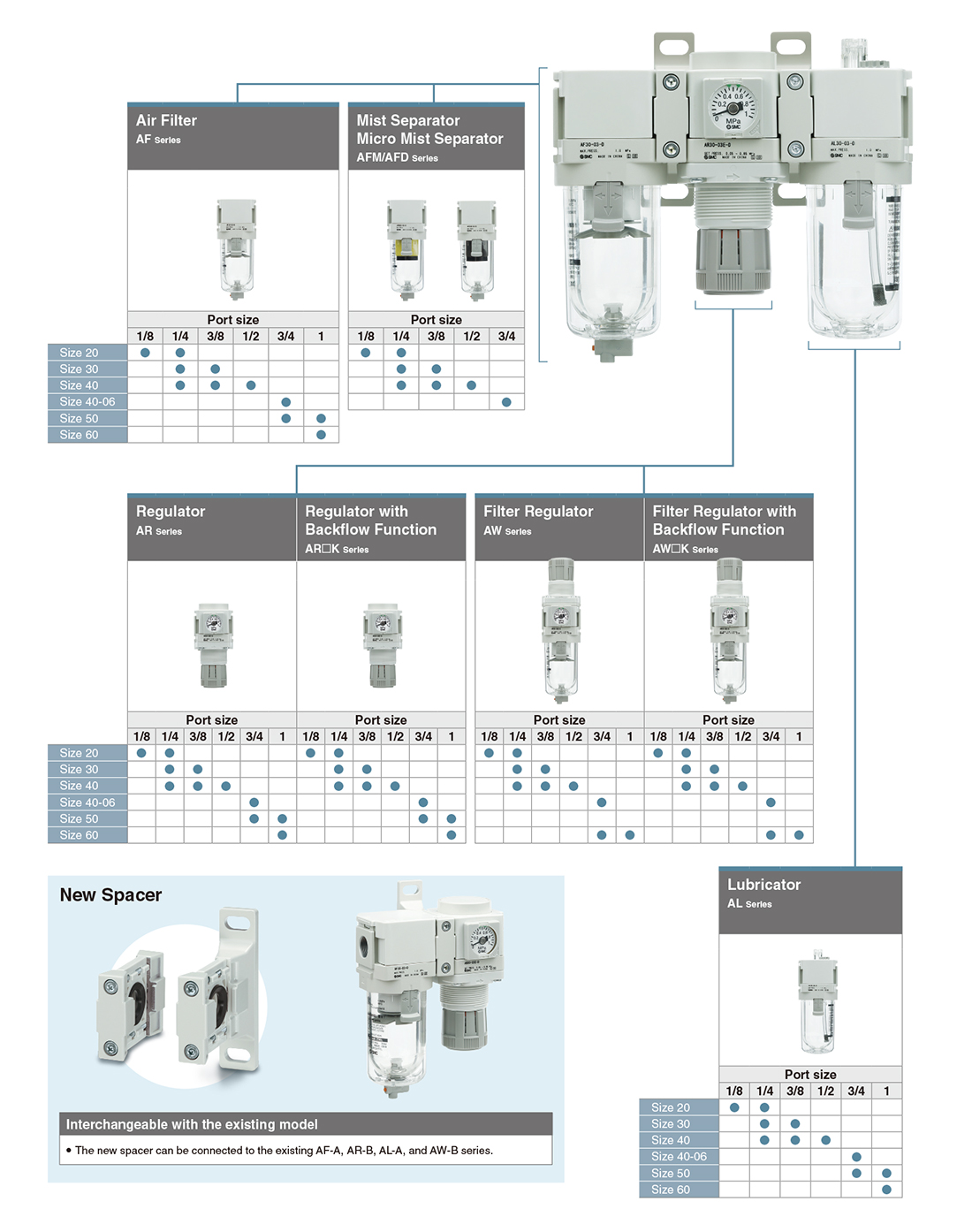

Series Configuration

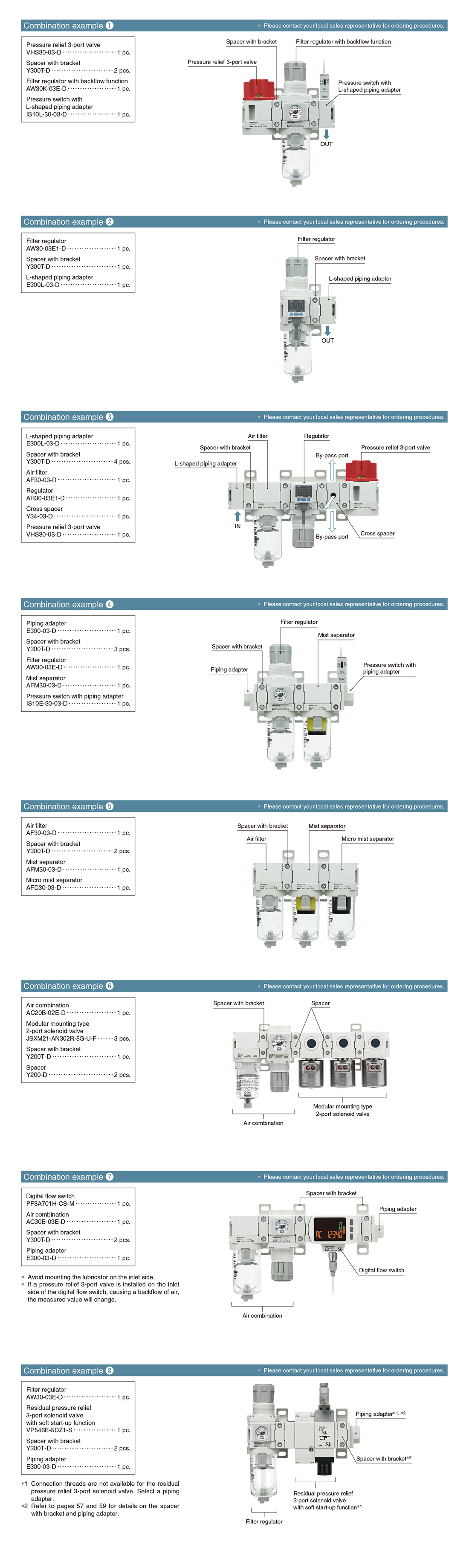

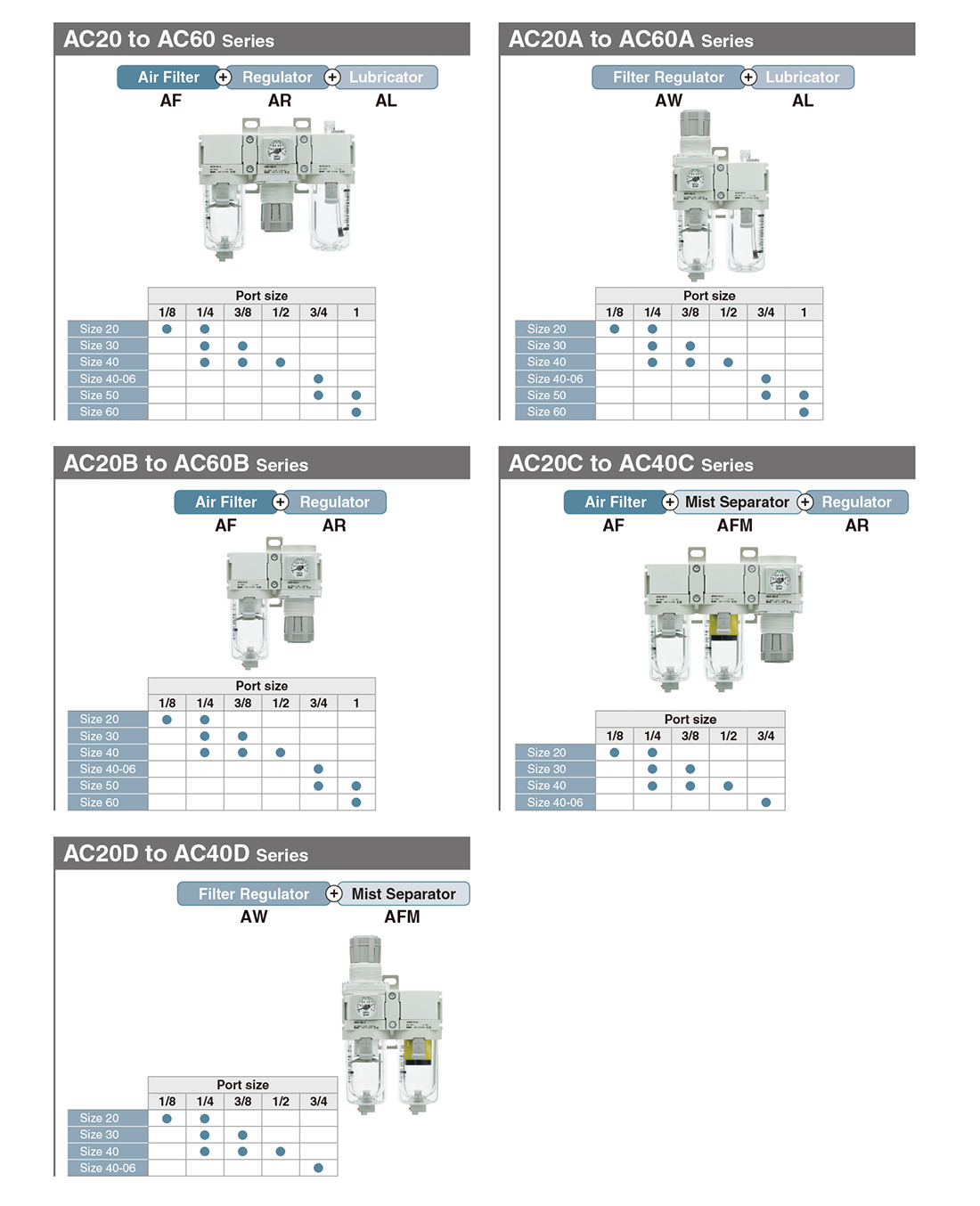

Table of Modular F.R.L. Unit Combinations for AC Assembly

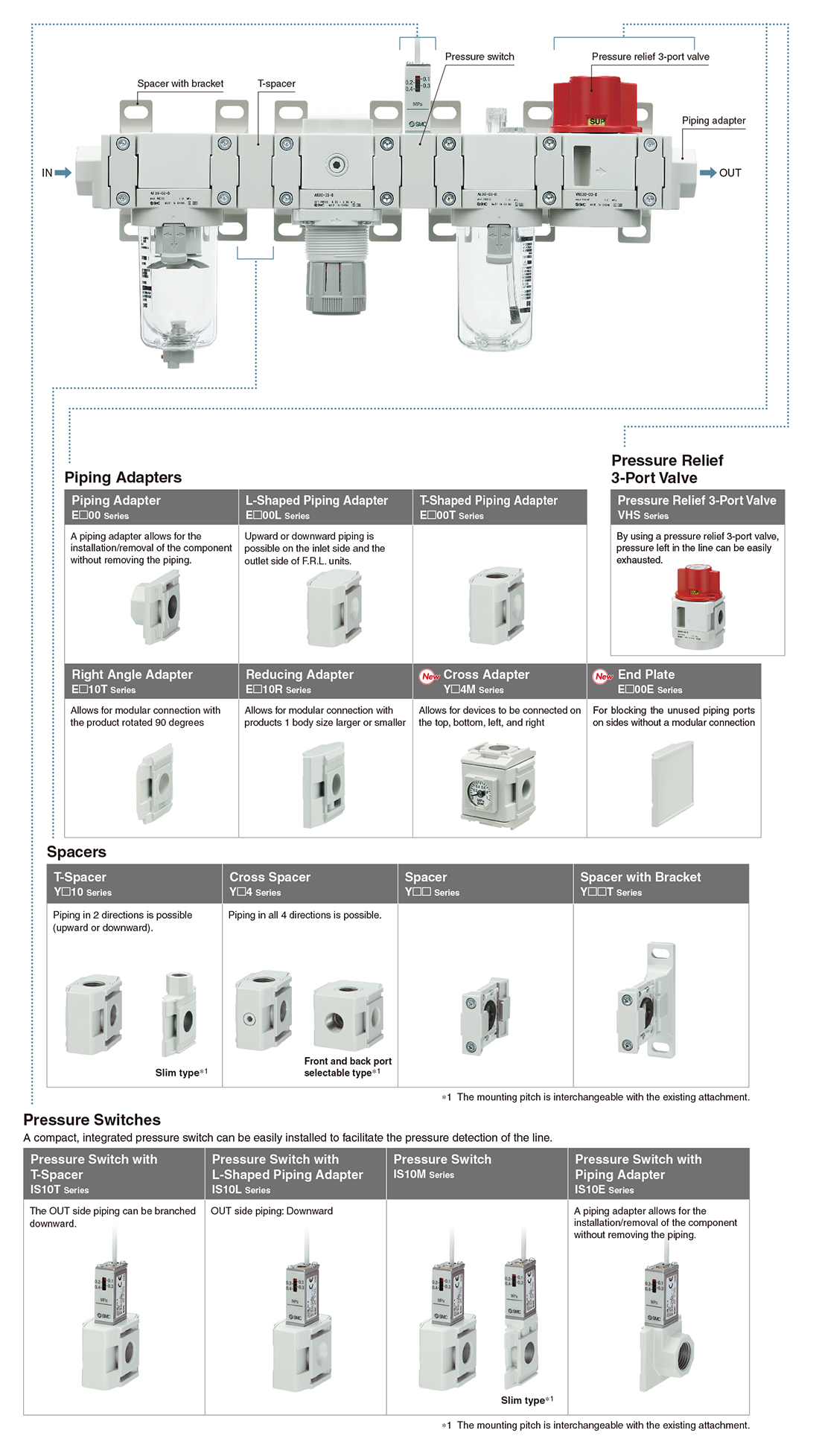

Attachment List

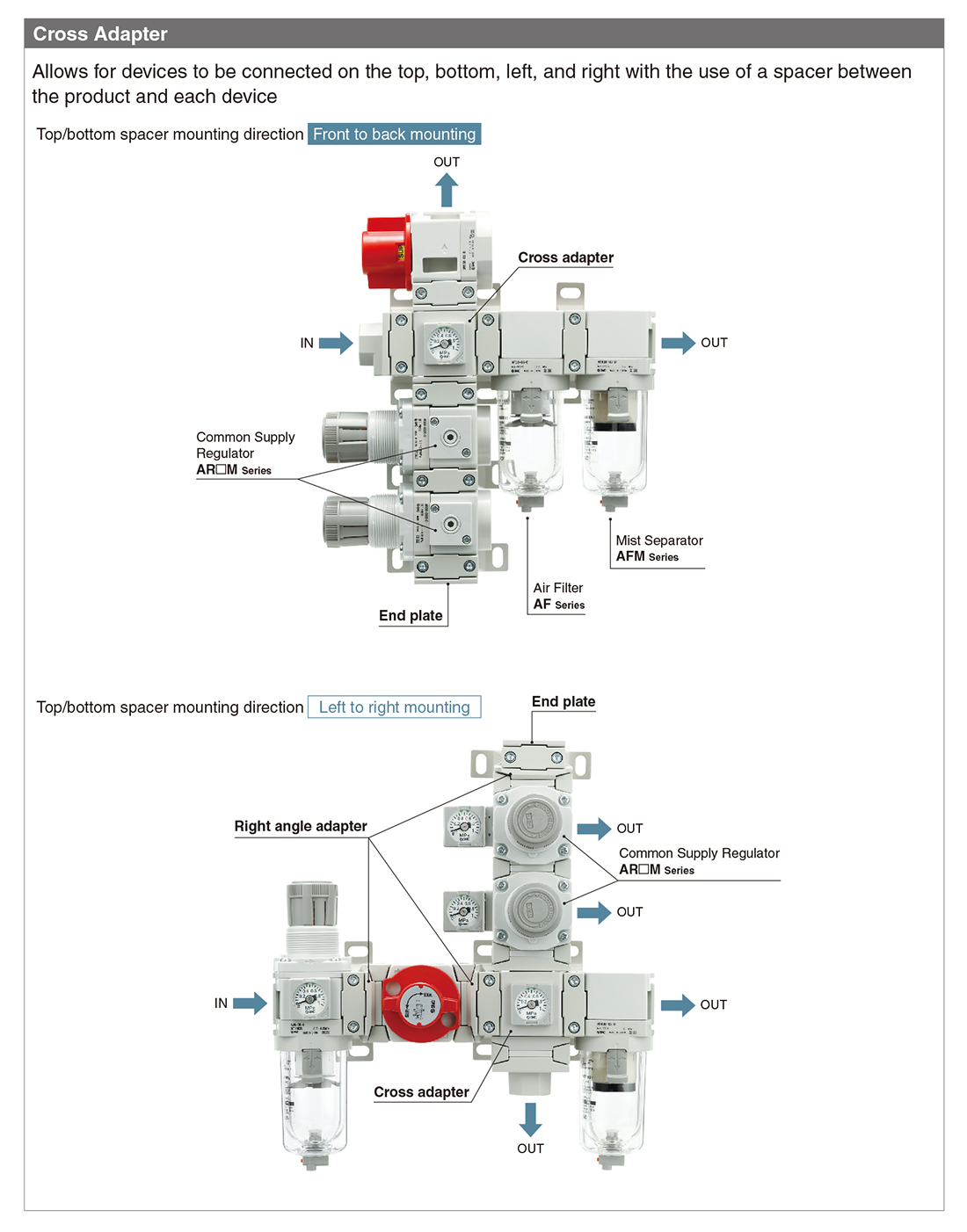

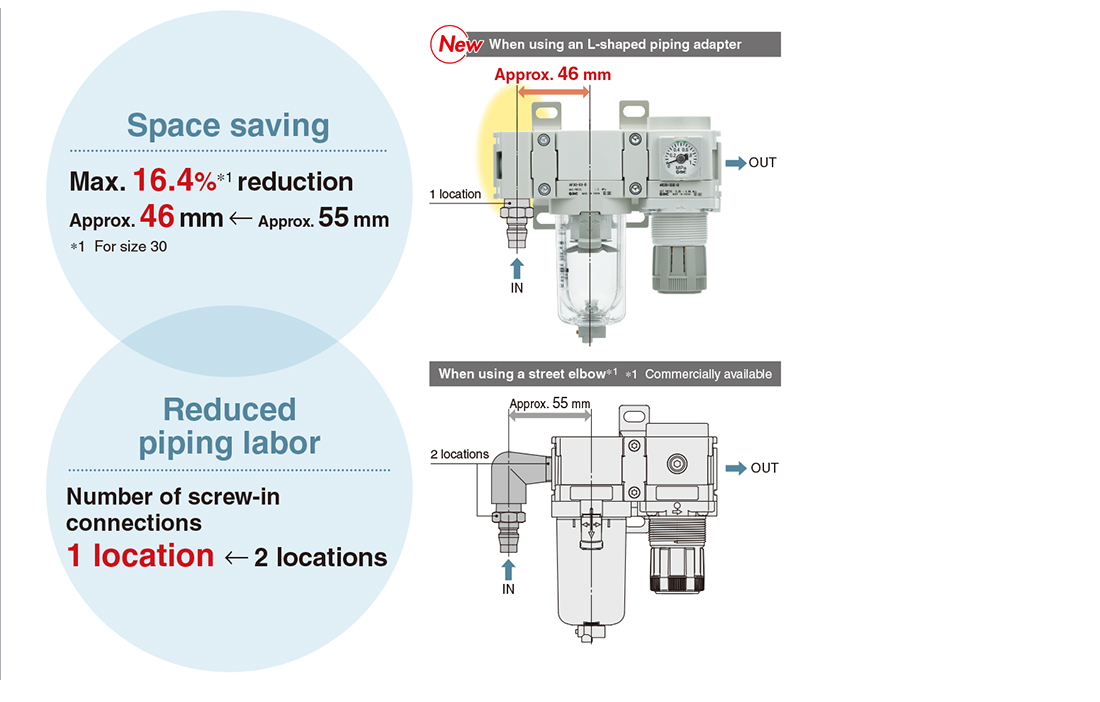

Space saving/Reduced piping labor

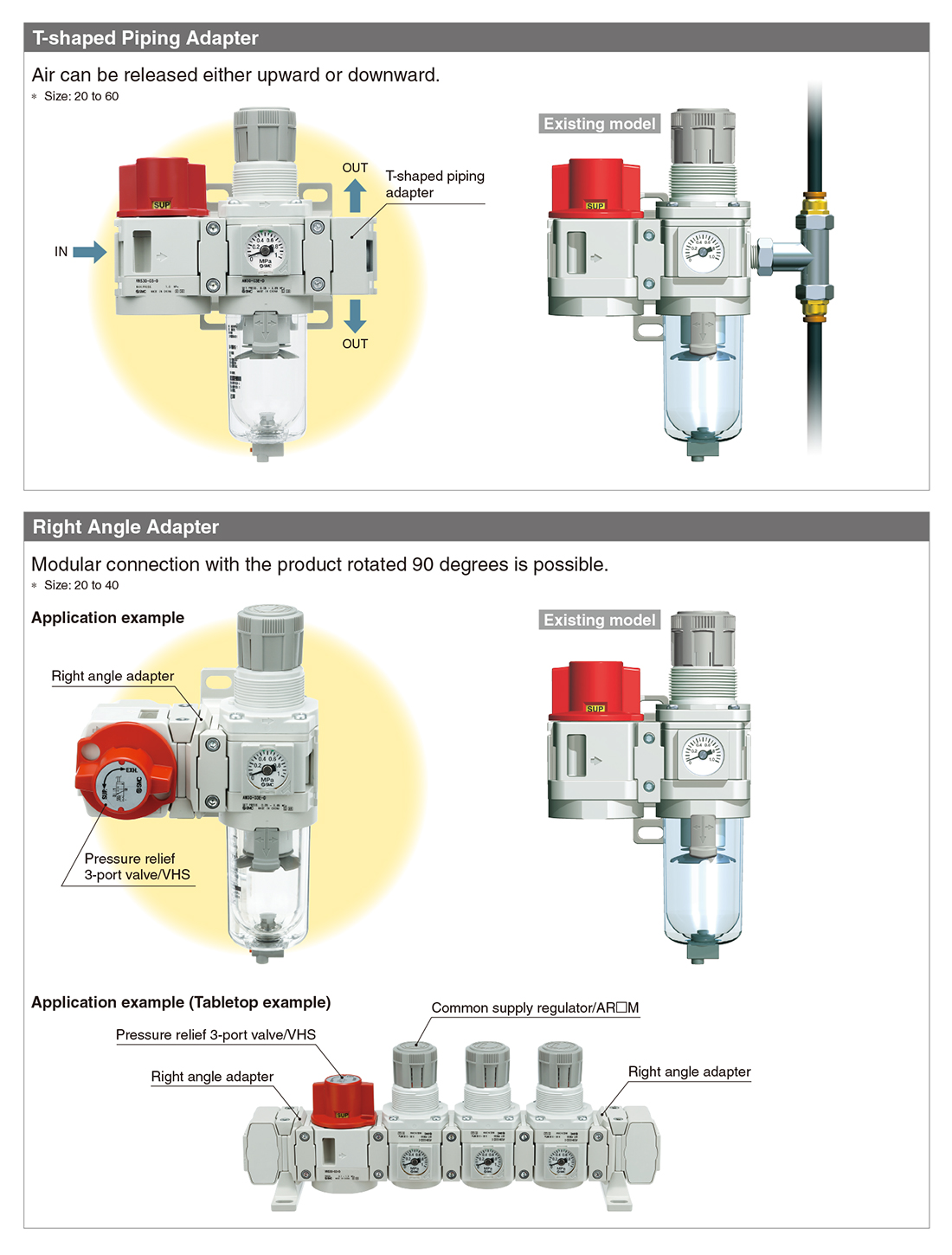

Improved piping design flexibility

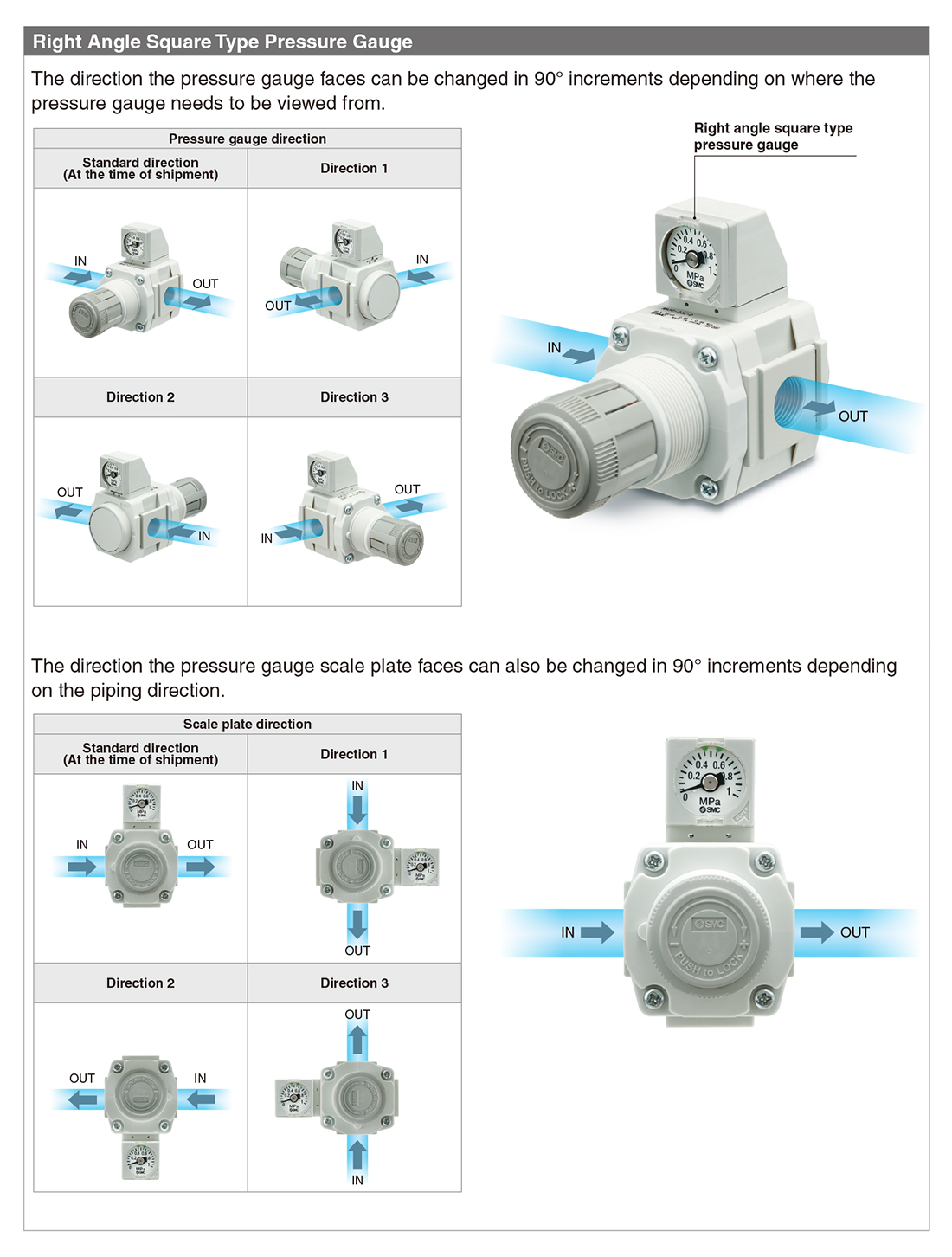

The direction the pressure gauge faces can be changed freely.
Improved piping design flexibility

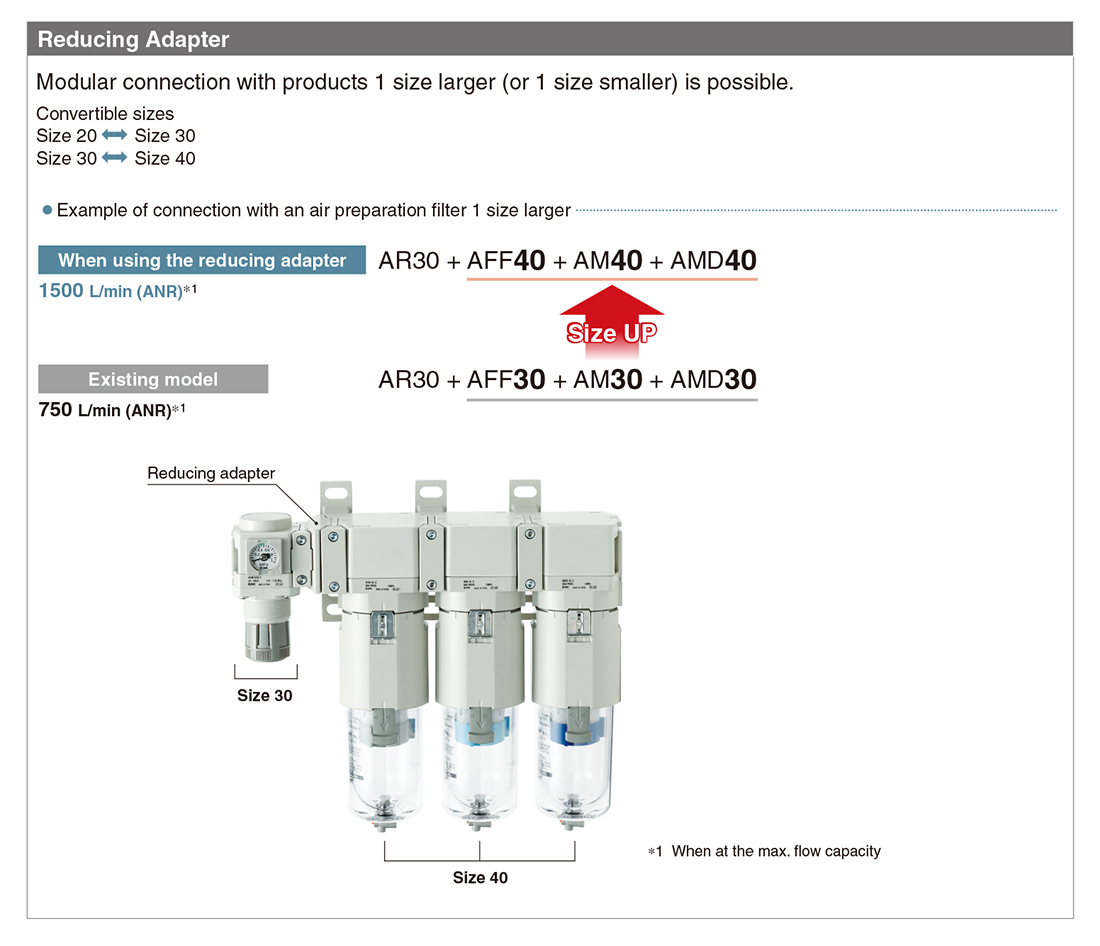

Size conversion is possible
・Flow capacity UP
・Extended maintenance cycle
Simple Specials System
A system designed to respond quickly and easily to your special ordering needs
Please contact your local sales representative for more details.
Examples of Simple Specials
