Electro-Pneumatic Regulators

Plug-in Electro-Pneumatic Regulator / Manifold Type IITV23

    ・Connects the electro-pneumatic regulator and the fieldbus device to
    　the same manifold. This results in reduced wiring, less man hours for
    　piping and a more compact size.
    ・Compact
    　Installation area: 20% reduction, Occupied volume: 10% reduction
    ・Gain setting
    ・Sensitivity setting
    ・Remote control and monitoring are available.
Safety Instructions　F.R.L. Units/Precautions　Series Variations/Pressure Control Equipment
Green Procurement (RoHS)

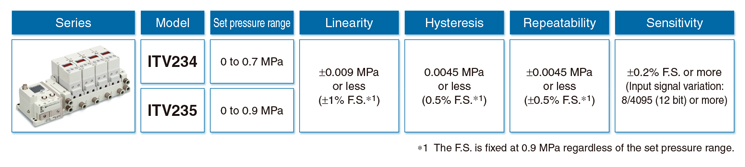

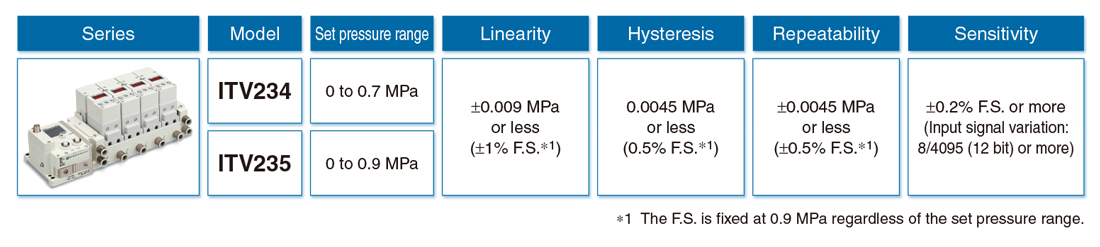

SeriesPort sizeSet pressure (MPa)
ITV234
Electro-pneumatic
regulator for manifold		ø10 One-touch fitting0 to 0.7
ITV235
Electro-pneumatic
regulator for manifold		ø10 One-touch fitting0 to 0.9

Features

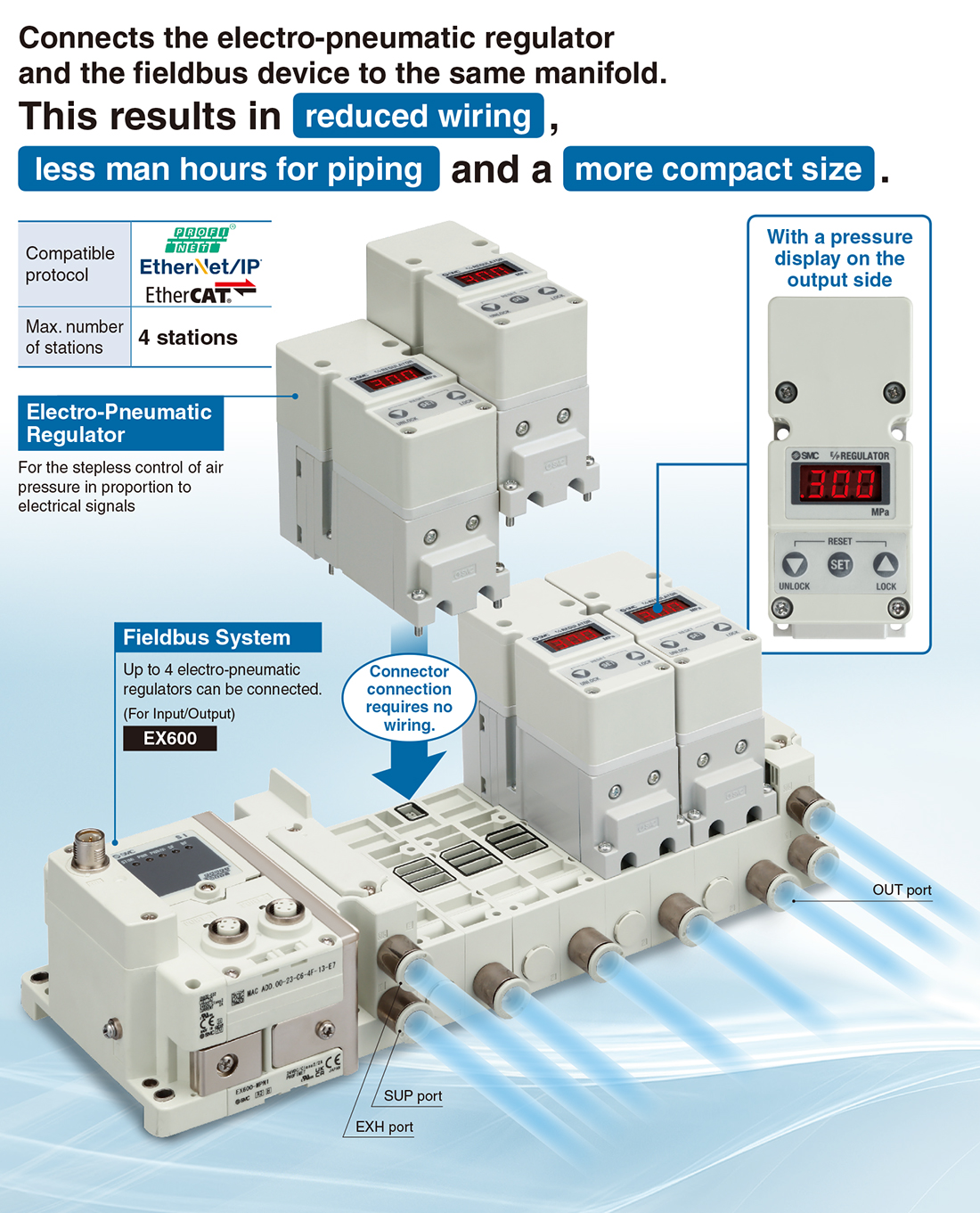

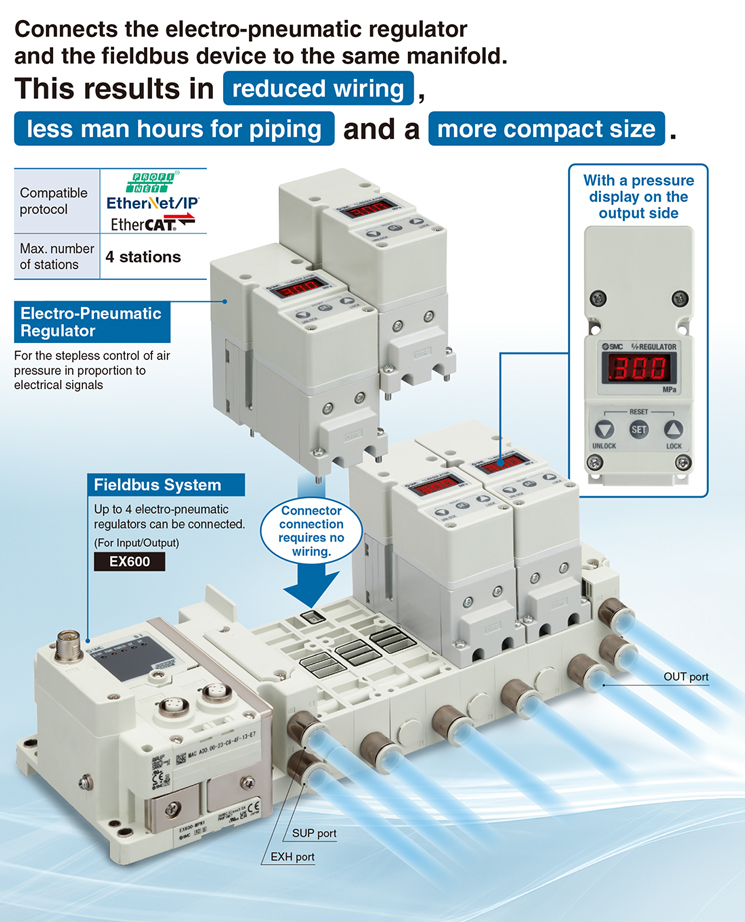

Connects the electro-pneumatic regulator and the fieldbus device to the same manifold. This results in reduced wiring, less man hours for piping and a more compact size.

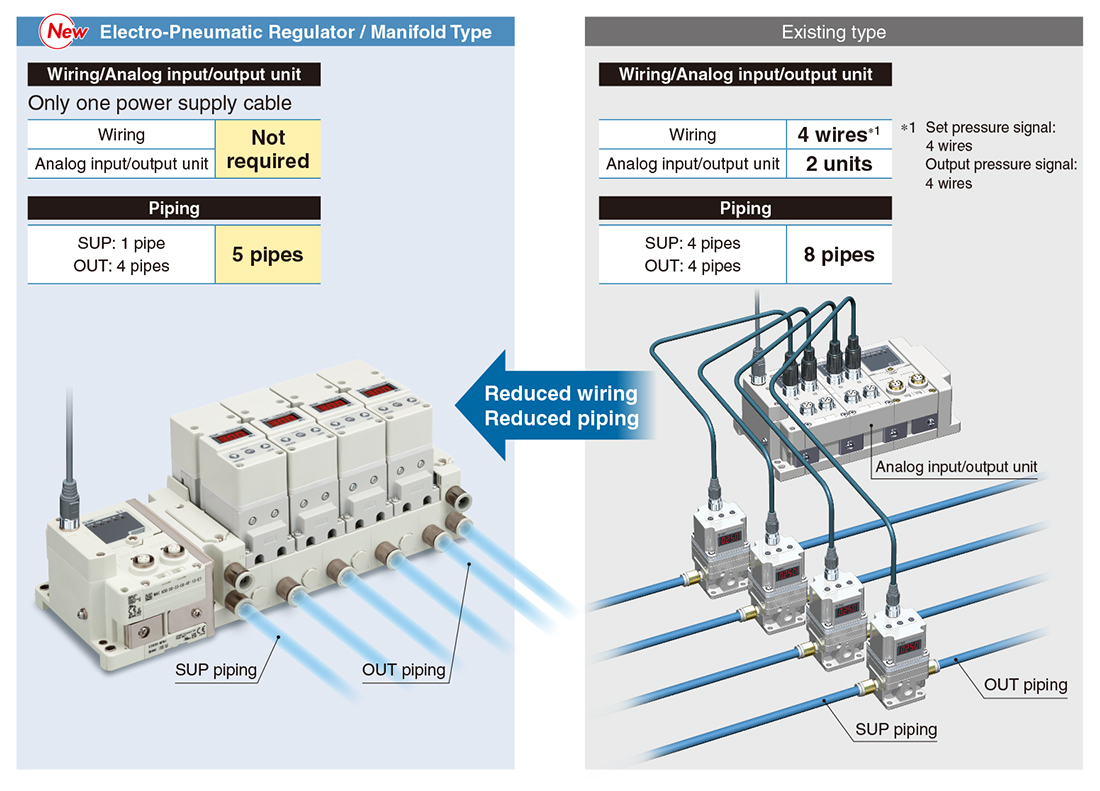

Wiring/piping labor reduction

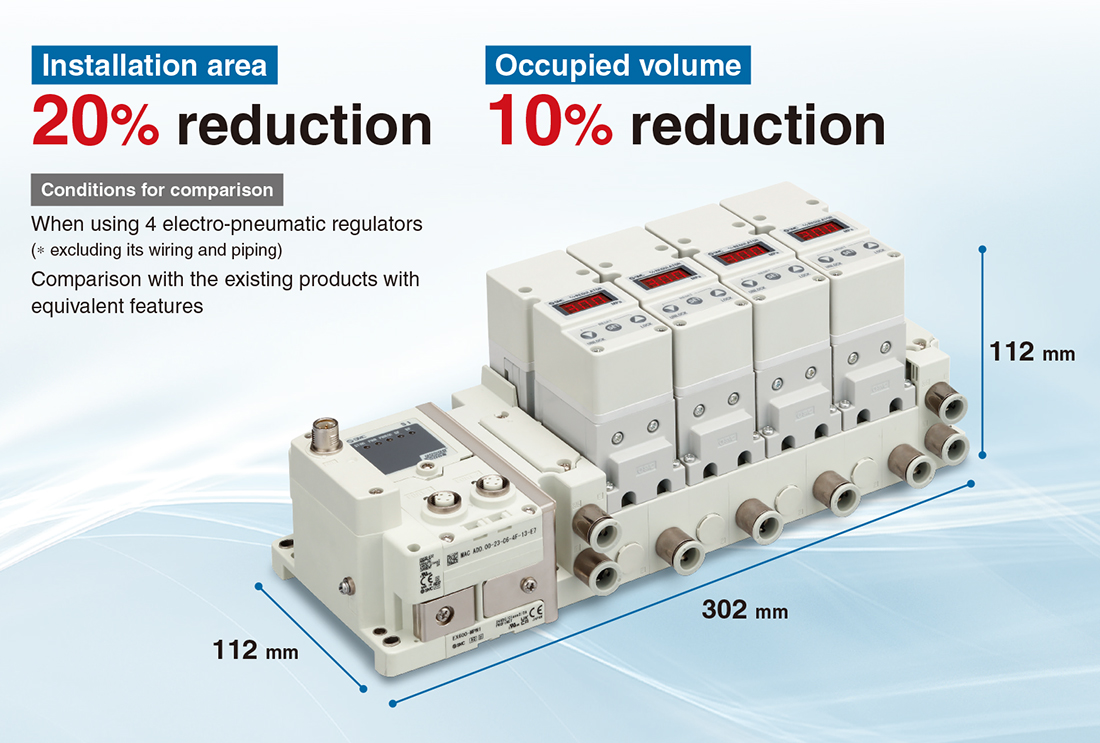

Compact

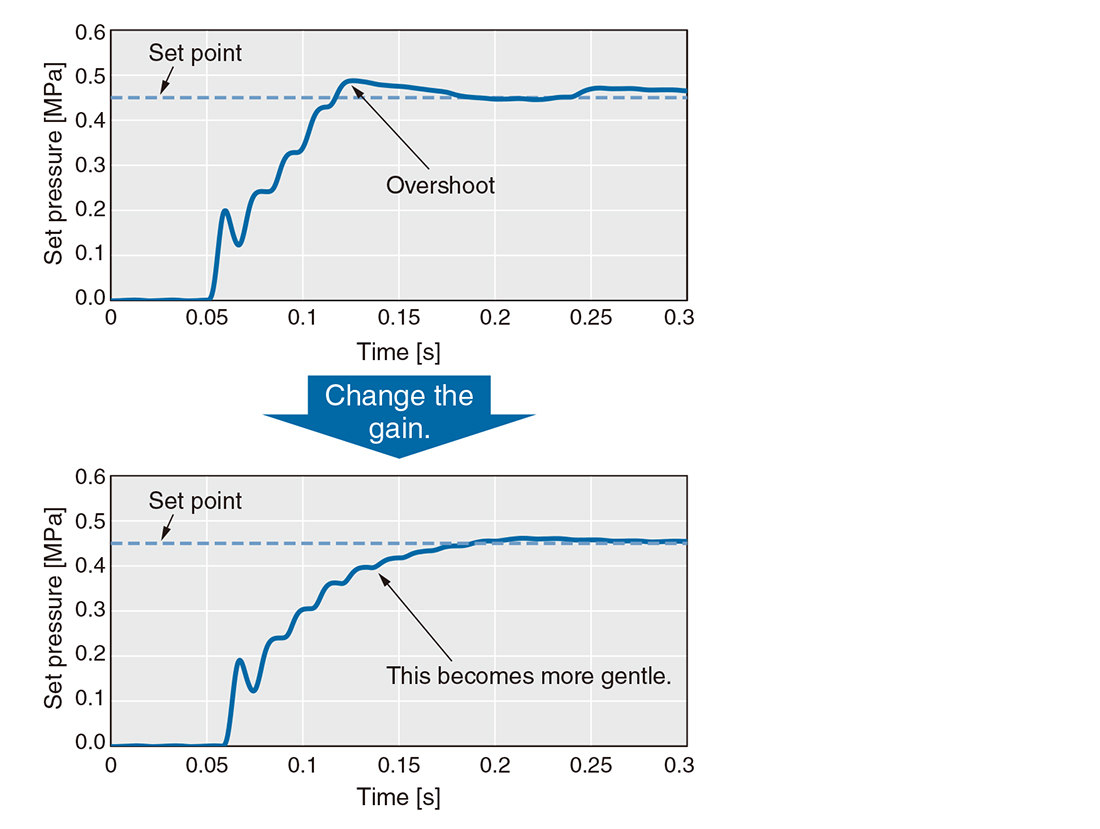

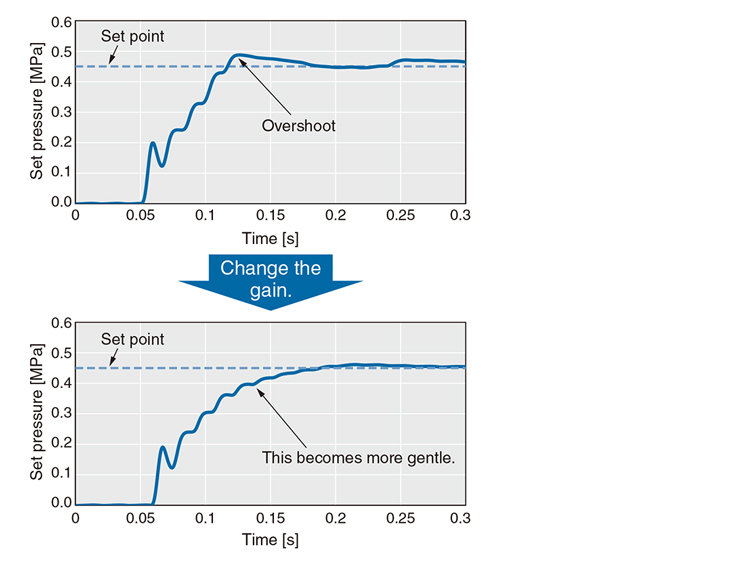

Gain setting

This product can change the response with this gain setting.

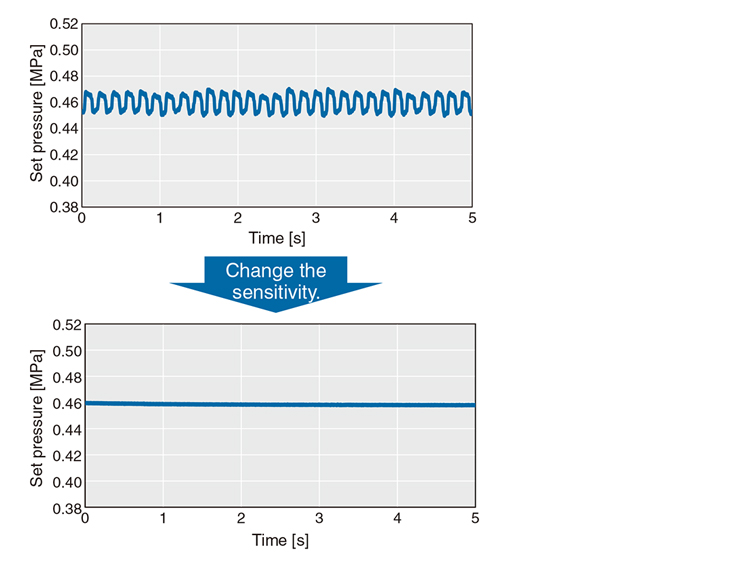

Sensitivity setting

When the sensitivity is adjusted, the correction operation of pressure changes.

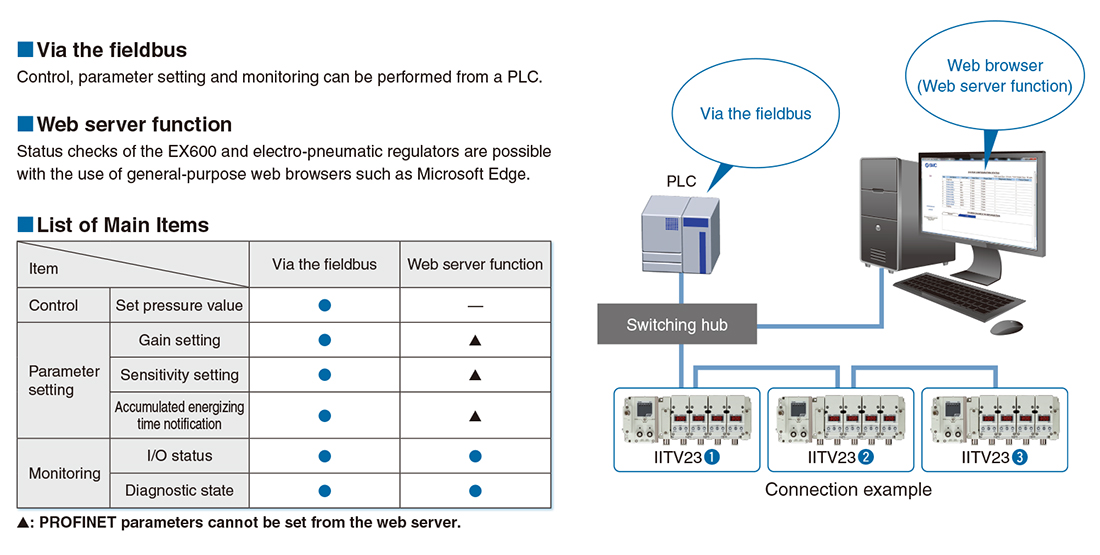

Remote control and monitoring are available.

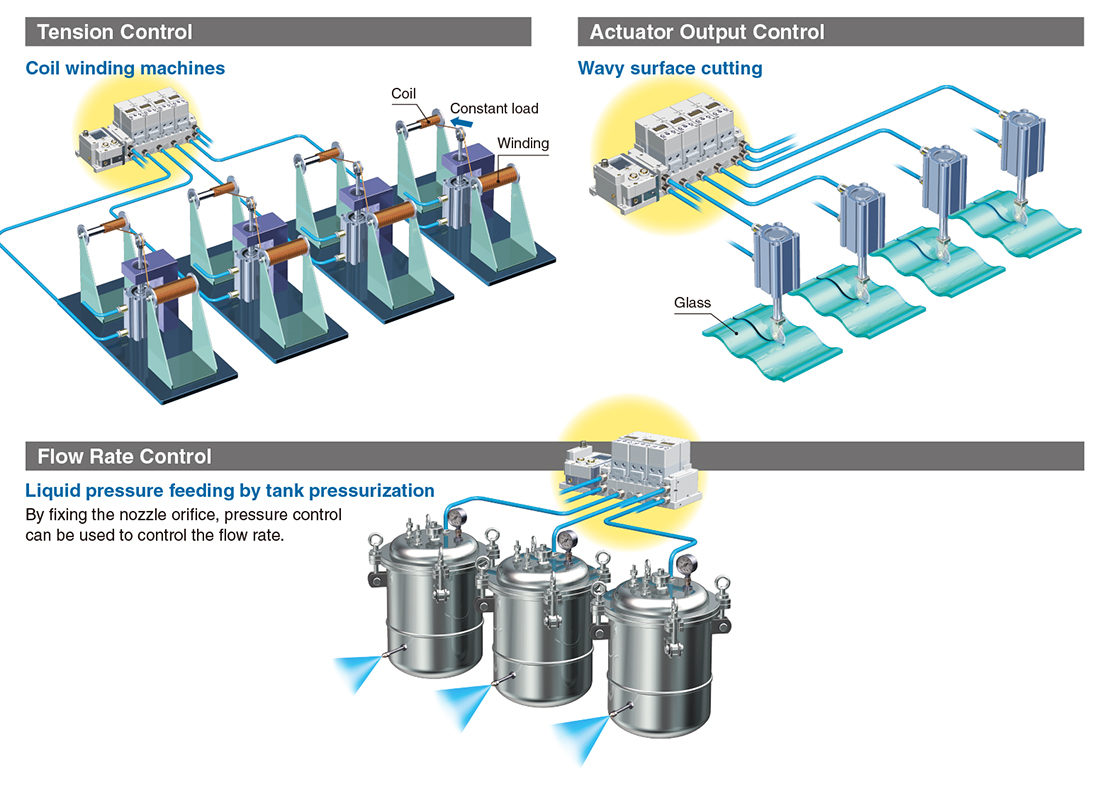

Applications

Variations
