[Model with Residual Pressure Release Function] Pilot Check Valve/Compact Type AKP
-
・Model with residual pressure release function

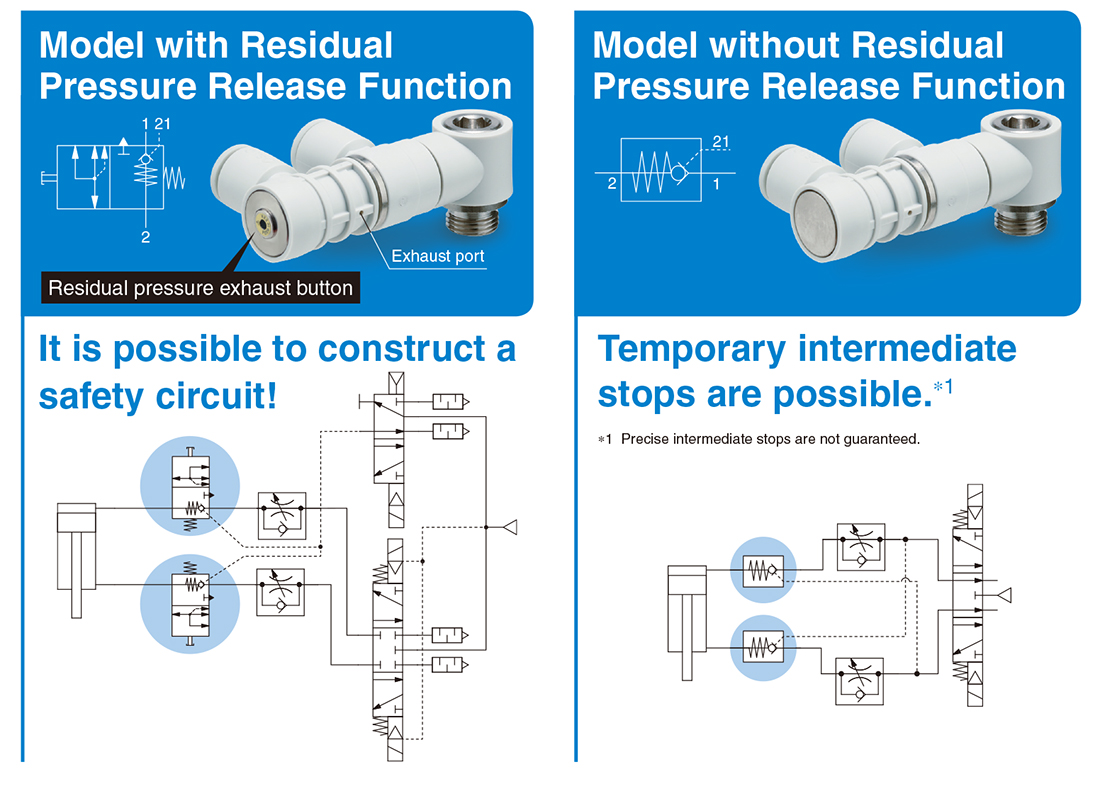

It is possible to construct a safety circuit!
・Model without residual pressure release function
Temporary intermediate stops are possible.*
* Precise intermediate stops are not guaranteed.
・Vertical and horizontal types are available, which can be selected
depending on the installation conditions.
・Improved piping design flexibility (360°-rotation type)
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Model with residual pressure release function Pilot check valve Horizontal type | AKP-□B□E | M5×0.8, 10-32UNF 1/8, 1/4, 3/8, 1/2 （R, NPT, G） | φ4, φ6, φ8, φ10, φ12 | φ5/32",φ1/4",φ5/16" |
| Model with residual pressure release function Pilot check valve Vertical type | AKP-□A□E | M5×0.8, 10-32UNF 1/8, 1/4, 3/8, 1/2 （G） | φ4, φ6, φ8, φ10, φ12 | - |
| Model without residual pressure release function Pilot check valve Horizontal type | AKP-□B□ | M5×0.8, 10-32UNF 1/8, 1/4, 3/8, 1/2 （R, NPT, G） | φ4, φ6, φ8, φ10, φ12 | φ5/32",φ1/4",φ5/16" |
| Model without residual pressure release function Pilot check valve Vertical type | AKP-□A□ | M5×0.8, 10-32UNF 1/8, 1/4, 3/8, 1/2 （G） | φ4, φ6, φ8, φ10, φ12 | - |
Features
Features
Variations

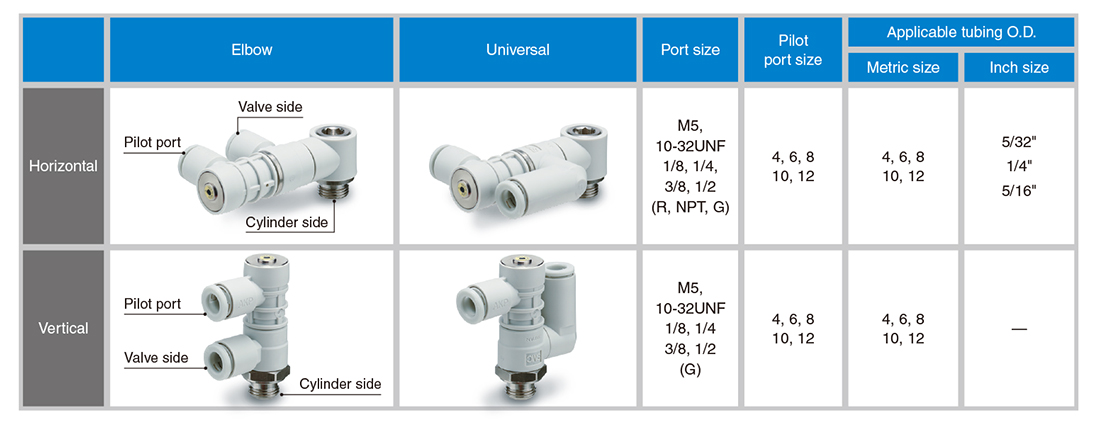

Vertical and horizontal types are available, which can be selected depending on the installation conditions.

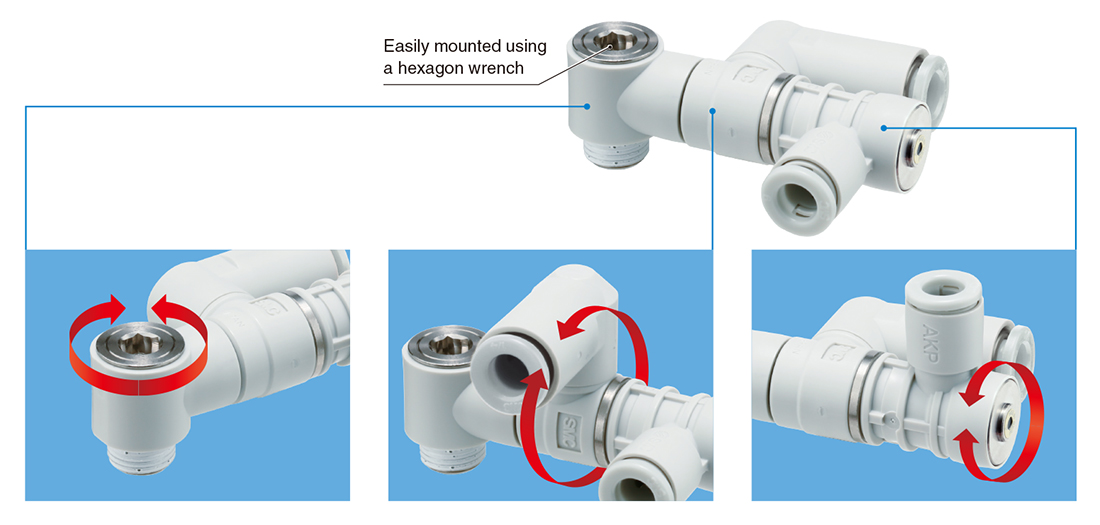

Improved piping design flexibility (360°-rotation type)

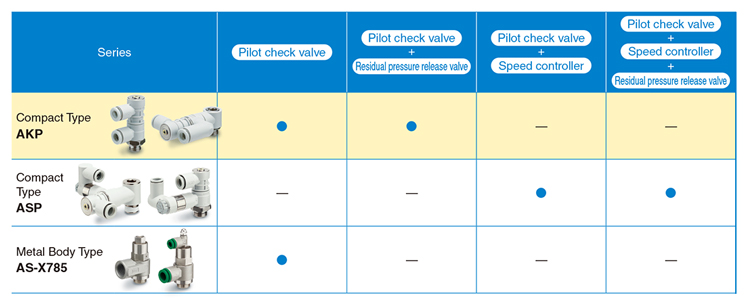

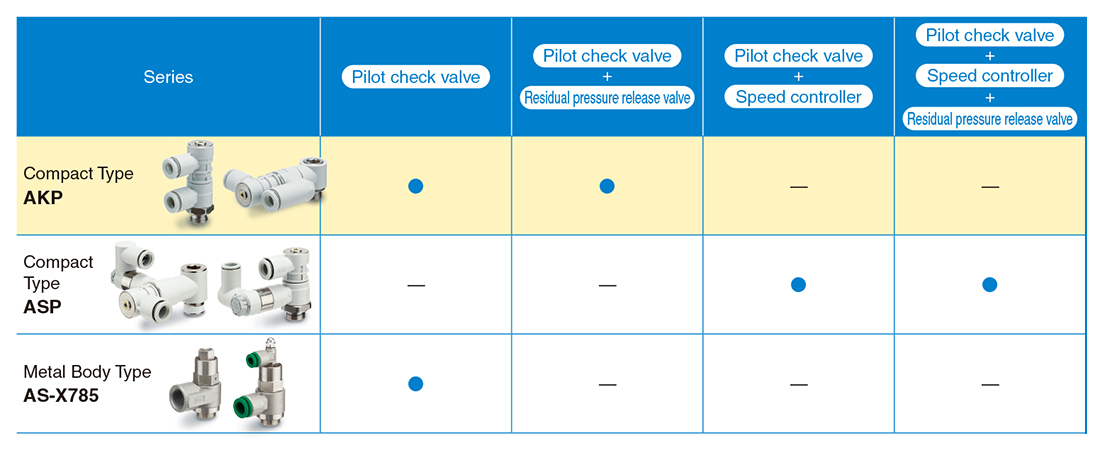

Pilot Check Valve Variations by Function
