Speed Controllers for Low Speed Control

Compact Type Speed Controller with Indicator JAS-SML/SCL

    ・Improvement of resolution has made it possible to make fine
    　adjustment.

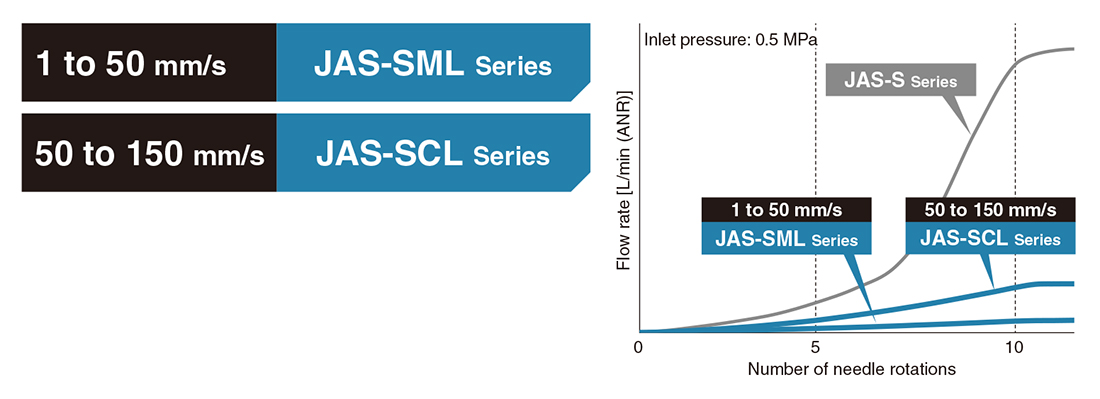

    　1 to 50 mm/s: JAS-SML Series
    　50 to 150 mm/s: JAS-SCL Series

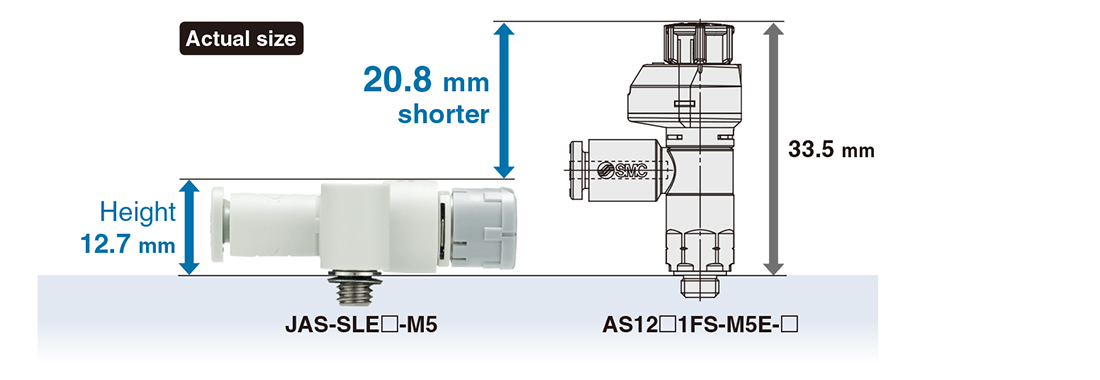

    ・Height: Max. 20.8 mm shorter
    ・Flow rate can be controlled numerically with the indicator window.

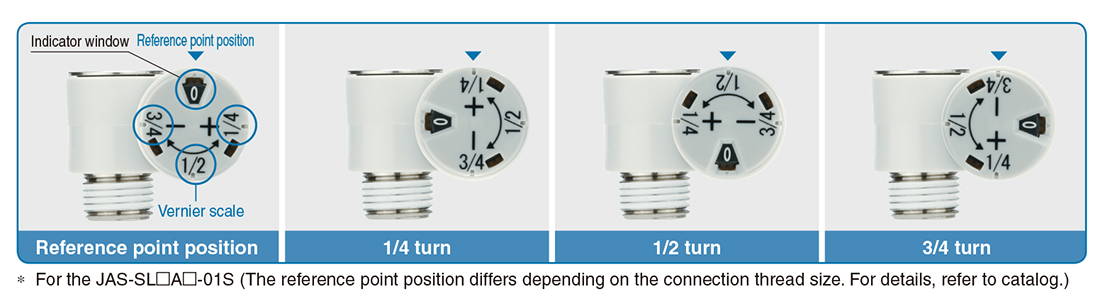

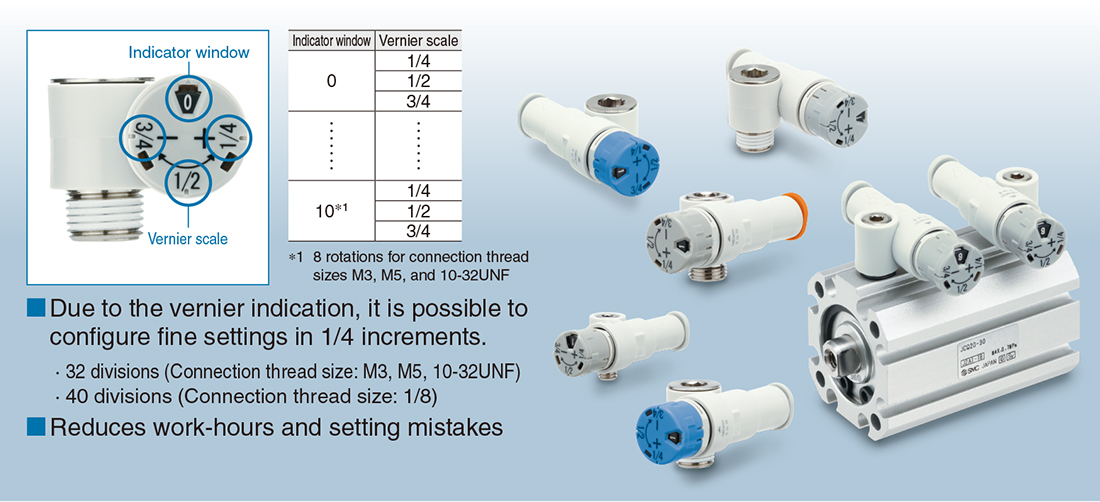

    　Due to the vernier indication, it is possible to configure fine settings in 1/4
    　increments.
    　Reduces work-hours and setting mistakes
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)
TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Speed controller with indicator
Elbow type		JAS-SML
JAS-SCL		M3×0.5
M5×0.8
10-32UNF
R, NPT, G 1/8		φ3.2，φ4，φ6φ1/8''，φ5/32''，φ1/4''

Features

Improvement of resolution has made it possible to make fine adjustment.

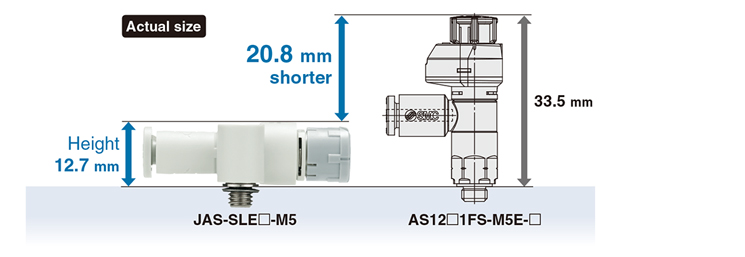

Height: Max. 20.8 mm shorter

Flow rate can be controlled numerically with the indicator window.

A vernier scale equipped at the upper part of the knob allows you to make a fine setting in units of quarter.
