Speed Controllers for General Purposes

Speed Controller with Compact Indicator AS-FSA

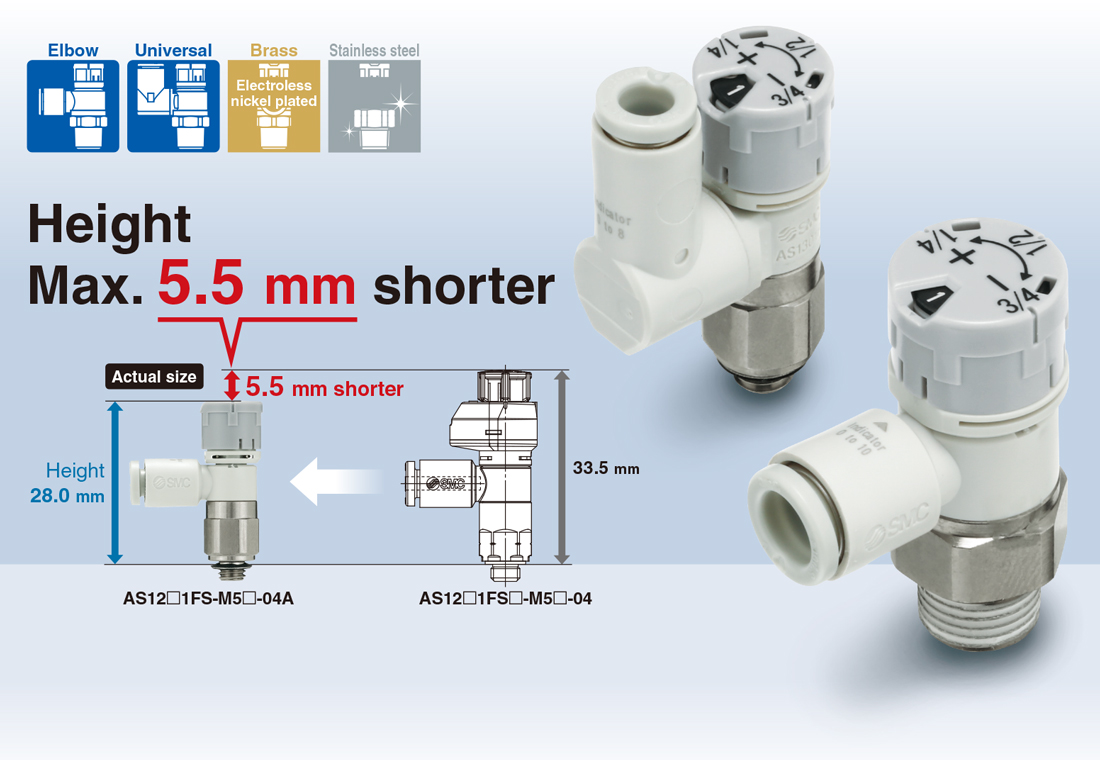

    ・Height: Max. 5.5 mm shorter

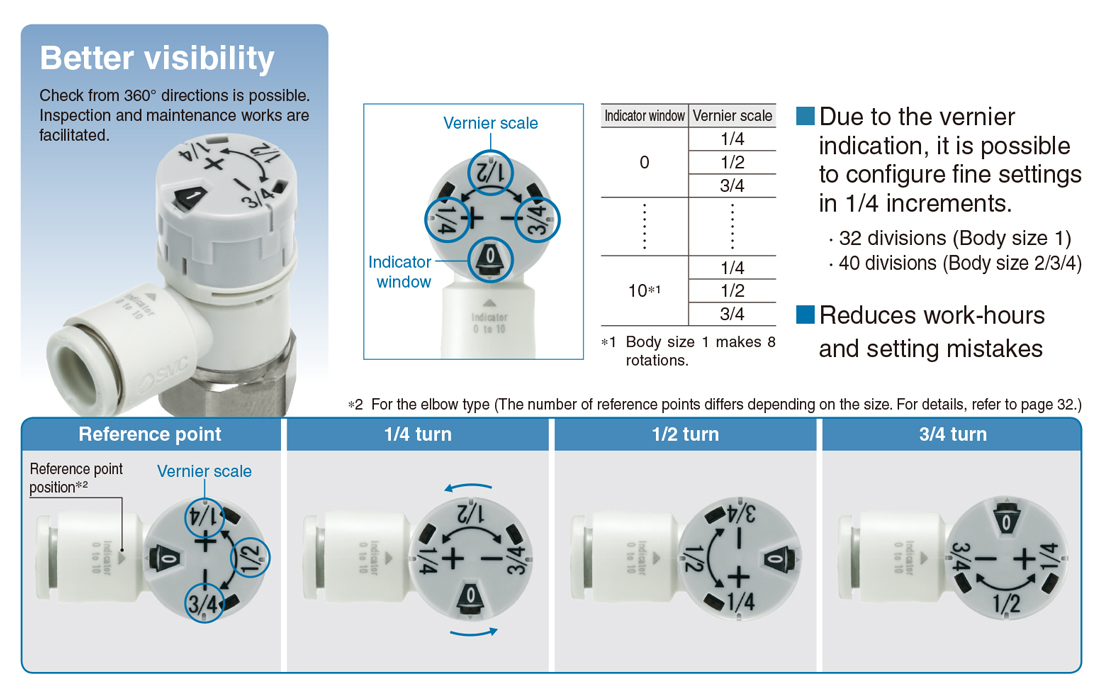

    ・Flow rate can be controlled numerically with the indicator window.
    　Due to the vernier indication, it is possible to configure fine settings in 1/4
    　increments.
    　Reduces work-hours and setting mistakes
    ・Better visibility
    　Check from 360° directions is possible.
    　Inspection and maintenance works are facilitated.
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)
TypeSeriesPort size on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch siz
Elbow typeAS12□1FSA to 42□1FSAM5×0.8
10-32UNF
R, NPT, G
1/8 to 1/2		φ2 to φ16φ1/8'' to φ1/2''
Universal typeAS13□1FSA to 43□1FSAM5×0.8
10-32UNF
R, NPT, G
1/8 to 1/2		φ2 to φ16φ1/8'' to φ1/2''

Features

Height: Max. 5.5 mm shorter

Flow rate can be controlled numerically with the indicator window.

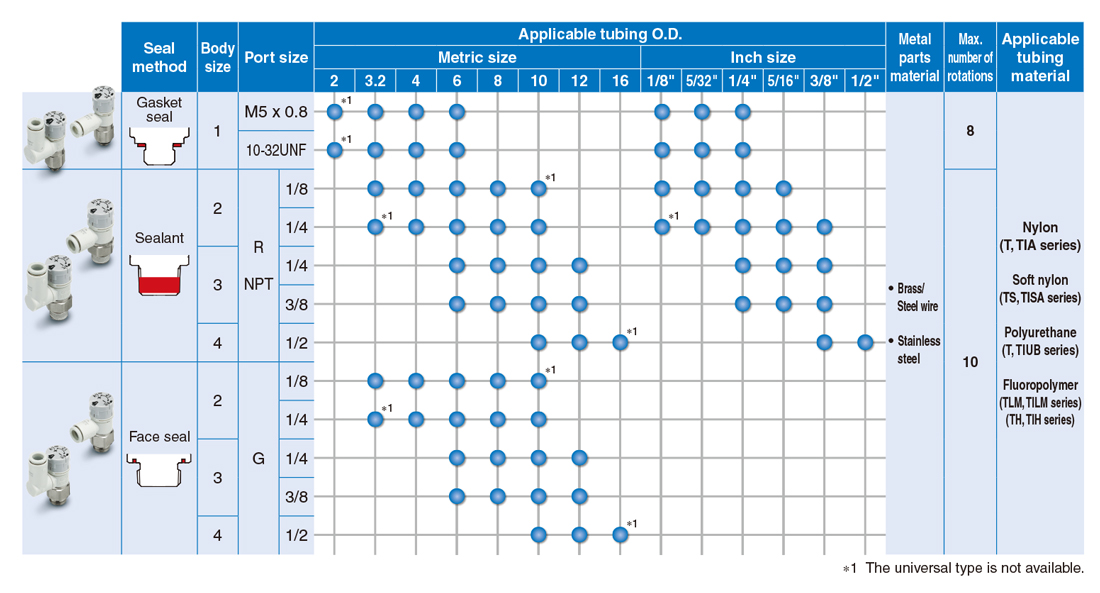

Series Variations

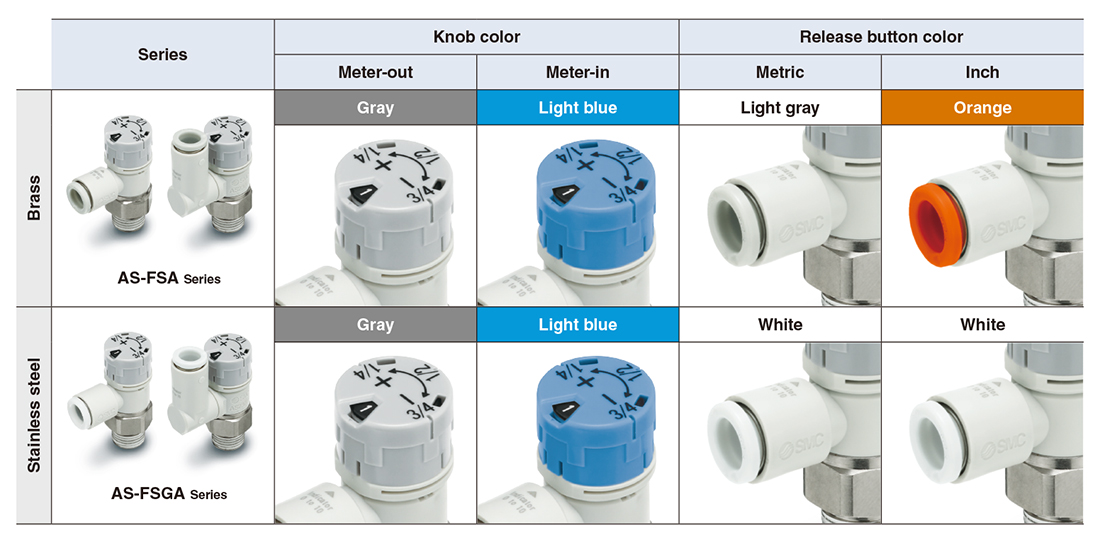

Easy identification of Product type
