Speed Controllers for General Purposes

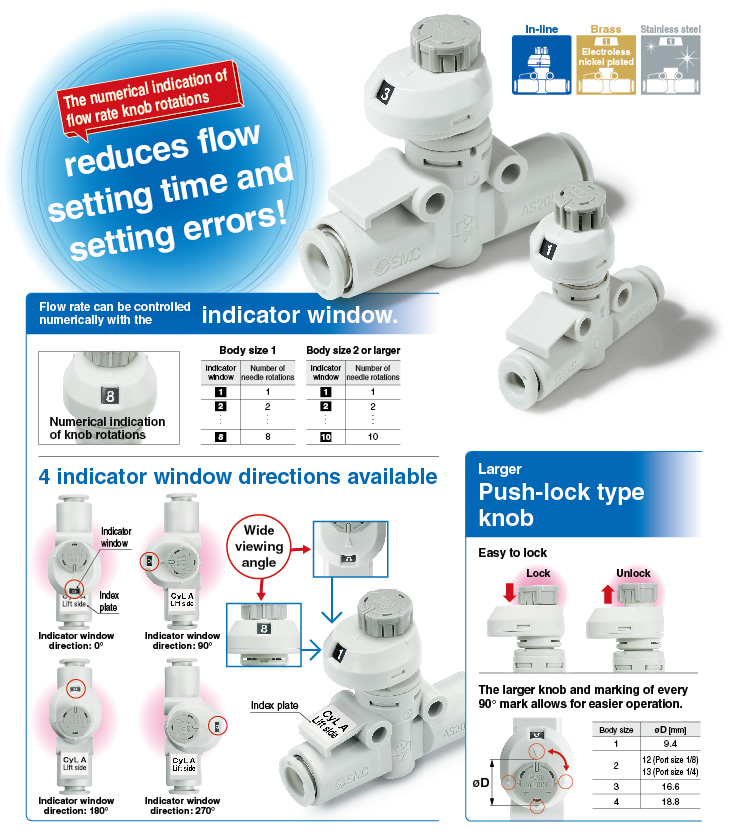

Speed Controller with Indicator/In-line Type AS-FS

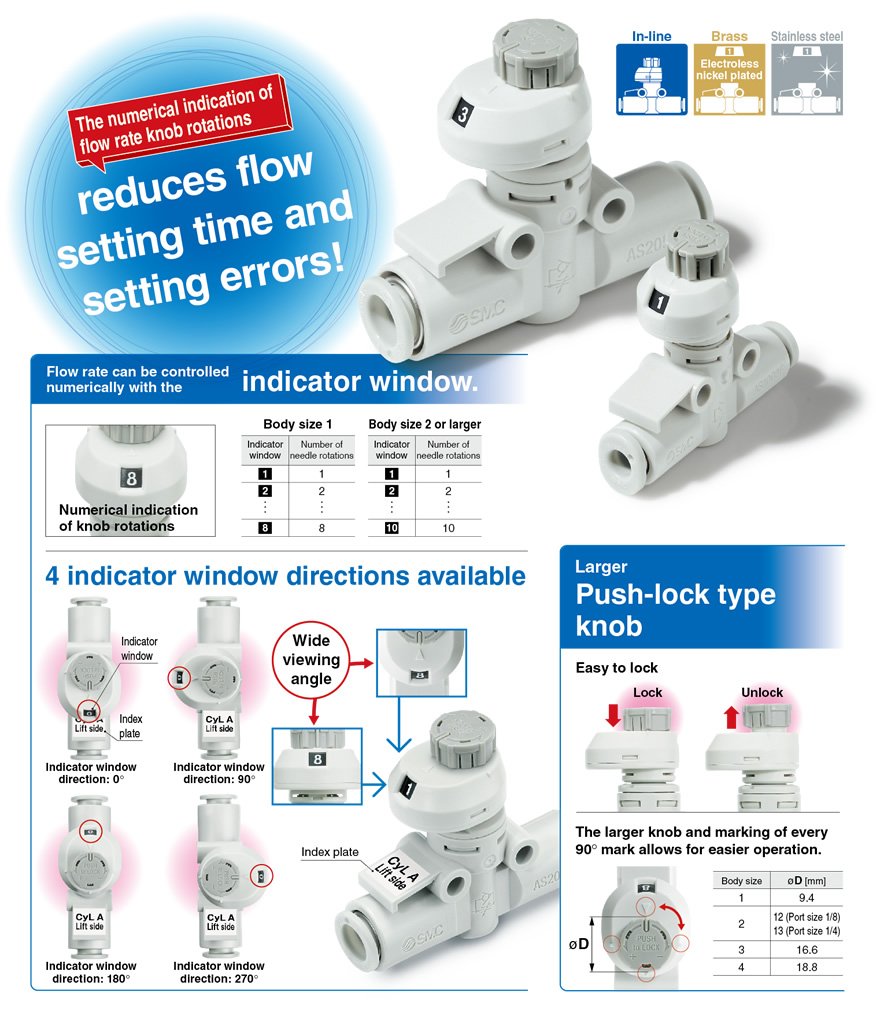

    ・The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors.
    　Flow rate can be controlled numerically with the indicator window.
    　4 indicator window directions are available.
    ・Larger push-lock type knob
    ・Improved reproducibility of flow rate
    ・Electroless nickel plated type is standard.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Flow Control Equipment/Precautions　Green Procurement (RoHS)
TypeSeriesPort size
on the
cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
In-line typeAS1002FS to AS4002FS-φ3.2 to φ12φ1/8'' to φ1/2''

Features

■Numerical indication of knob rotation for flow rate reduces flow setting time and setting errors

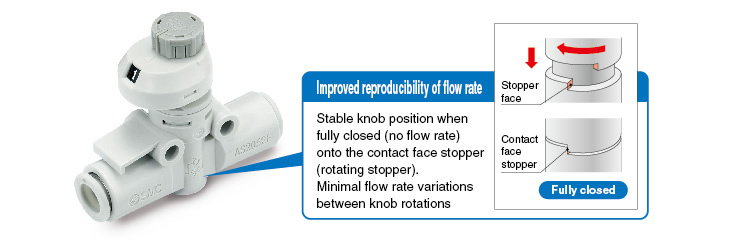

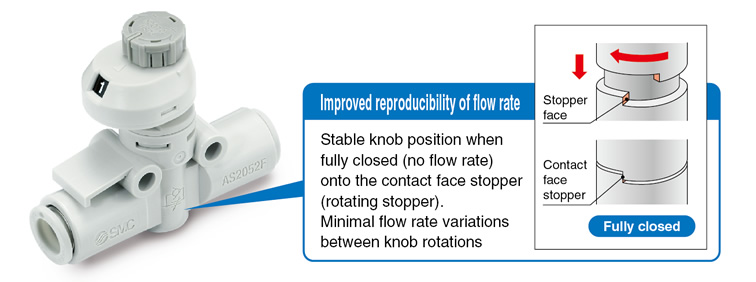

■Improved Reproducibility of Flow Rate

Stable knob position when fully closed (no flow rate) onto the contact face stopper (rotating stopper).
Minimal flow rate variations between knob rotations

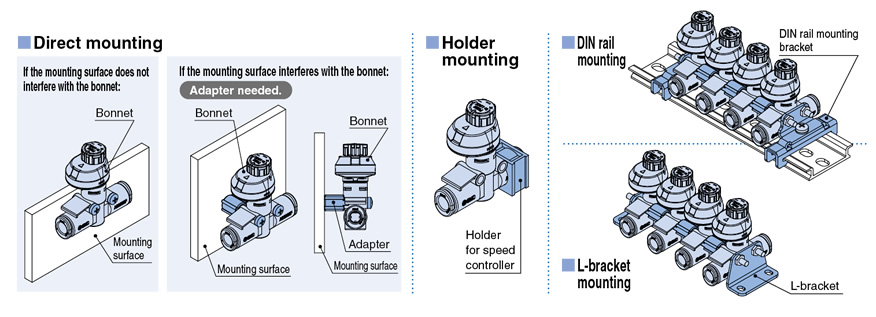

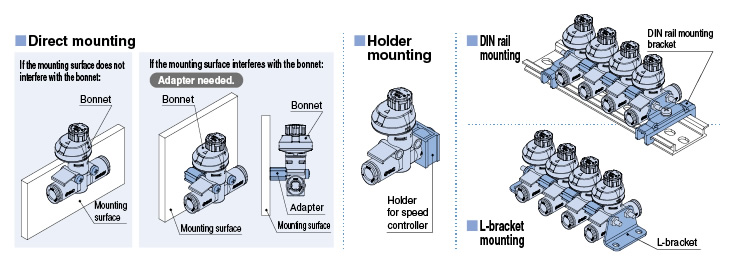

■Mounting variations
■Easy Identification of Product Type

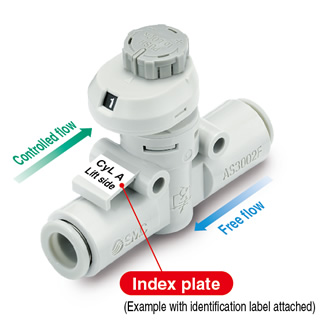

・By index plate

It is possible to identify the product when multiple controllers are mounted and identify the flow direction by attaching an identification label.

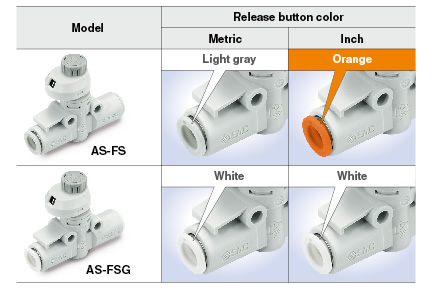

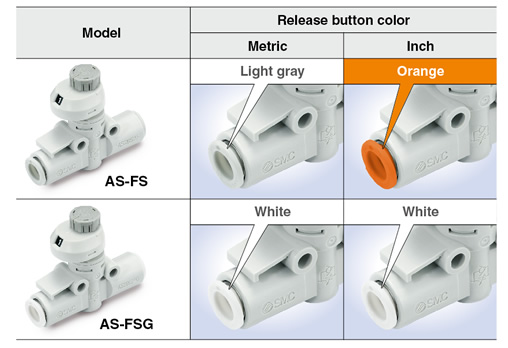

・By color





■Made to Order New
  • Lubricant: Vaseline -X12

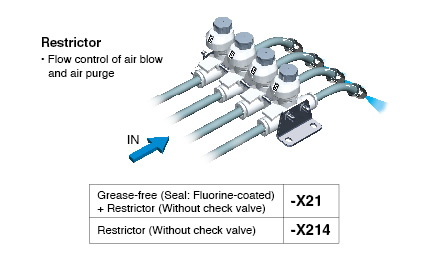

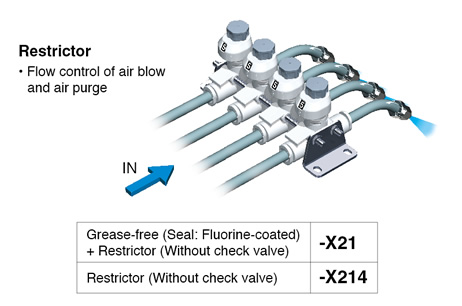

  • Grease-free+Restrictor -X21
  • Restrictor -X214
  • Clean Series 10-
