Pilot Operated 4/5 Port Solenoid Valves
5-Port Solenoid Valve VQ4000/5000
-
・Compact with a large flow capacity
Installation volume: 42% reduction, Installation area: 26% reduction
VQ4000: Can drive cylinders up to ø160
VQ5000: Can drive cylinders up to ø180
・Power saving: Power consumption of 0.4 W (Low wattage type)
・Supports Interface regulators
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD 5-Port Solenoid Valve VQ4000/5000
DoC
Series View search result VQ4000 View search result VQ5000 View search result
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Selection/Technical Data
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Flow rate characteristics 4/2→5/3（A/B→EA/EB） C［dm3/（s・bar）］ | Flow rate characteristics 4/2→5/3（A/B→EA/EB） b | Flow rate characteristics 4/2→5/3（A/B→EA/EB） Cv | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|---|
| VQ4000 | 7.3 | 0.38 | 2.0 | φ160 | 1.0 0.4(Low wattage type) |
| VQ5000 | 17 | 0.31 | 4.7 | φ180 | 1.0 0.4(Low wattage type) |
Features

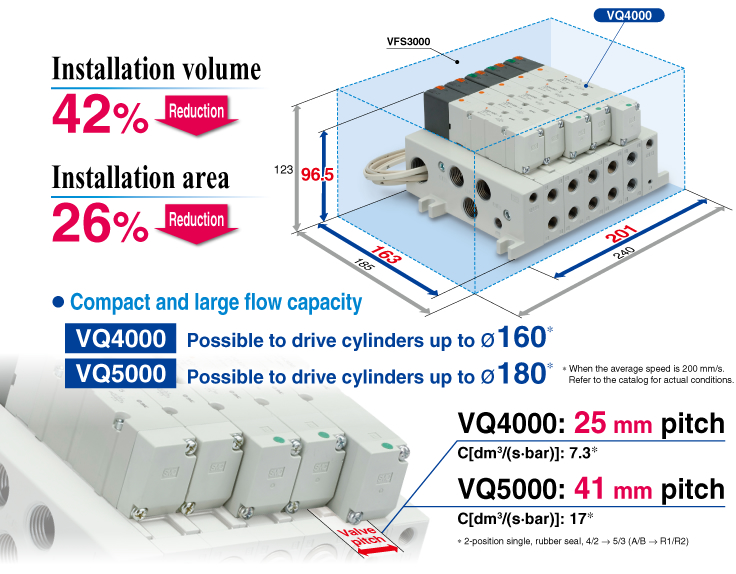

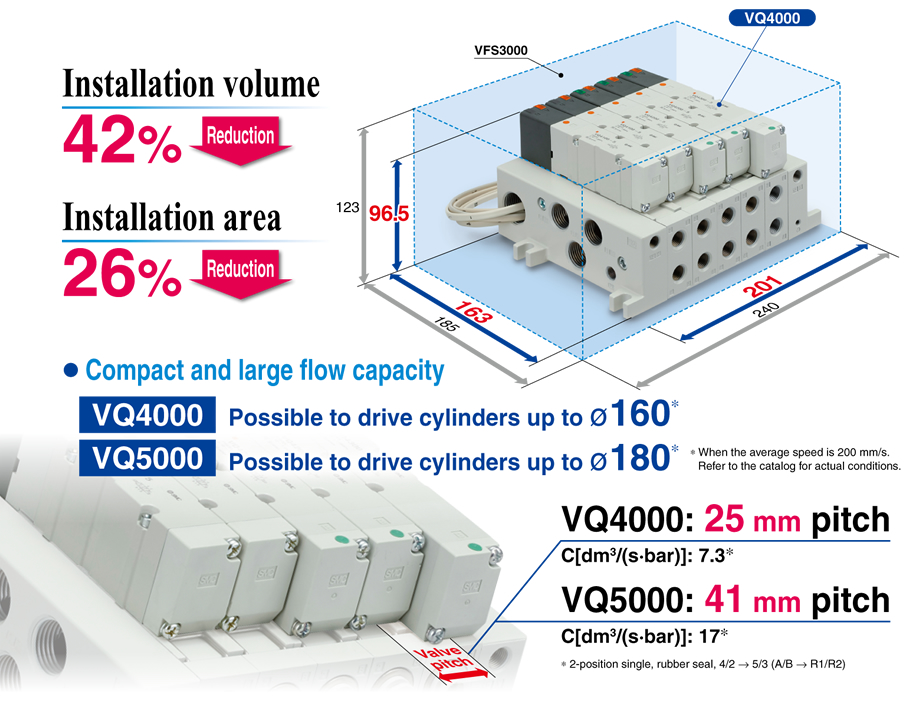

Compact and large flow capacity

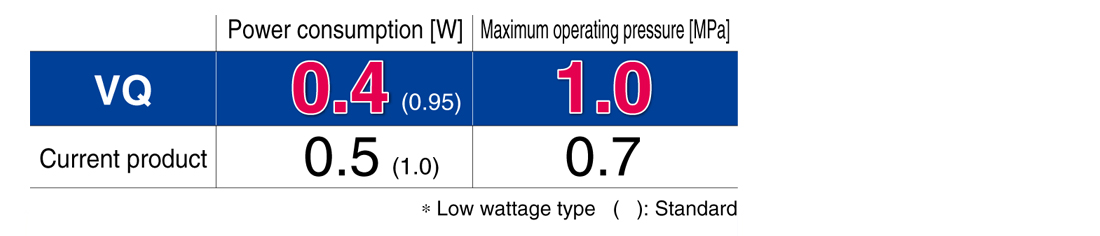

Power saving
Enclosure IP65 compliant
Dust-tight/Water-jet-proof
∗ When manifold is IP65 compliant.
∗ Except F and T1 kits
Long service life: 100 million cycles
∗ According to SMC life test conditions

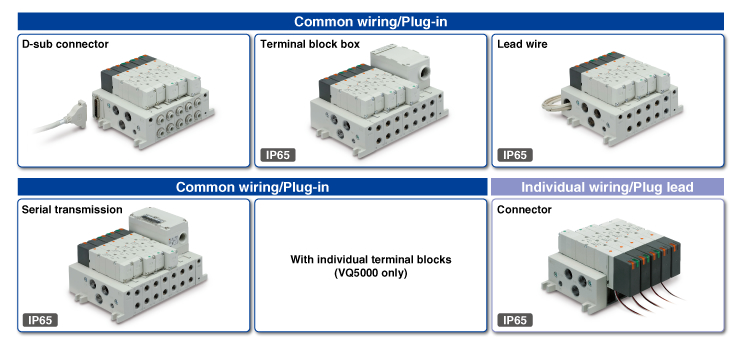

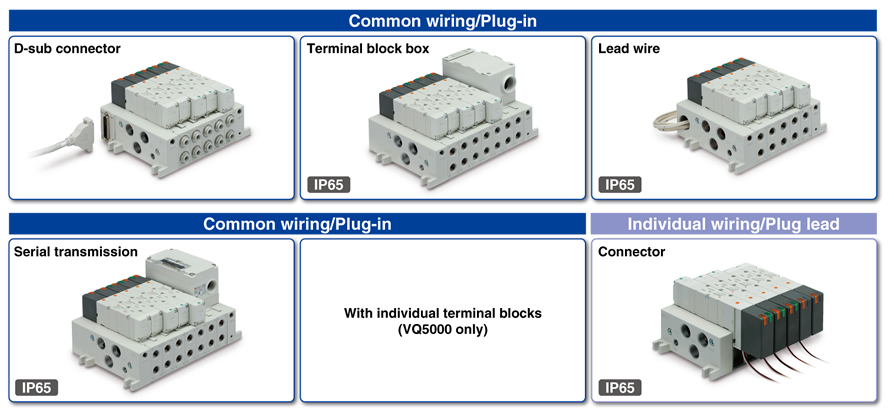

Wiring
