Air Preparation Filters
Modular Connection Type Antibacterial Filter/ Odor Removal Filter/ Bacteria Removal Filter HF2-BF□
-
・Products Utilizing US FDA/Japan Food Sanitation Act compliant materials
・NSF-H1 grade grease
・Antibacterial coating
・Designed for hygiene management in accordance with HACCP and other
standards
・Contributes to the FSSC22000 certification acquisition
・Antibacterial filter: Antibacterial activation value: 4 or higher
・Bacteria removal filter: Bacteria capture performance: LRV ≥ 9
・Odor removal filter: Oil concentration on the outlet side: 0.003 mg/m3 or
less
-
2D CAD
Click here for 2D CAD Modular Connection Type Antibacterial Filter/ Odor Removal Filter/ Bacteria Removal Filter HF2-BF□
Manual
Type Series View search result Antibacterial filter HF2-BFA View search result Antibacterial filter HF2-BFB View search result Odor removal filter HF2-BFC View search result Bacteria removal filter HF2-BFD View search result
Safety Instructions Air Preparation Equipment/Precautions Model Selection Guide/Quick Reference Guide Green Procurement (RoHS)
| Type | Series | Nominal filtration rating (μm) | Port size |
|---|---|---|---|
| Antibacterial filter | HF2-BFA | 5 | 1/4, 3/8, 1/2 |
| Antibacterial filter | HF2-BFB | 0.1 | 1/4, 3/8, 1/2 |
| Odor removal filter | HF2-BFC | - | 1/4, 3/8, 1/2 |
| Bacteria removal filter | HF2-BFD | 0.01 | 1/4, 3/8, 1/2 |

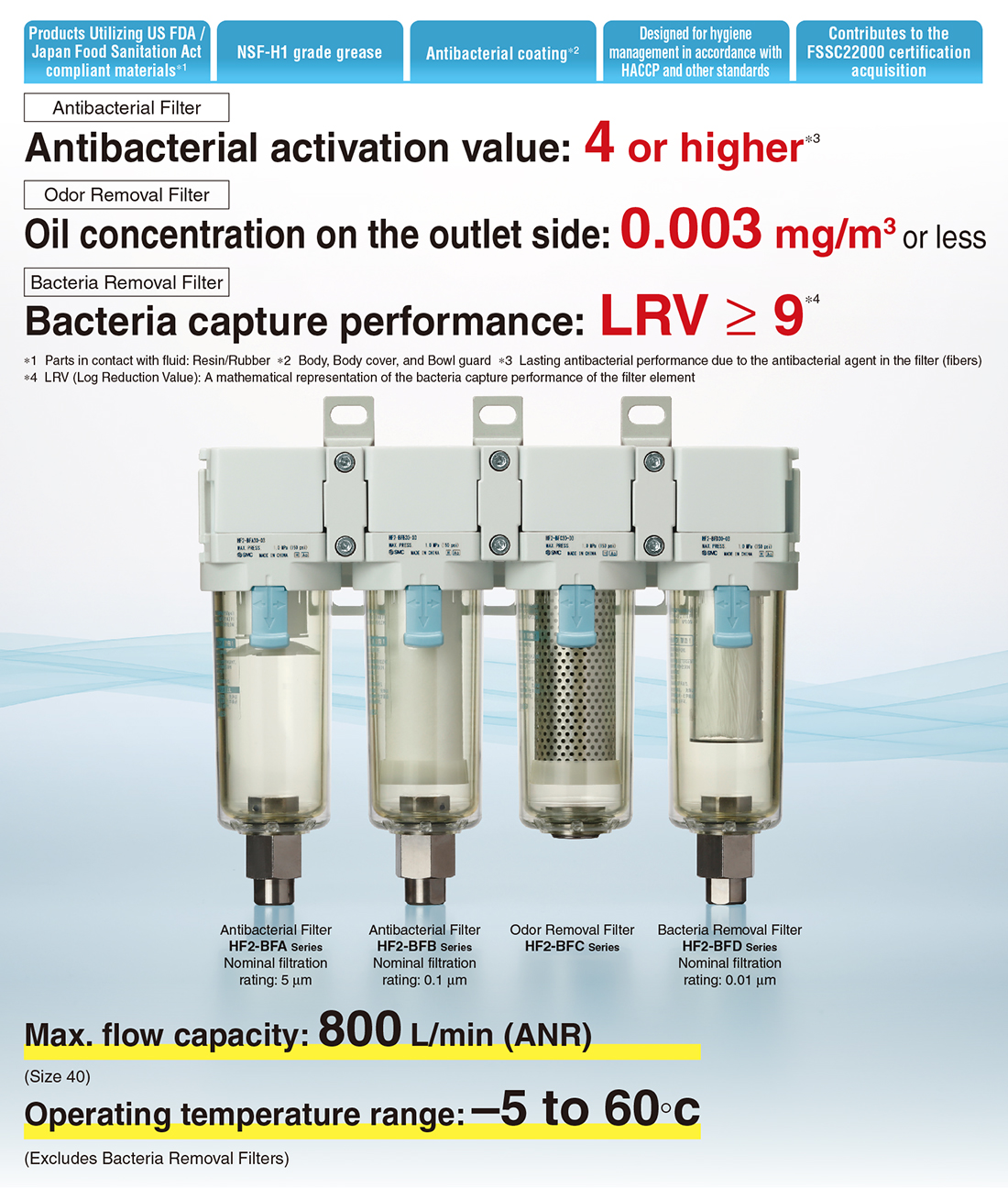

Features
Modular Connection Type Antibacterial Filter/ Odor Removal Filter/ Bacteria Removal Filter HF2-BF□ Series

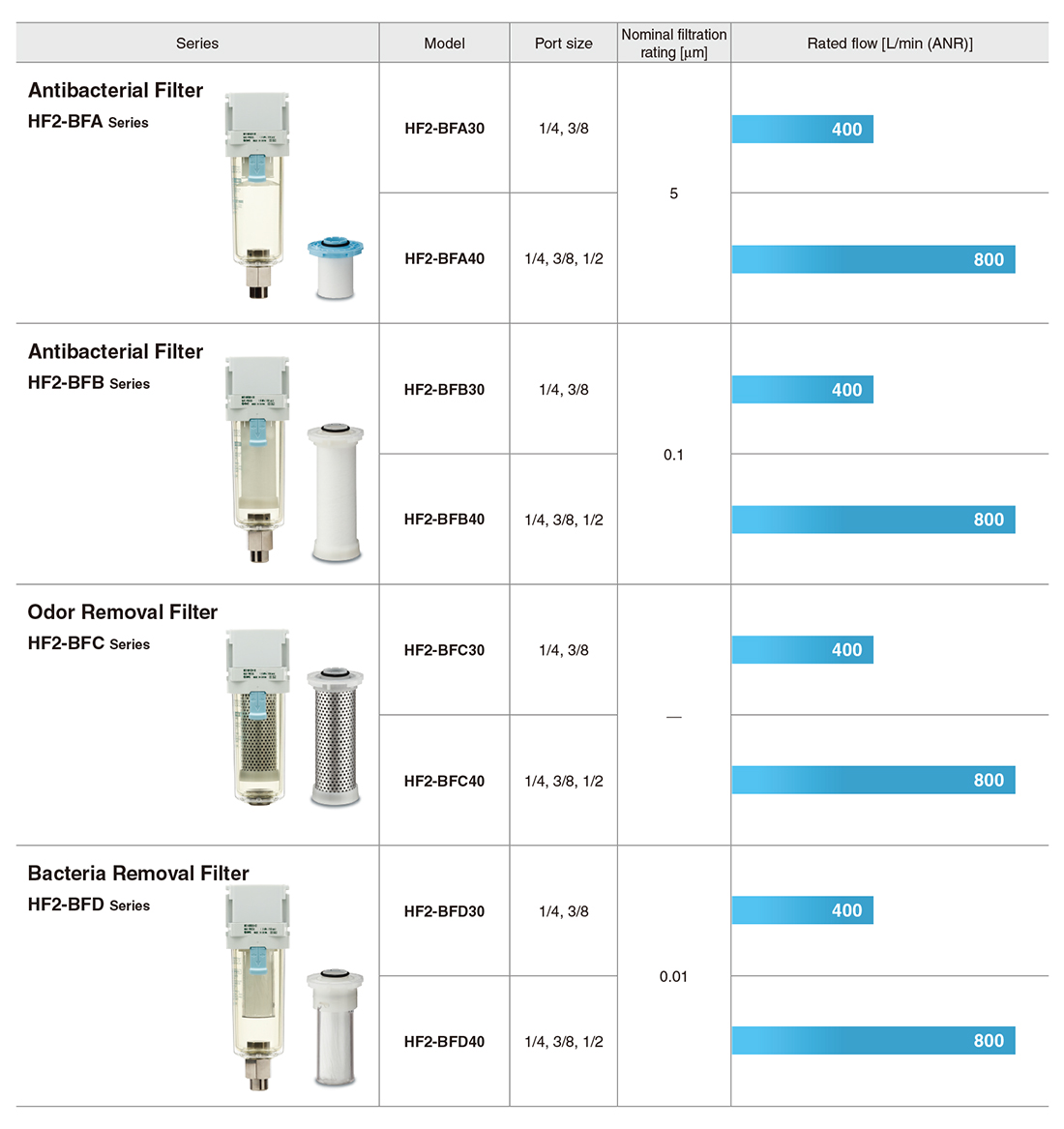

Variations

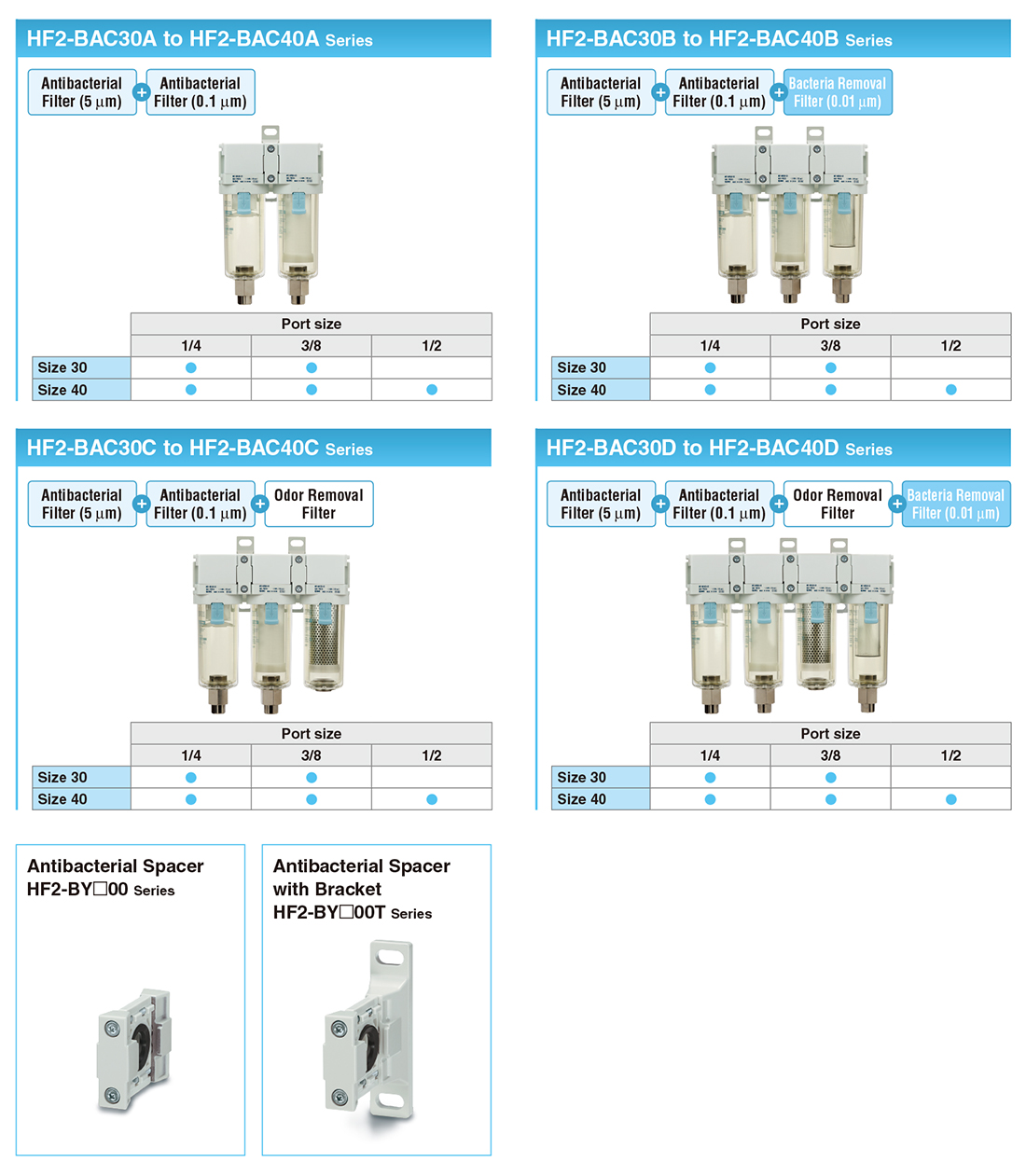

HF2-BAC□ Series Modular Combination Series Configuration

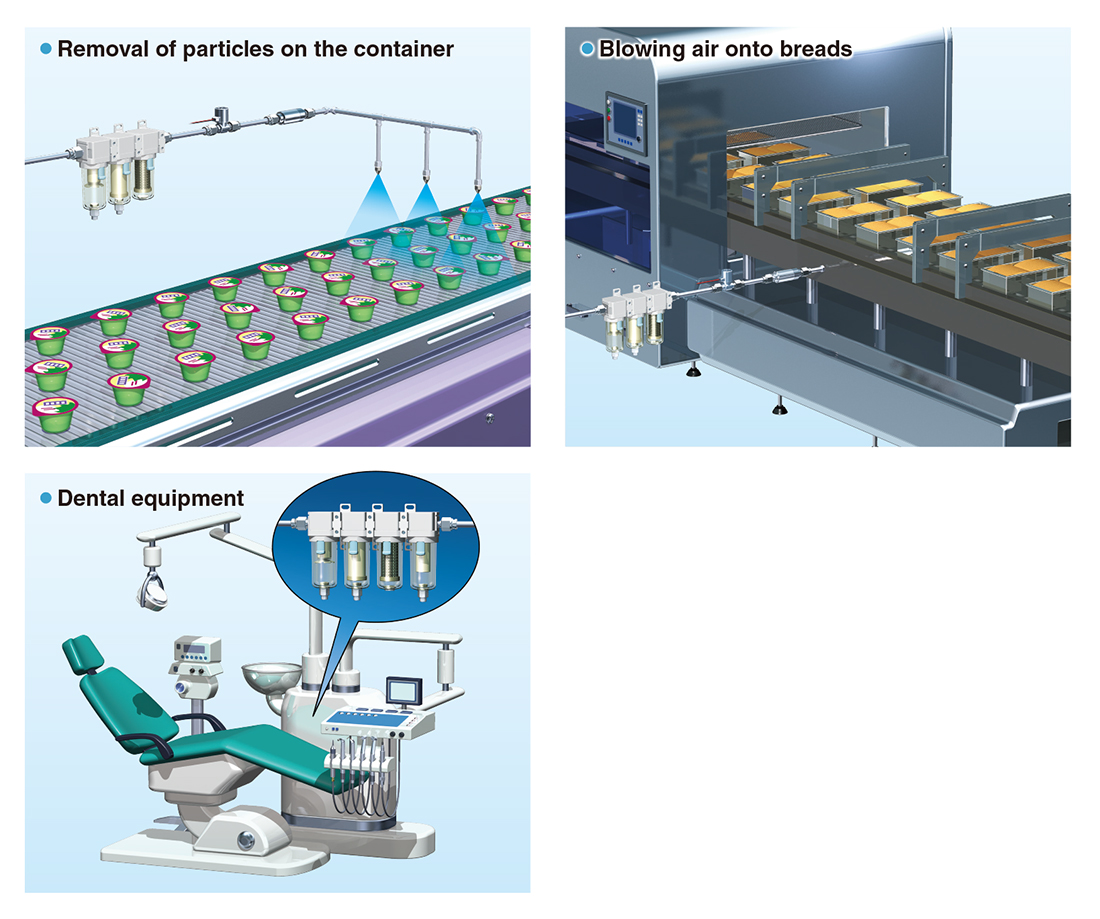

Application Examples

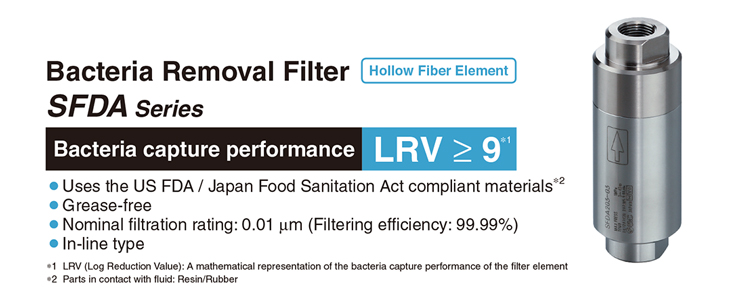

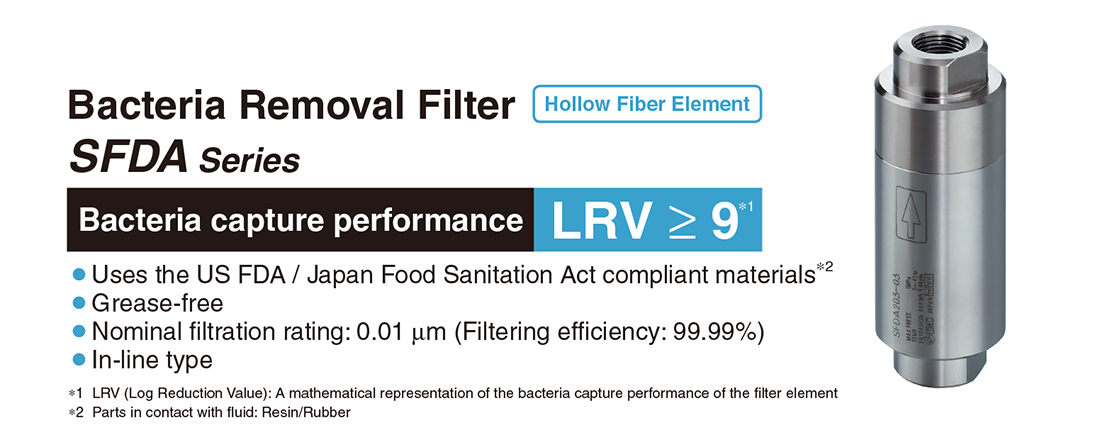

Related Product
