Table Cylinders
Air Slide Table MXQ□
-
・Height: 10% reduction (27 mm: Existing model 30 mm)
・Product weight: 22% reduction (298 g: Existing model 380 g)
・Allowable kinetic energy: 64% improvement (0.09 J: Existing model 0.055 J)
Model Selection/Technical Data Quick Selection Table Made to Order Common Specifications
Green Procurement (RoHS)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Double ported type | MXQ□A | Double acting | 6，8，12，16，20，25 |
| Low thrust with high rigidity type | MXQ□B | Double acting | 6，8，12，16，20 |
| Single side ported type | MXQ□C | Double acting | 8，12 |
| Height interchangeable type | MXQ | Double acting | 6，8，12，16，20，25 |
Features

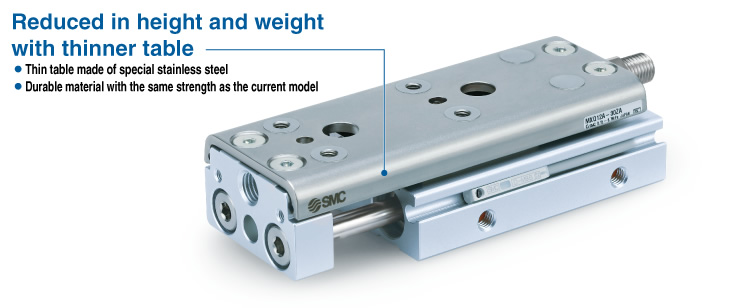

Reduced in height: 10% reduction (27 mm reduction, Current model: 30 mm)
Product weight: 22% reduction (298 g, Current model: 380 g)
Allowable kinetic energy: 64% improvement (0.09 J, Current model: 0.055 J)
∗ Comparison between the double-ported type and the current MXQ12-30 (without adjuster)

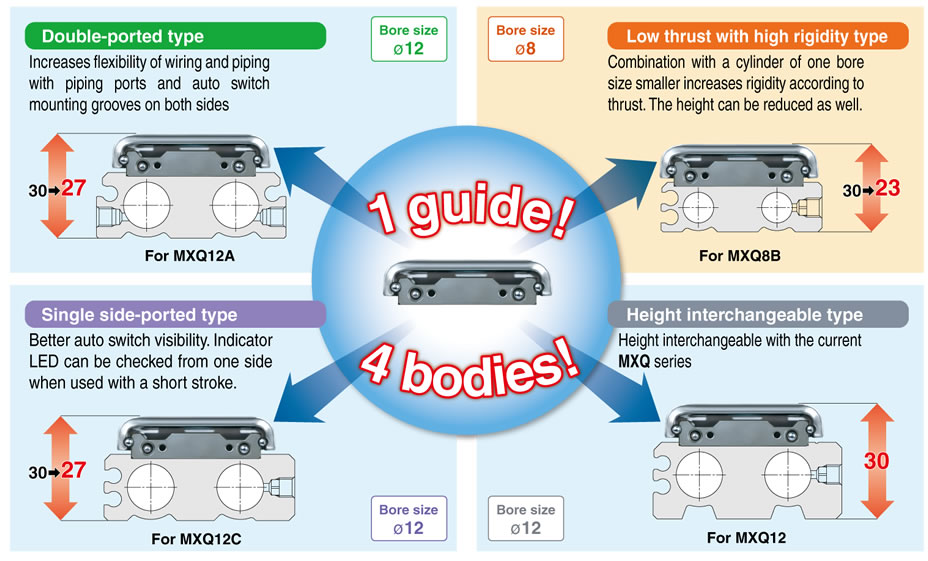

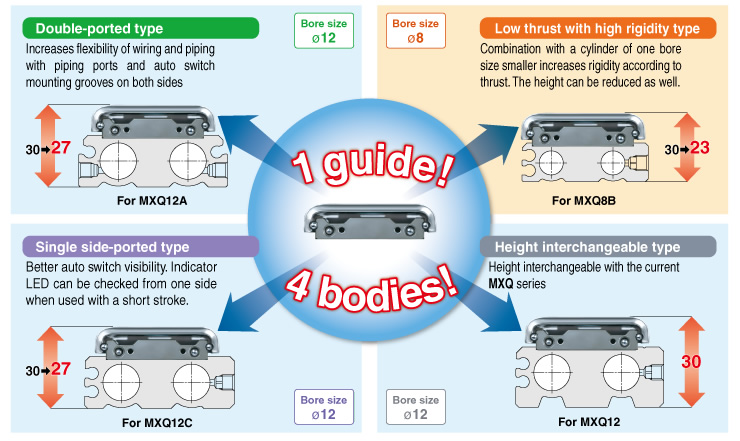

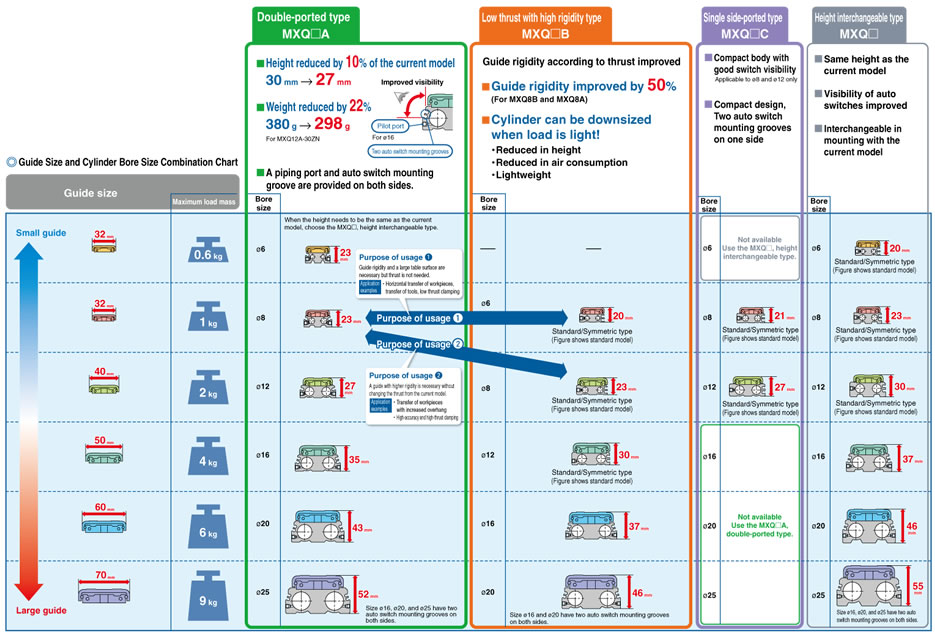

Select the best actuator with guide according to the application.

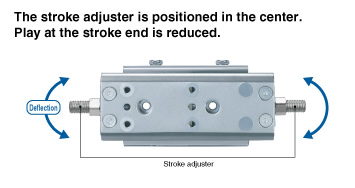

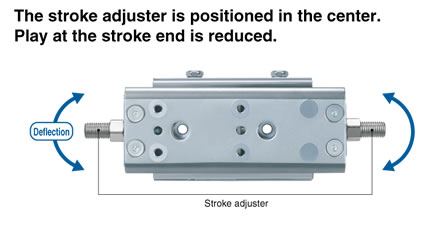

Stroke adjuster (Option)

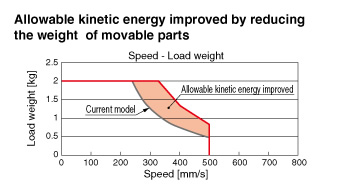

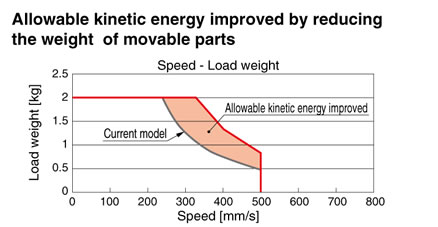

Allowable kinetic energy improved

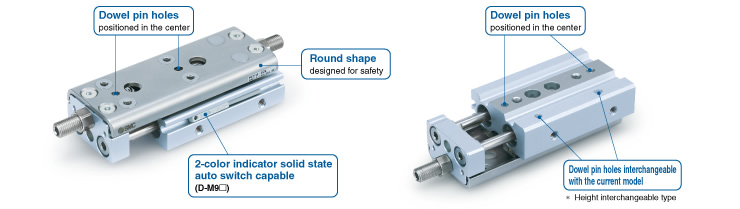

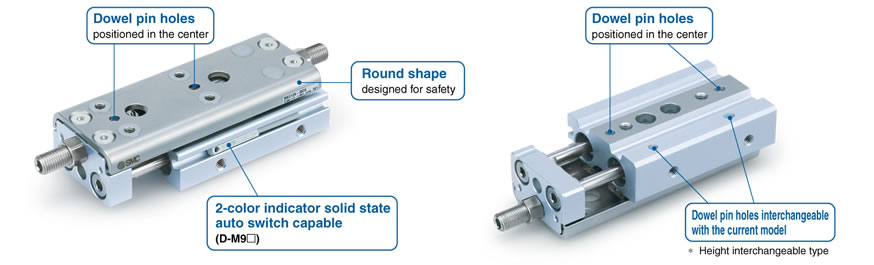

Table configuration for better function and easier maintenance

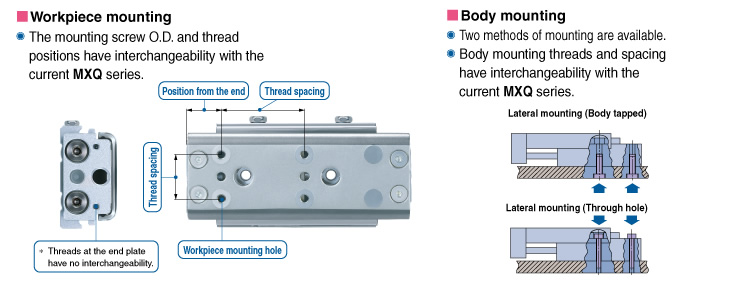

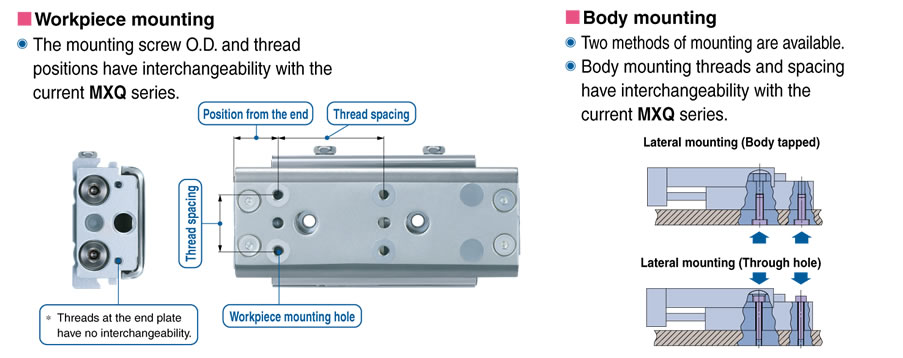

The mounting dimensions are equivalent to the current MXQ series.

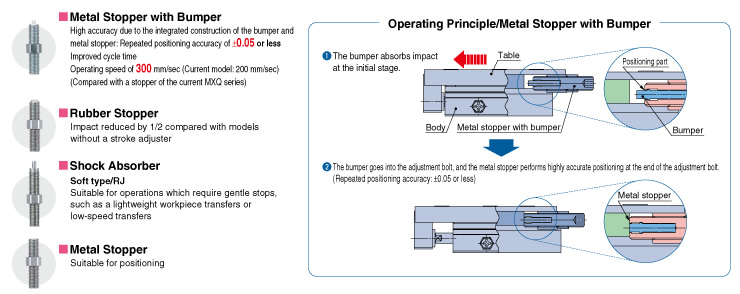

Various adjusters (Option)

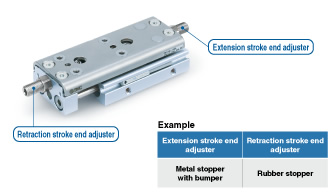

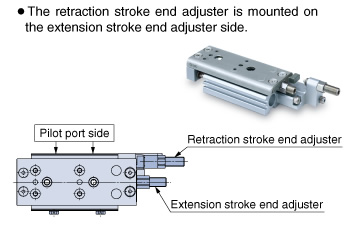

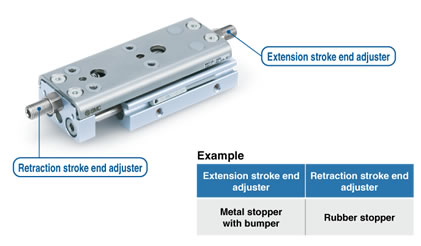

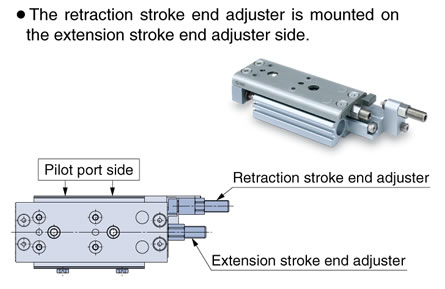

It is possible to combine an extension stroke end adjuster and a retraction stroke end adjuster.

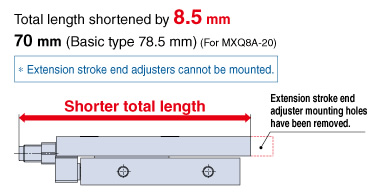

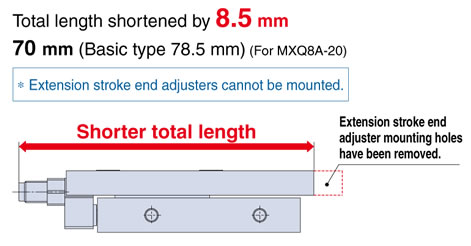

Shorter total length type table is now available.

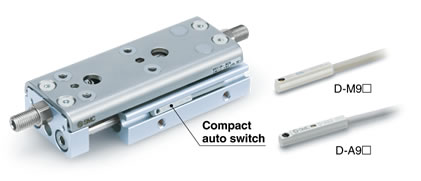

Compact auto switch is now available.
・Reed auto switch: D-A9□, D-A9□V
・Solid state auto switch: D-M9□(A), D-M9□W
Made to order options have been added. New
・Dual stroke specification
・Side adjuster specification
・Combined use of shock absorber + metal stopper, etc.

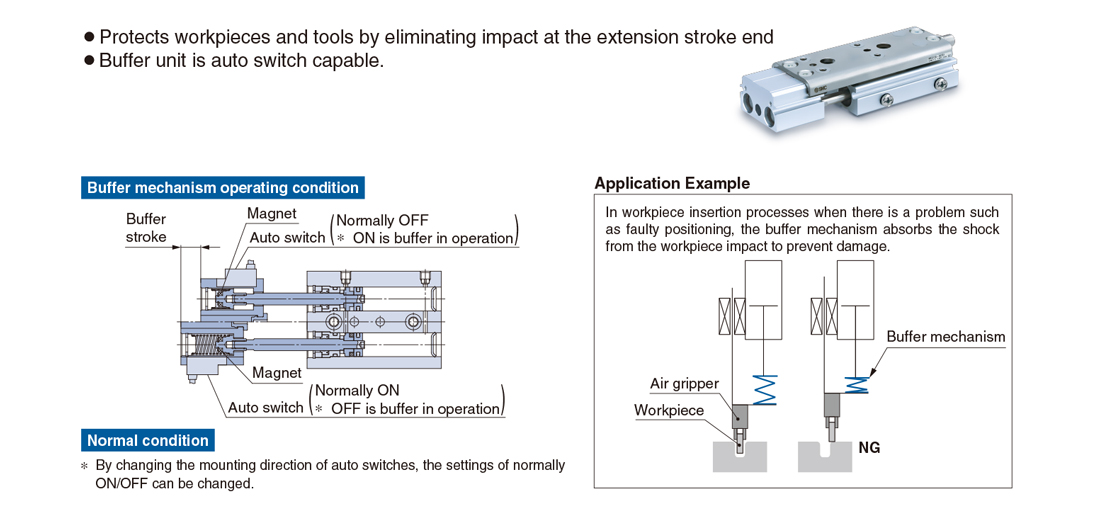

With buffer mechanism

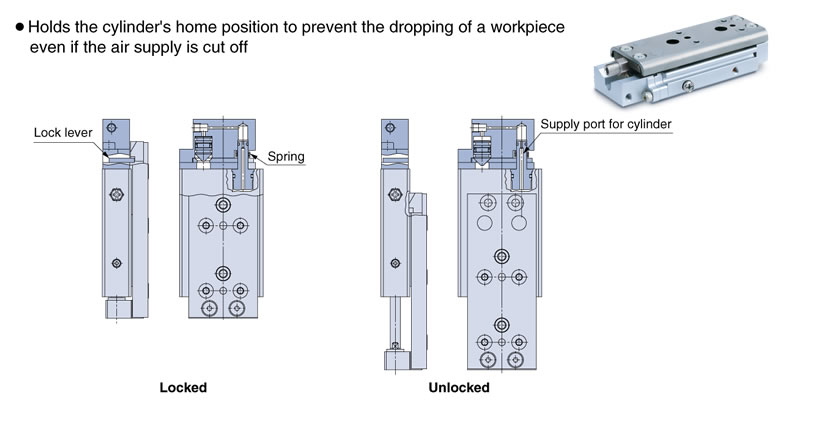

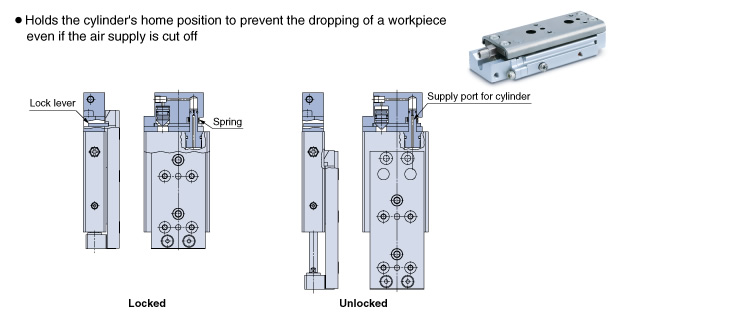

With end lock

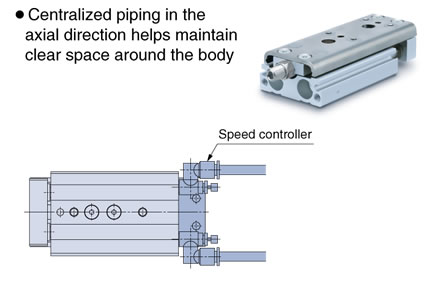

Axial piping
Centralized adjuster
