Magnetically Coupled Rodless Cylinders

Magnetically Coupled Rodless Cylinder/Basic Type CY3B

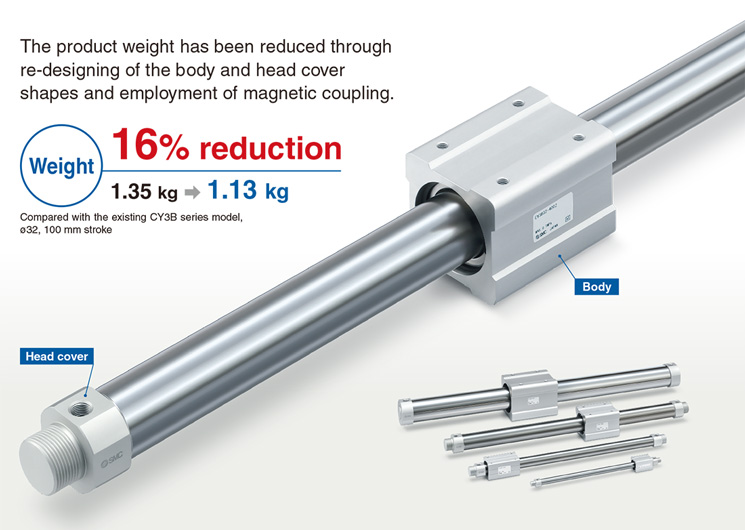

    ・Lightweight
    　The product weight has been reduced through re-designing of the body
    　and head cover shapes and employment of magnetic coupling.
    　Weight: 16% reduction (1.35 kg → 1.13 kg)
    ・Improved lubrication
    　A Lube-retainer is installed to support lubrication retention on the piston
    　and to ensure a lubrication film. (Bore size: ø15 to ø63)
    ・Stable operation
    　Lengthening of the wear ring on the body side by, 30% at maximum,
    　helps to achieve smooth movement.
    ・The specifications, magnet holding force, and mounting dimensions are
    　the same as those of the existing CY3B series model.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Actuators/Precautions　Auto Switches/Precautions
Model Selection/Technical Data　Quick Selection Table
Made to Order Common Specifications　Series Variations/Model Selection Criteria
Green Procurement (RoHS)
TypeSeriesActionBore size (mm)
BasicCY3BDouble acting6，10，15，20，25，32，40，50，63

Features

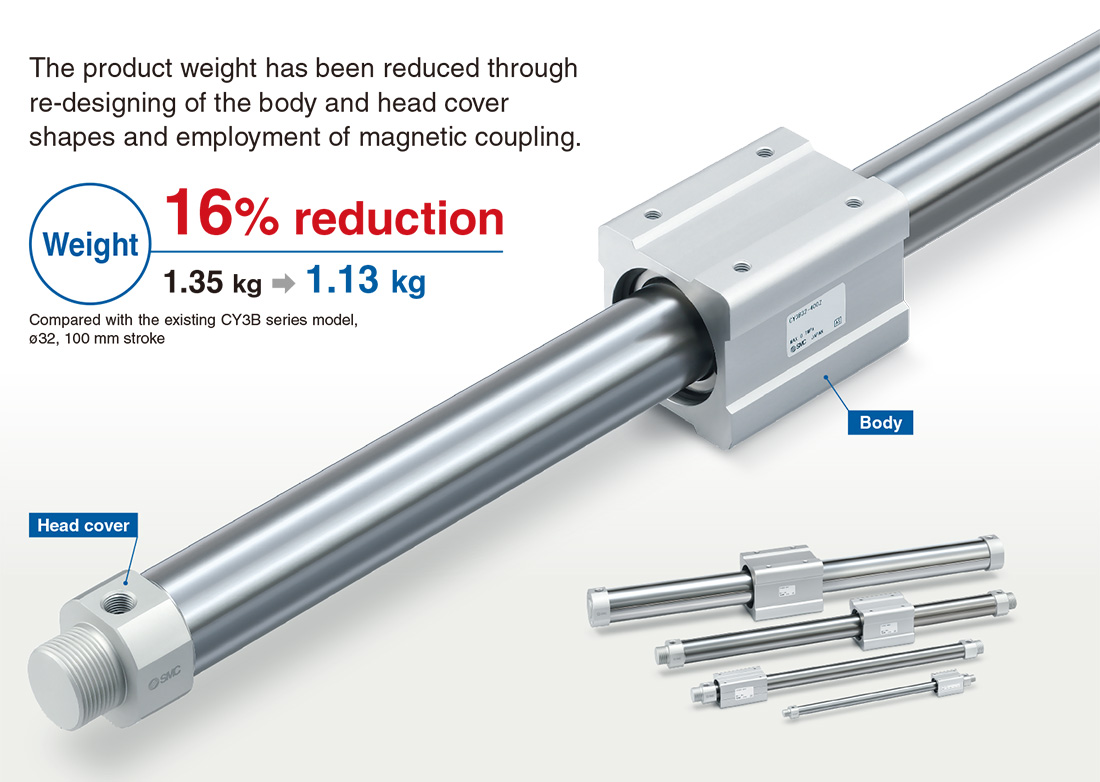

Lightweight Weight: 16% reduction (1.35 kg → 1.13 kg)

Compared with the existing CY3B series model, ø32, 100 mm stroke

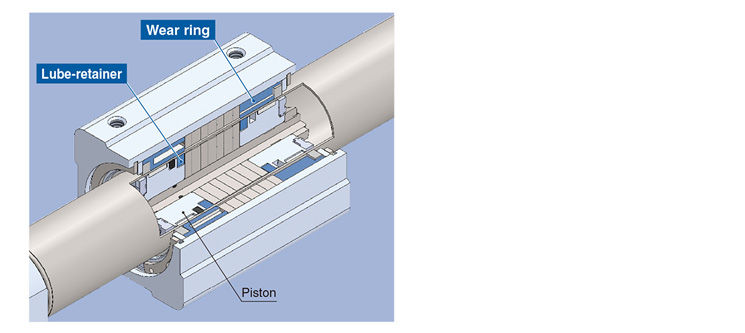

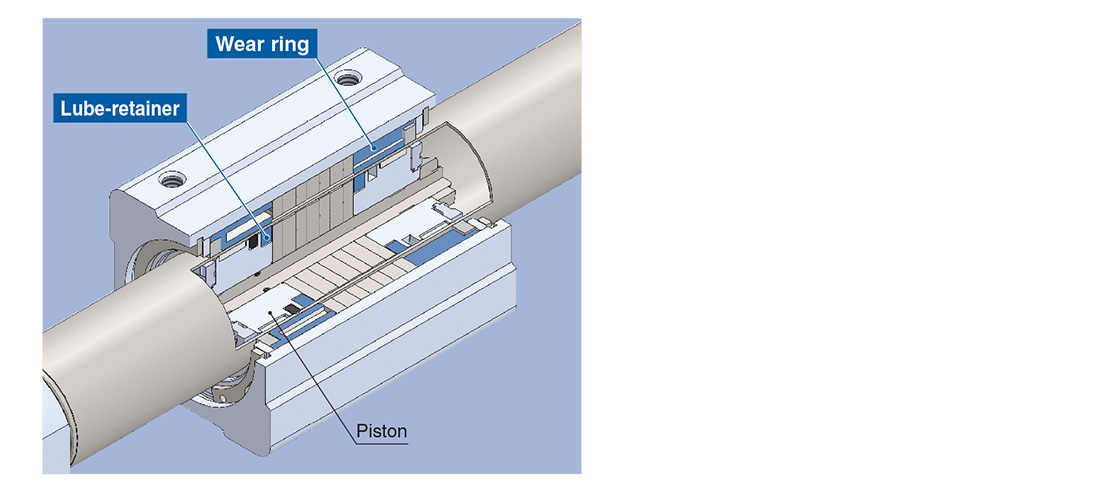

Improved lubrication

A Lube-retainer is installed to support lubrication retention on the piston and to ensure a lubrication film. (Bore size: ø15 to ø63)



Stable operation

Lengthening of the wear ring on the body side by, 30% at maximum, helps to achieve smooth movement.

The specifications, magnet holding force, and mounting dimensions are the same as those of the existing CY3B series model.

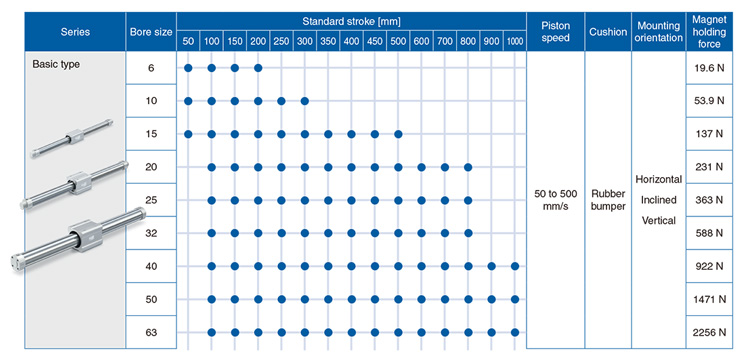

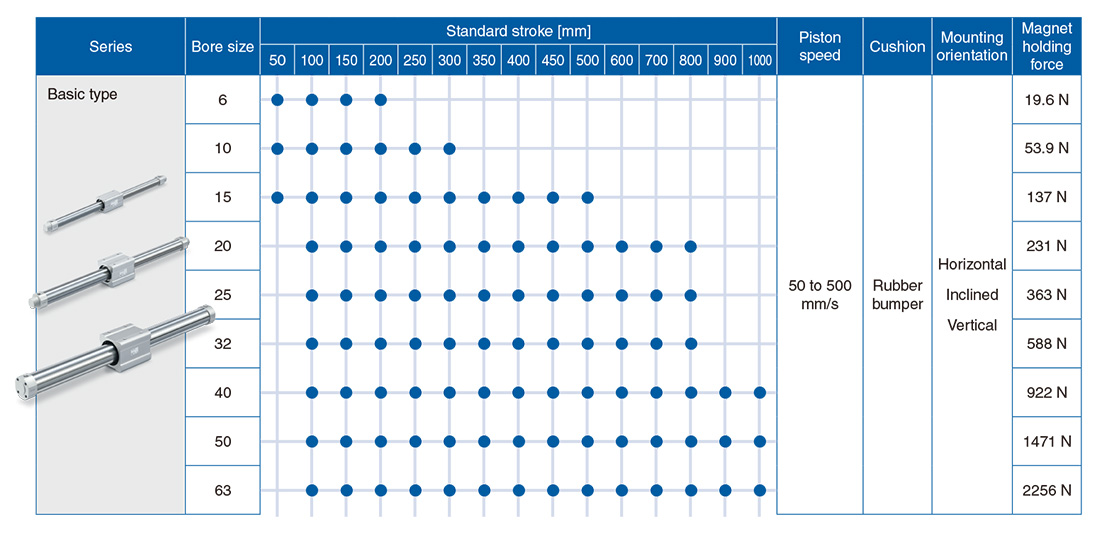

Series Variations
