Floating Joints/Rod End

Floating Joint J

    ・The floating joint can absorb any off-centering or loss of parallel accuracy of the double acting cylinder, making centering unnecessary.
Safety Instructions　Actuators/Precautions　Green Procurement (RoHS)

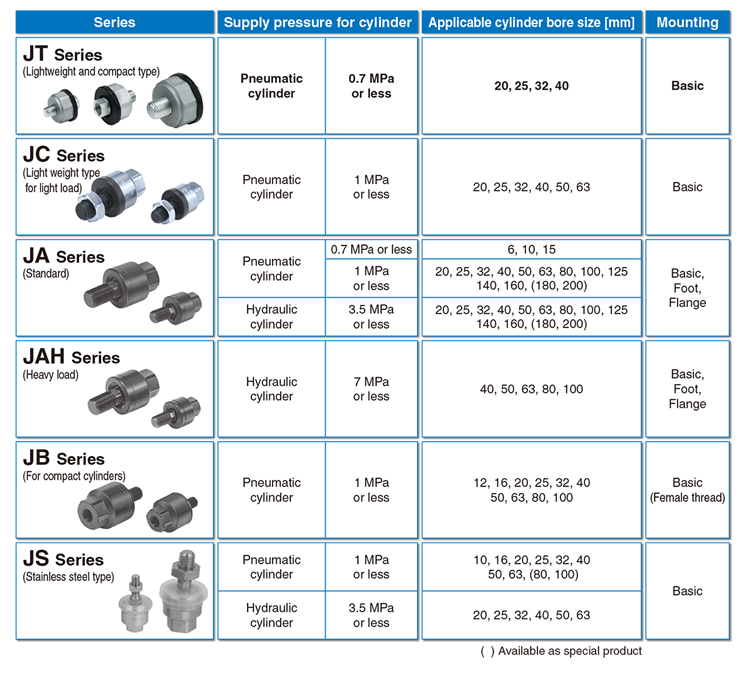

TypeSeriesApplicable cylinder bore size (mm)
Lightweight and compact typeJT20，25，32，40
Light weight type for light loadJC20，25，32，40，50，63
StandardJA，JAF，JAL6，10，15，20，25，30，40，50，63，80，100，125，140，160
StandardJA-X530，JAF-X530，
JAL-X530		180，200
Heavy loadJAH，JAHF，JAHL40，50，63，80，100
For compact cylindersJB12，16，20，25，32，40，50，63，80，100，125，140，160
Stainless steel typeJS10，15，16，20，25，32，40，50，63

Features

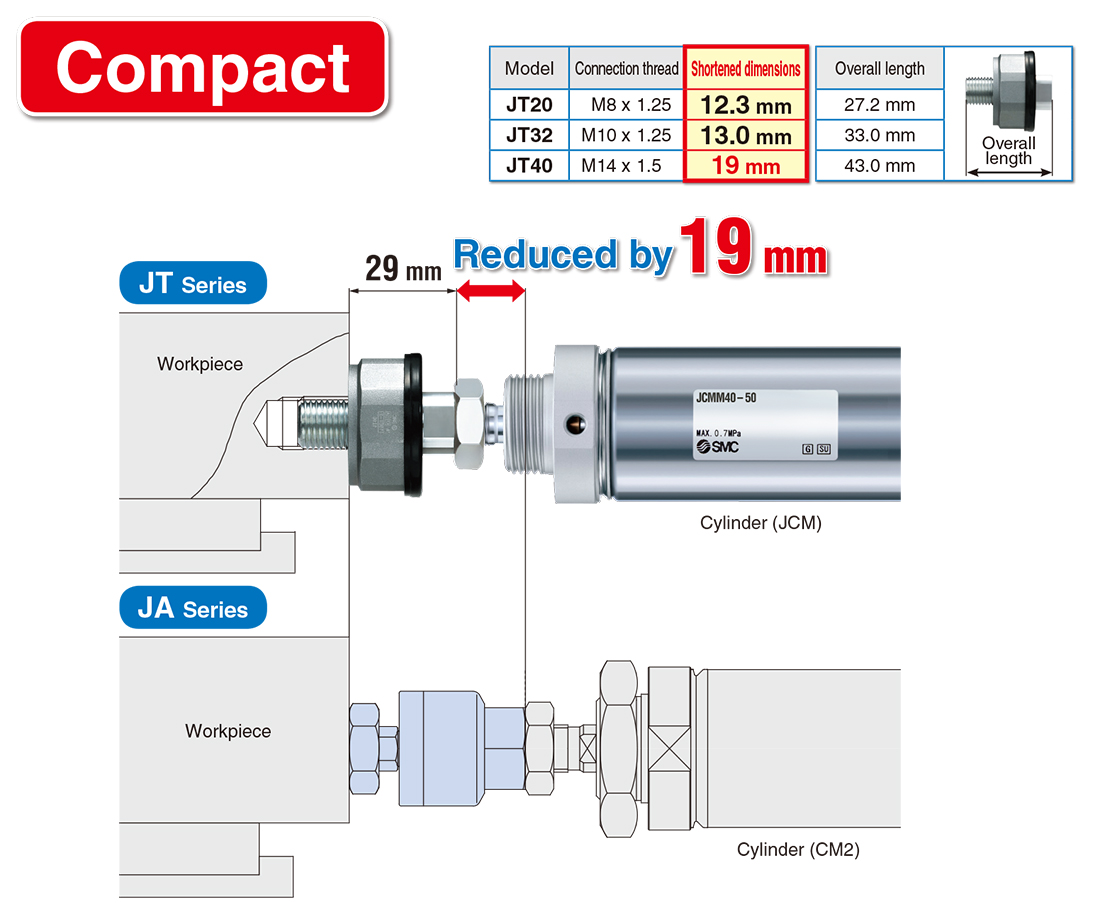

Compact: Reduced by 19 mm

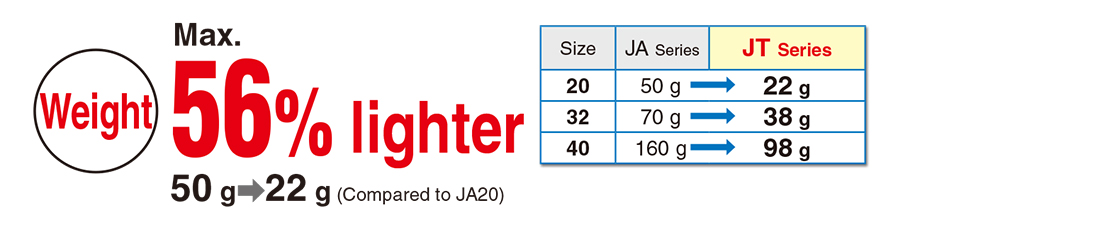

Weight: Max.56% lighter (50g → 22g)

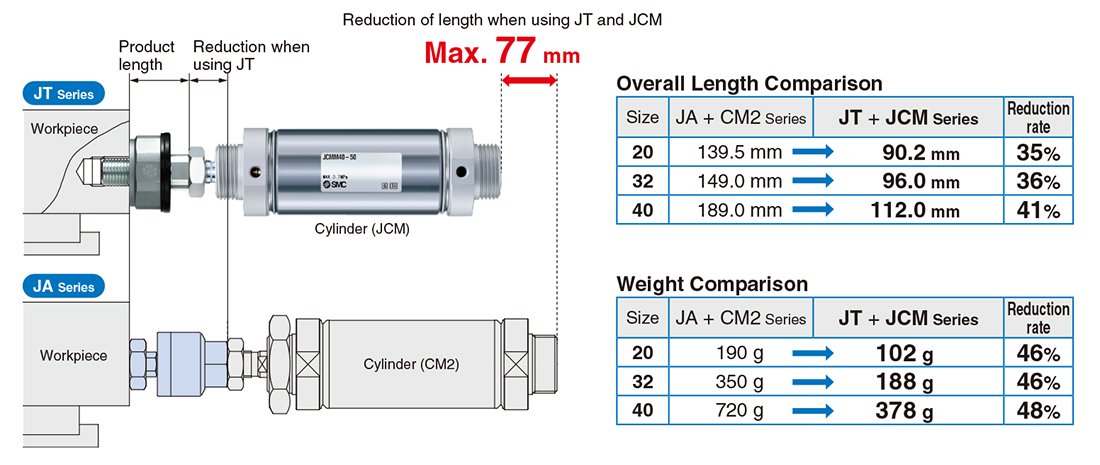

More compact and light-weight combination are available by using the JT series with a JCM series cylinder.

Screw size is the same as the screw　size for standard JA series.



With dustproof cover

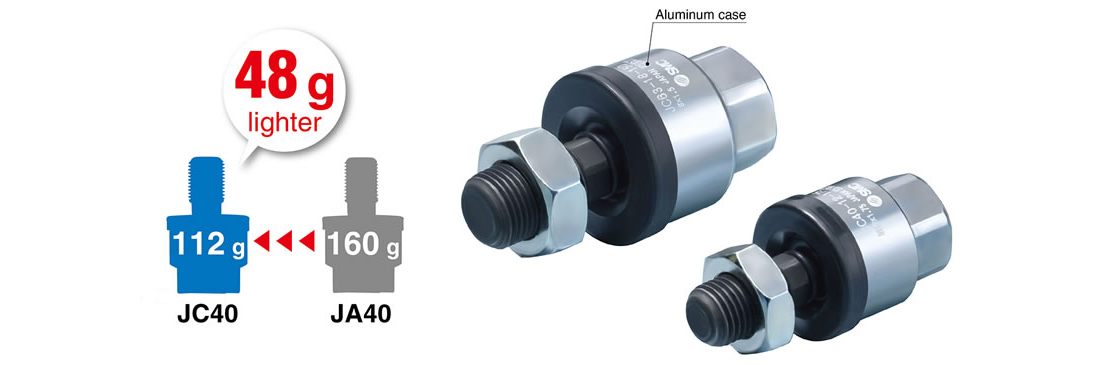

Light weight With the aluminum case

Weight 30% reduction

*Compared to the existing model JA40



Product suitable for air cylinders

・Light weight mitigates lateral loads to air cylinders.
・Maximum tensile force equivalent to 1 MPa



Floating joint compensates for any misalignment between the work piece and the air cylinder.

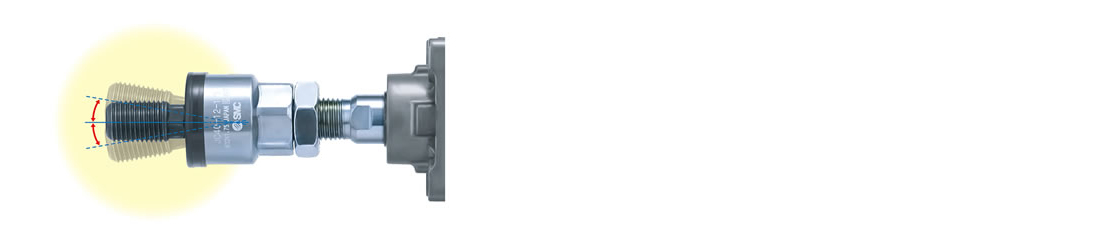

Rotating angle : ±5°

Series Variations

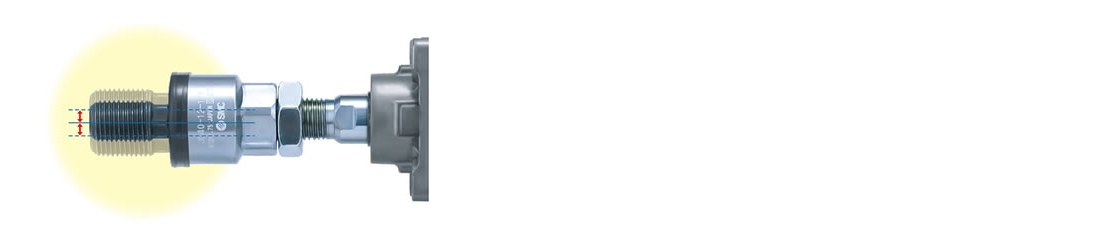

Allowable eccentricity : ±0.5 to 1 mm
