Compact Air Cylinders
Longer Life Cylinder CU-XB24
-
・New technology offers at least 4 times better durability.
The maintenance intervals will be extended.
・Employs the same specification and dimensions as the existing models, CU Free Mount Cylinder series
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Green Procurement (RoHS)
Model Selection/Technical Data Green Procurement (RoHS)

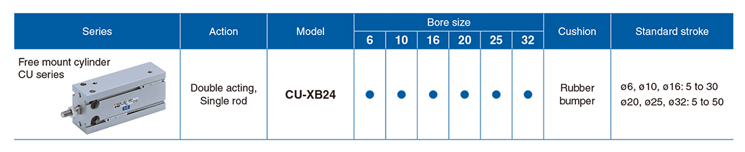

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Longer life | CU-XB24 | Double acting, Single rod | 6，10，16，20，25，32 |
Features
New technology offers at least 4 times better durability.
The maintenance intervals will be extended.

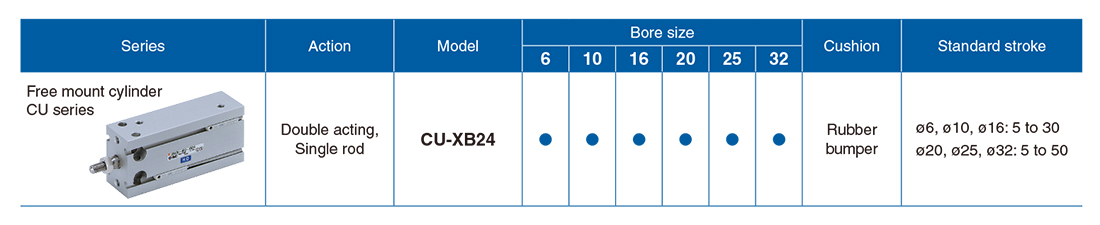

Series Variations
