Compact Air Cylinders

Longer Life Cylinder CQS-XB24

    ・New technology offers at least 4 times better durability.
    　The maintenance intervals will be extended.
    ・Employs the same specification and dimensions as the existing models,
    　CQS Compact Cylinder series
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Longer Life Cylinder CQS-XB24
    Symbol Specifications Download
    -XA1・2・6・7・11・17・18 Simple Specials CQS/CQS-XB24/CQ2/CQ2-XB24/RQ/CLQ(φ12 to φ25):Change of rod end shape PDF
Safety Instructions　Actuators/Precautions　Auto Switches/Precautions　Model Selection/Technical Data　Quick Selection Table　Simple Specials　Made to Order Common Specifications　Green Procurement (RoHS)
TypeSeriesActionBore size (mm)

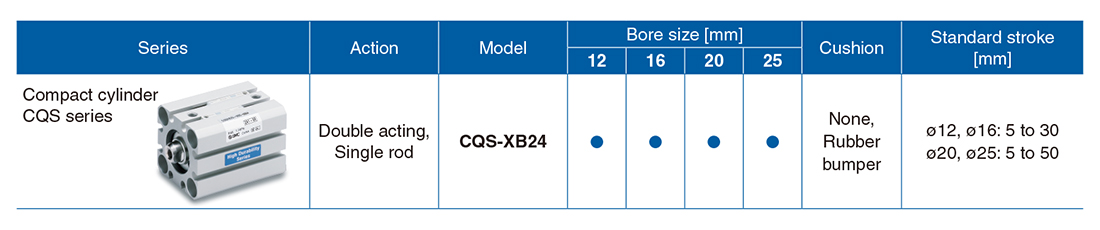

Longer lifeCQS-XB24Double acting, Single rod12, 16, 20, 25
