■Pulse Valve JSXFA Series
Pulse Valve (Valve for Dust Collector) JSXF/JSXFA
|
・Life: 10 million cycles or more/10 times or more

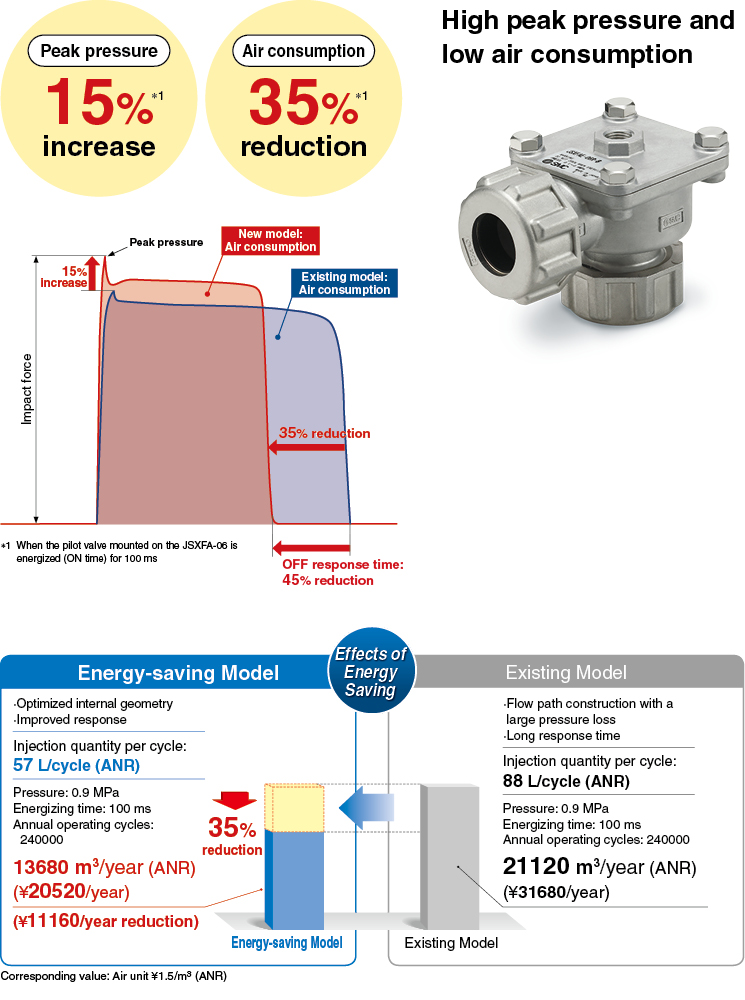

・High peak pressure and low air consumption Peak pressure: 15% increase Air consumption: 35% reduction ・Fluid temperature: −40 to 60℃ ・Easier maintenance ・Immersion type ・No need to weld the tank piping |
| Other Data |
|---|
| Series | Valve type | Port size | Piping | Orifice diameter (mmø) |
|---|---|---|---|---|
|
JSXF Solenoid valve |
N.C. |
3/4（20A） 1（25A） 1 1/2（40A） 2（50A） |
Compression fitting type Direct piping type (Rc, NPT, G) Immersion type |
32, 40, 45, 50, 55 (ø55 is only available for the immersion type.) |
|
JSXFA Air operated |
N.C. |
3/4（20A） 1（25A） 1 1/2（40A） 2（50A） |
Compression fitting type Direct piping type (Rc, NPT, G) Immersion type |
32, 40, 45, 50, 55 (ø55 is only available for the immersion type.) |
Pulse Valve (Valve for Dust Collector)JSXF/JSXFA
| Series | Download |
|---|---|
| JSXF Solenoid valve |
|
| JSXFA Air operated |
|
