Element Part No. List
Water Separator
Eliminates water droplets in compressed air.
-
-
AMG Series
Water removal rate
For details
99% -
Model Elements Part No. AMG150C AMG-EL150 AMG250C AMG-EL250 AMG350C AMG-EL350 AMG450C AMG-EL450 AMG550C AMG-EL550 AMG650 AMG-EL650 AMG850 AMG-EL850
-
Main Line Filter
Eliminates impurities, such as oil, foreign matter, etc., in compressed air.
-
-
AFF□D Series
Filtration rating
For details
1μm -
Model Elements Part No. AFF70D AFF-EL70D AFF80D AFF-EL80D AFF90D AFF-EL90D
-
-
-
AFF Series
Filtration rating
For details
3μm -
Model Elements Part No. AFF2C AFF-EL2B AFF4C AFF-EL4B AFF8C AFF-EL8B AFF11C AFF-EL11B AFF22C AFF-EL22B AFF37B AFF-EL37B AFF75B AFF-EL75B AFF75A EC700-003N AFF125A EC700-003N AFF150A EC800-003N AFF220A EC900-003N
-
* The bodies of the AFF75A to 220A and their corresponding elements differ from the photo.
* The life of the element is 1 year, or when the pressure drops to 0.1 MPa.
Air Filter
Eliminates impurities, such as oil, foreign matter, etc., in compressed air.
-
-
AF Series
Filtration rating
For details
5μm -
Model Elements Part No. AF10 AF10P-060S AF20 AF20P-060S AF30 AF30P-060S AF40 AF40P-060S AF40-06 AF40P-060S AF50 AF50P-060S AF60 AF60P-060S AF800 11345-5B AF900 11352-5B
-
-
-
AW/AW□K Series
(Filter regulator)
Filtration rating
For details
5μm -
Model Elements Part No. AW10(K) AF10P-060S AW20(K) AF20P-060S AW30(K) AF30P-060S AW40(K) AF40P-060S AW40-06(K) AF40P-060S AW60(K) AW60P-060S
-
Mist Separator
Eliminates oil mist in compressed air, rust sized 0.3 μm or more, and foreign matter such as carbon.
-
-
AFM Series
Filtration rating
For details
0.3μm -
Model Elements Part No. AFM20 AFM20P-060AS AFM30 AFM30P-060AS AFM40 AFM40P-060AS AFM40-06 AFM40P-060AS
-
-
-
AWM Series
(Mist separator regulator)
Filtration rating
For details
0.3μm -
Model Elements Part No. AWM20 AFM20P-060AS AWM30 AFM30P-060AS AWM40 AFM40P-060AS
-
-
-
AM□D Series
Filtration rating
For details
0.1μm -
Model Elements Part No. AM70D AM-EL70D AM80D AM-EL80D AM90D AM-EL90D
-
-
-
AM Series
Filtration rating
For details
0.3μm -
Model Elements Part No. AM150C AM-EL150 AM250C AM-EL250 AM350C AM-EL350 AM450C AM-EL450 AM550C AM-EL550 AM650 AM-EL650 AM850 AM-EL850
-
Micro Mist Separator
Eliminates foreign matter sized 0.01 μm or more and oil particles in an aerosol state.
-
-
AFD Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AFD20 AFD20P-060AS AFD30 AFD30P-060AS AFD40 AFD40P-060AS AFD40-06 AFD40P-060AS
-
-
-
AWD Series
(Micro mist separator regulator)
Filtration rating
For details
0.01μm -
Model Elements Part No. AWD20 AFD20P-060AS AWD30 AFD30P-060AS AWD40 AFD40P-060AS
-
-
-
AMD□D Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AMD70D AMD-EL70D AMD80D AMD-EL80D AMD90D AMD-EL90D
-
-
-
AMD Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AMD150C AMD-EL150 AMD250C AMD-EL250 AMD350C AMD-EL350 AMD450C AMD-EL450 AMD550C AMD-EL550 AMD650 AMD-EL650 AMD850 AMD-EL850 AMD800 63174 AMD801 63174 AMD900 63174(3 pcs. required) AMD901 63174(3 pcs. required) AMD1000 63174(5 pcs. required)
-
* The bodies of the AMD800 to 1000 and their corresponding elements differ from the photo.
* The life of the element is 1 year, or when the pressure drops to 0.1 MPa.
Micro Mist Separator with Pre-filter
A micro mist separator equipped with a pre-filter (equivalent to the AM series).
-
-
AMH Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AMH150C AMH-EL150 AMH250C AMH-EL250 AMH350C AMH-EL350 AMH450C AMH-EL450 AMH550C AMH-EL550 AMH650 AMH-EL650 AMH850 AMH-EL850
-
Super Mist Separator
Captures foreign matter sized 0.01 μm or more and absorbs oil particles in an aerosol state.
The appearance of a red spot on the surface indicates the end of the elements life.
-
-
AME Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AME150C AME-EL150 AME250C AME-EL250 AME350C AME-EL350 AME450C AME-EL450 AME550C AME-EL550 AME650 AME-EL650 AME850 AME-EL850
-
Odor Removal Filter
Eliminates odor from compressed air.
-
-
AMF Series
Filtration rating
For details
0.01μm -
Model Elements Part No. AMF150C AMF-EL150 AMF250C AMF-EL250 AMF350C AMF-EL350 AMF450C AMF-EL450 AMF550C AMF-EL550 AMF650 AMF-EL650 AMF850 AMF-EL850 AMF800 63271 AMF801 63271 AMF900 63271(3 pcs. required) AMF901 63271(3 pcs. required) AMF1000 63271(5 pcs. required)
-
* The bodies of the AMD800 to 1000 and their corresponding elements differ from the photo.
* The life of the element is 1 year, or when the pressure drops to 0.1 MPa.
-

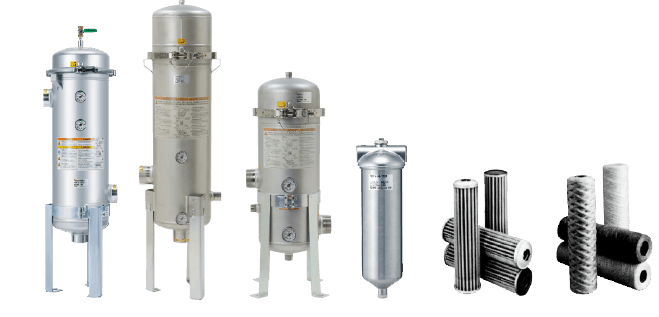

SMC Industrial Filters
Applicable fluids
Industrial water / Cooling water / Coolant / Cleaning fluid / Lubricating oil, etc.
- For details
