Vacuum Pads (Vacuum Suction Cups)

Vacuum Pad For Film Adsorption (Vacuum Suction Cup) ZP3P

    ・Good for film packaging applications
    ・This product uses silicone rubber compliant with the FDA (USA Food and Drug Administration) regulation 21CFR§177.2600 for “Rubber articles intended for repeated use.”
    ・Blue colored pad
    ・Reduced leakage
    ・Reduction of wrinkles made on thin workpieces (film, vinyl, etc.) during adsorption
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Vacuum Equipment/Precautions　Vacuum Pads/Precautions
Series Variations/Model Selection　Applicable Pad List/Adapter Buffe No.　Green Procurement (RoHS)
SeriesPad formPad diameter(mm)
ZP3PFor film adsorptionφ20,φ25,φ35,φ50

Features

Good for film packaging applications where the shape of the workpiece changes easily from being lifted.



Silicone rubber compliant with the FDA (USA Food and Drug Administration) 21CFR§177.2600 elution test is used.



Blue colored pad

Easy to distinguish the vacuum pad by color during contamination inspection.

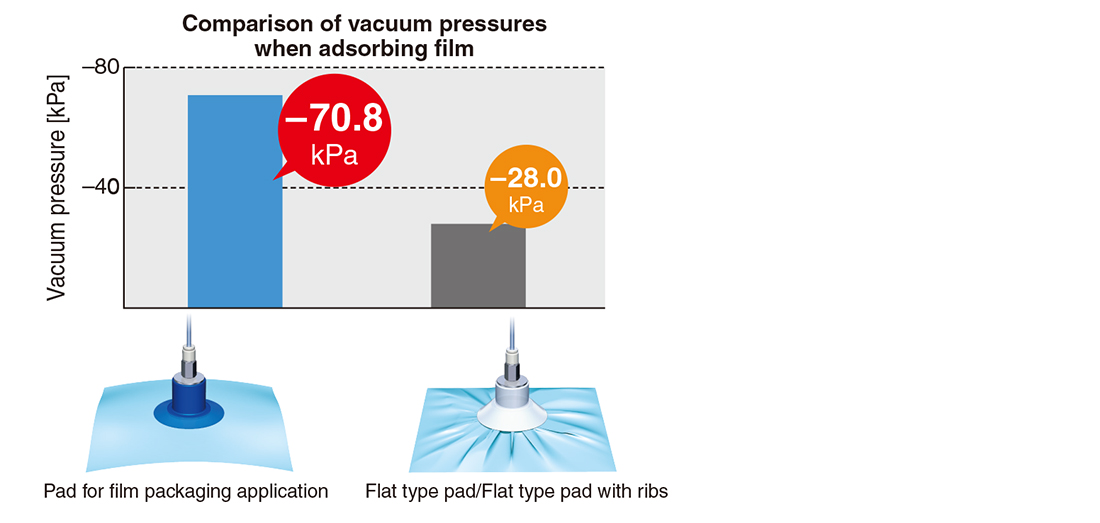

Reduced leakage

Sealing skirt design, better sealing performance even for thin films.

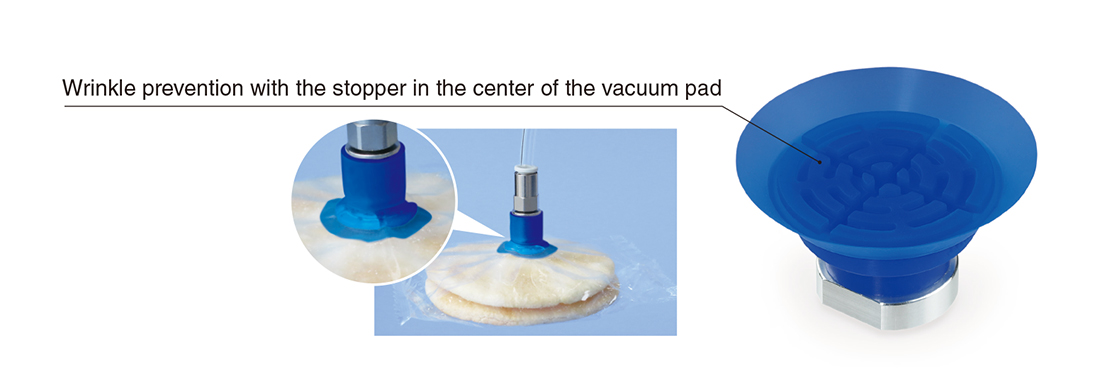

Reduction of wrinkles made on thin workpieces (film, vinyl, etc.) during adsorption

Wrinkle prevention with the stopper in the center of the vacuum pad

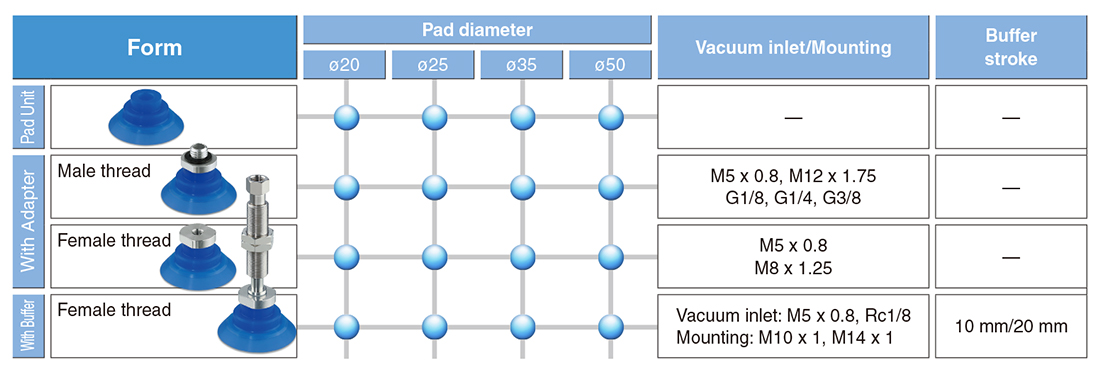

Variations
