Controllers

Air Flow Controller IN502-44/45/46

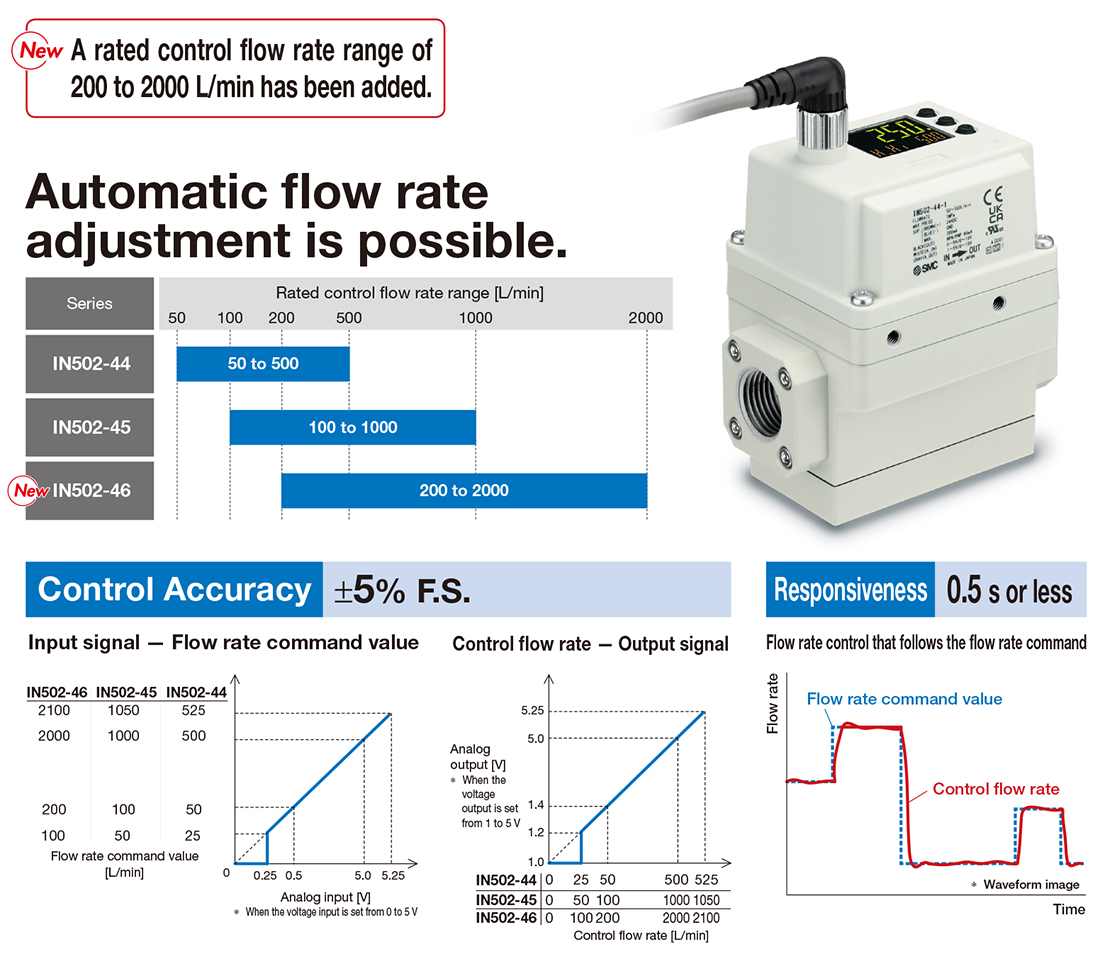

    ・A rated control flow rate range of 200 to 2000 L/min has been added.New
    ・Automatic flow rate adjustment is possible.
    ・Dry air, N₂
    ・Control accuracy: ±5% F.S.
    ・Responsiveness: 0.5 s or less
    ・Space saving/Reduced piping, wiring, and installation labor
    ・Various types of grease can be selected.
    　Grease compatible with low dew points, White vaseline, Grease for food
    ・IO-Link compatible
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Air Flow Controller IN502-44/45/46
    Manual
    Series View search result
    IN502-44/45/46View search result
  • Air Flow Controller IN502-44/45/46
    DoC
    Series View search result
    IN502-44/45/46View search result
Safety Instructions　Green Procurement (RoHS)
SeriesRated control flow rate range
(L/min)		Set control flow rate range
(L/min)
IN502-44/45/4650 to 500
100 to 1000
200 to 000		25 to 525
50 to 1050
100 to 2100

Features

Automatic flow rate adjustment is possible.

Space saving/Reduced piping, wiring, and installation labor

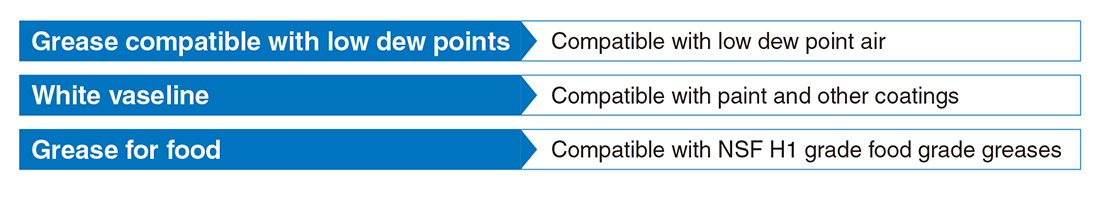

Various types of grease can be selected.

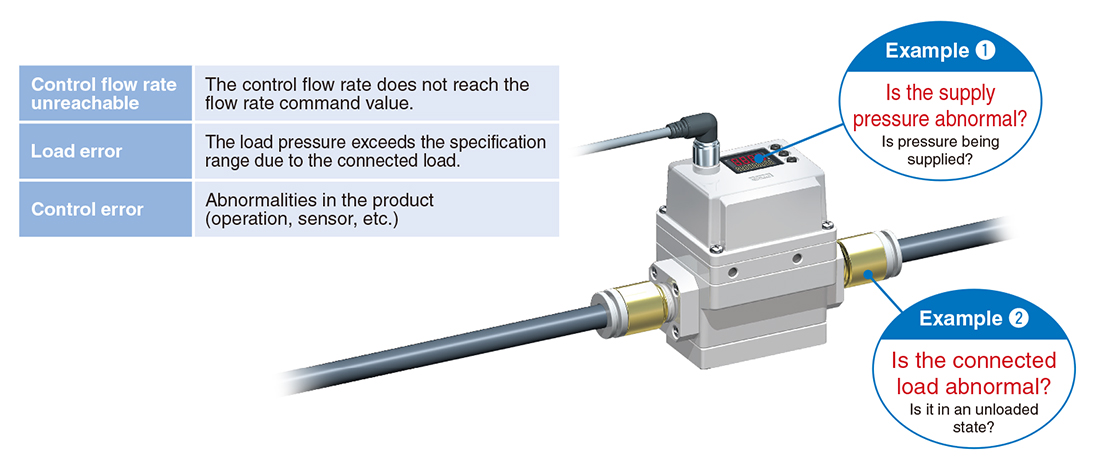

Various control diagnostics

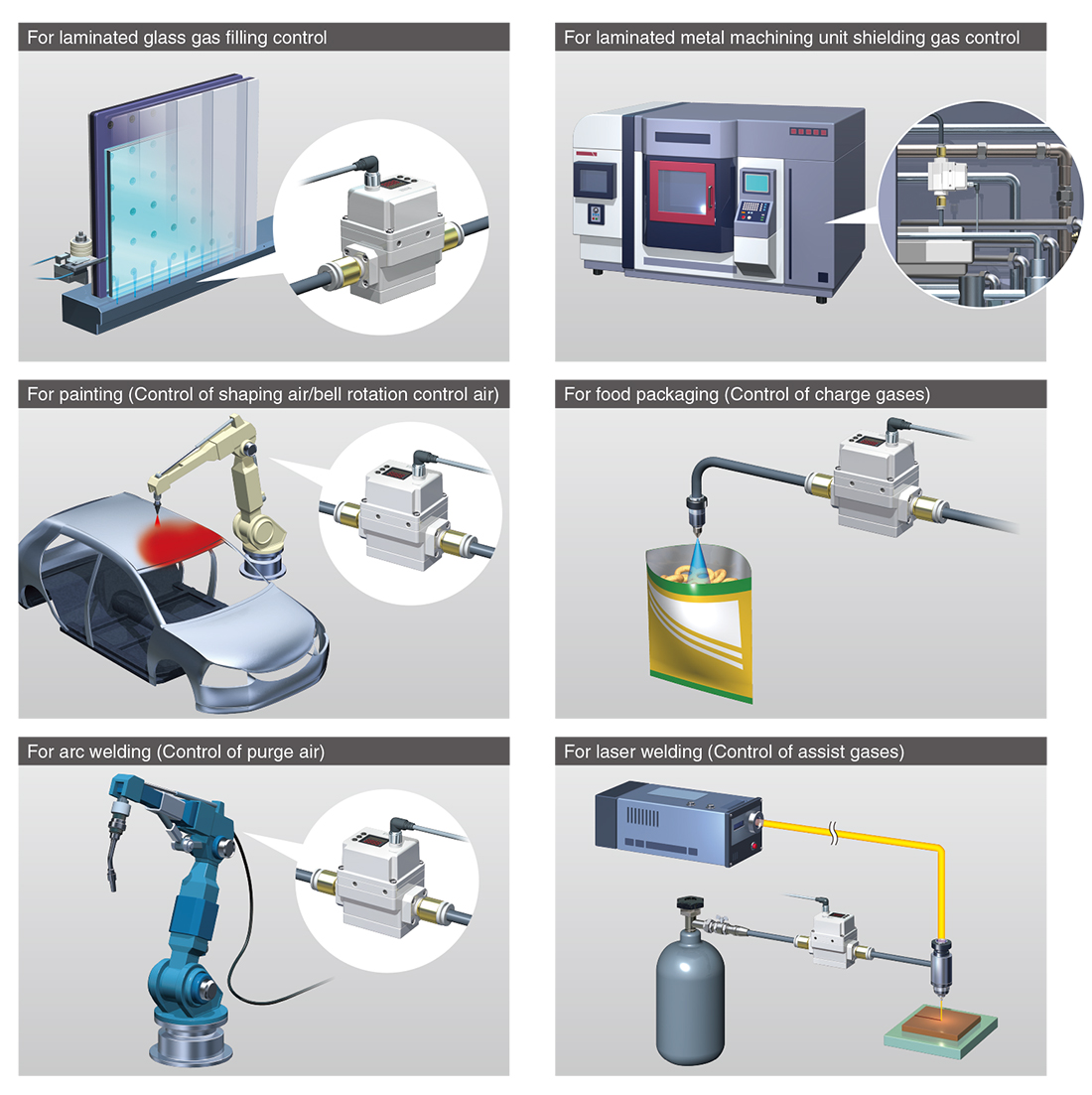

Applications

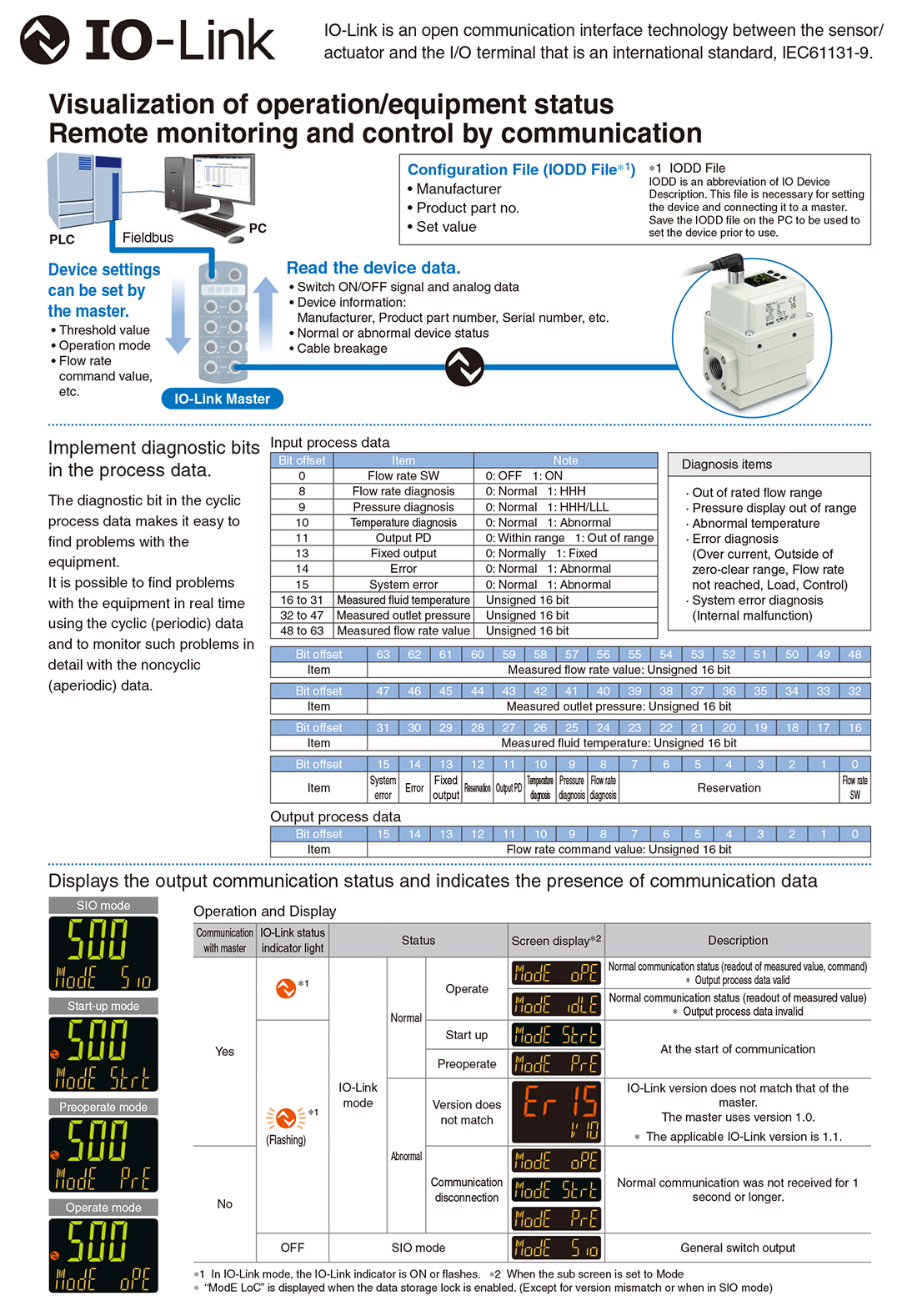

IO-Link compatible

Visualization of operation/equipment status Remote monitoring and control by communication

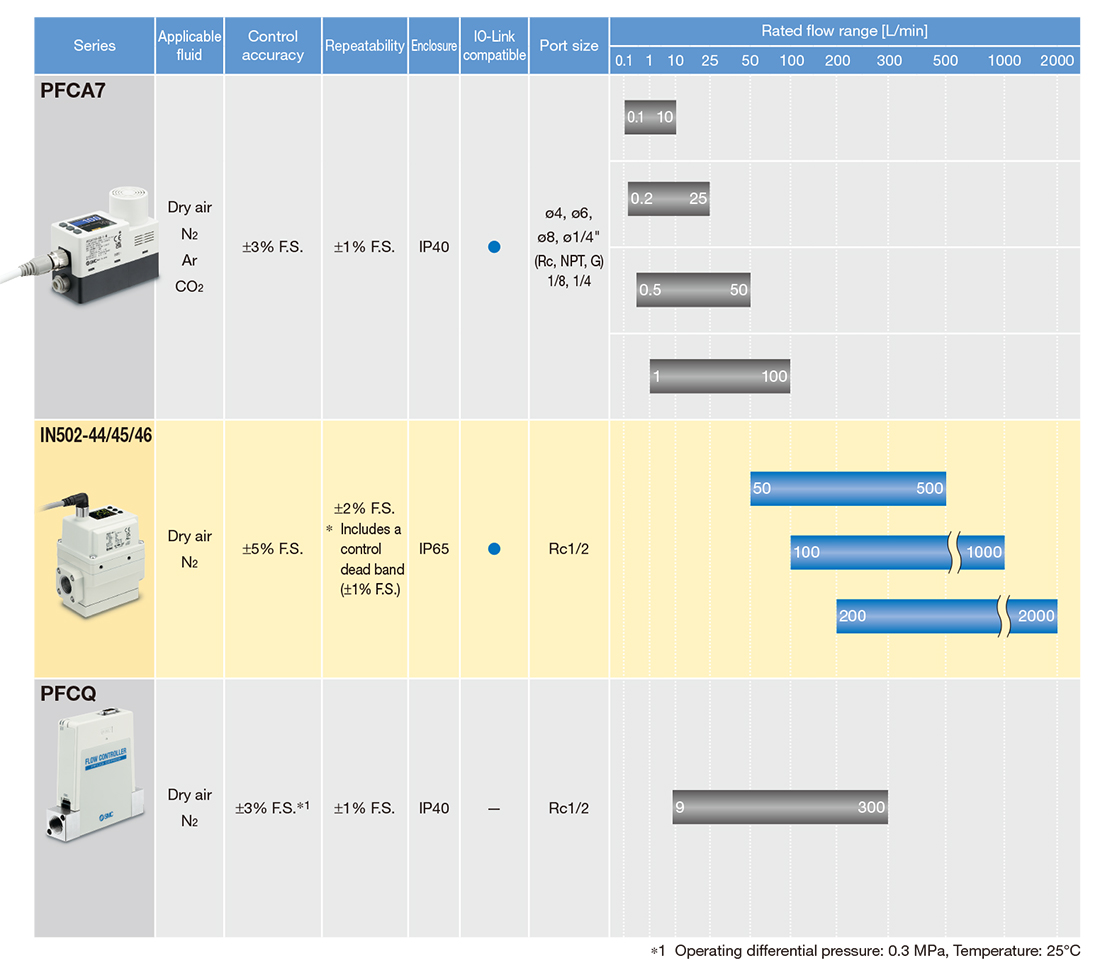

Flow Controller Flow Rate Variations
