Blow Guns

OSHA Standard Compliant Nozzle for One-touch Fitting KNA(G)-Q10-180

    ・Compliant with OSHA Standard 1910.242(B)
    　The structure prevents closing of the discharge port.
    　This is a safety design that limits the pressure to 30 psi even when
    　an operator is touching the nozzle.
    　(Operating pressure: 0.5 MPa or less)
    ・CO2 emissions (Air consumption): 42% reduction
    ・Low noise: Max. 8 dB(A) reduction∗
    　∗ Compared with the existing model: nozzle for One-touch fitting
    　 (resin type) KN-Q10A-200
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • OSHA Standard Compliant Nozzle for One-touch Fitting KNA(G)-Q10-180
    Manual
    Series Type View search result
    KNA-Q10-180Nozzle for One-touch fittingView search result
    KNAG-Q10-180Nozzle for One-touch fittingView search result
Safety Instructions　Green Procurement (RoHS)
SeriesTypeNozzle diameterMaterial
KNA-Q10-180Nozzle for One-touch fittingEquivalent to ø1.8PBT
KNAG-Q10-180Nozzle for One-touch fittingEquivalent to ø1.8Stainless steel 316

Features

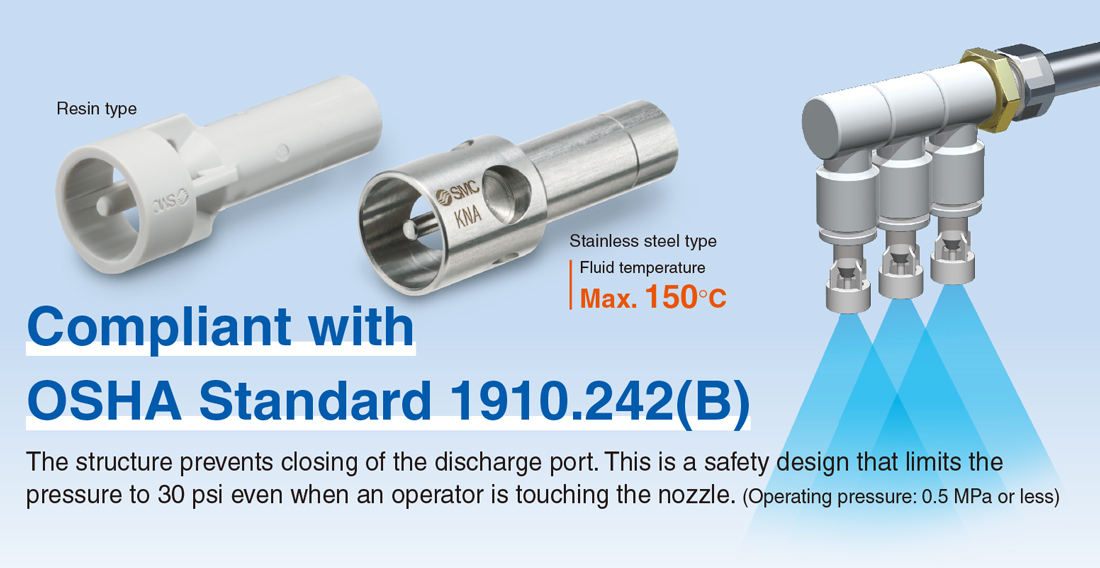

Compliant with OSHA Standard 1910.242(B)

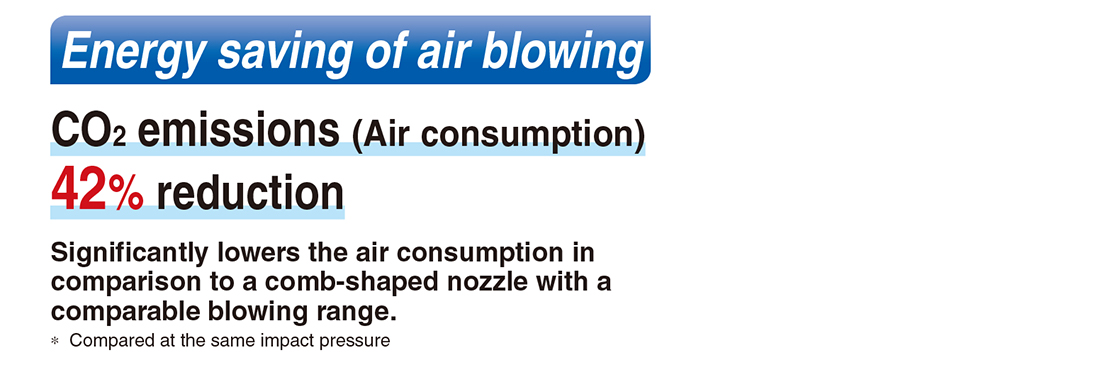

Energy saving of air blowing

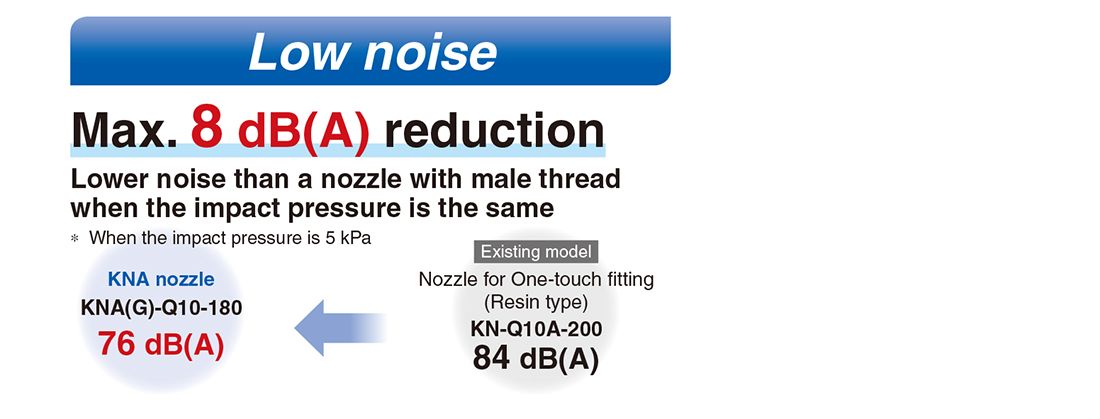

Low noise

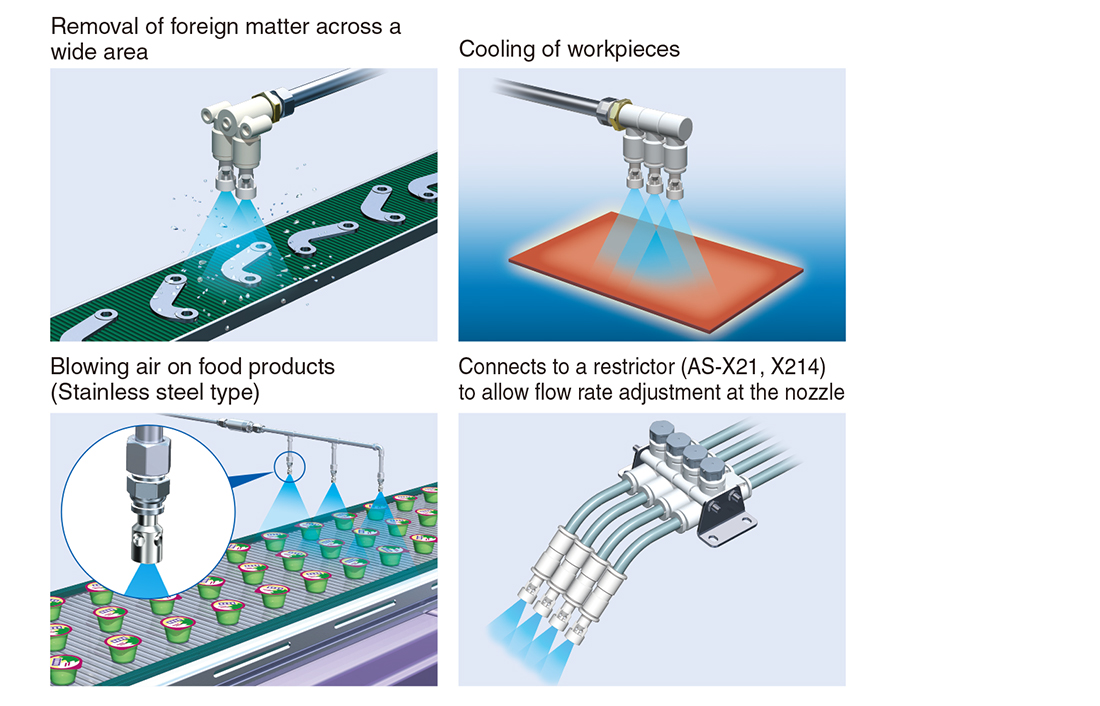

Application Examples

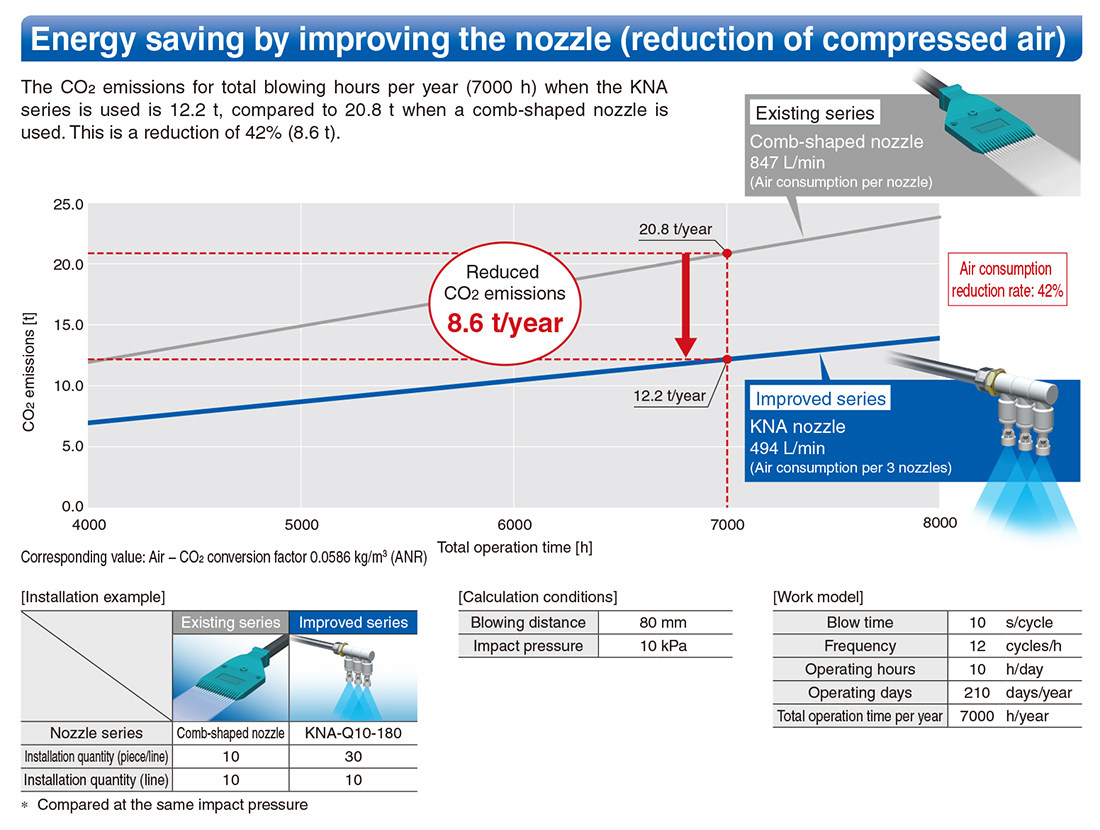

Energy saving by improving the nozzle (reduction of compressed air)

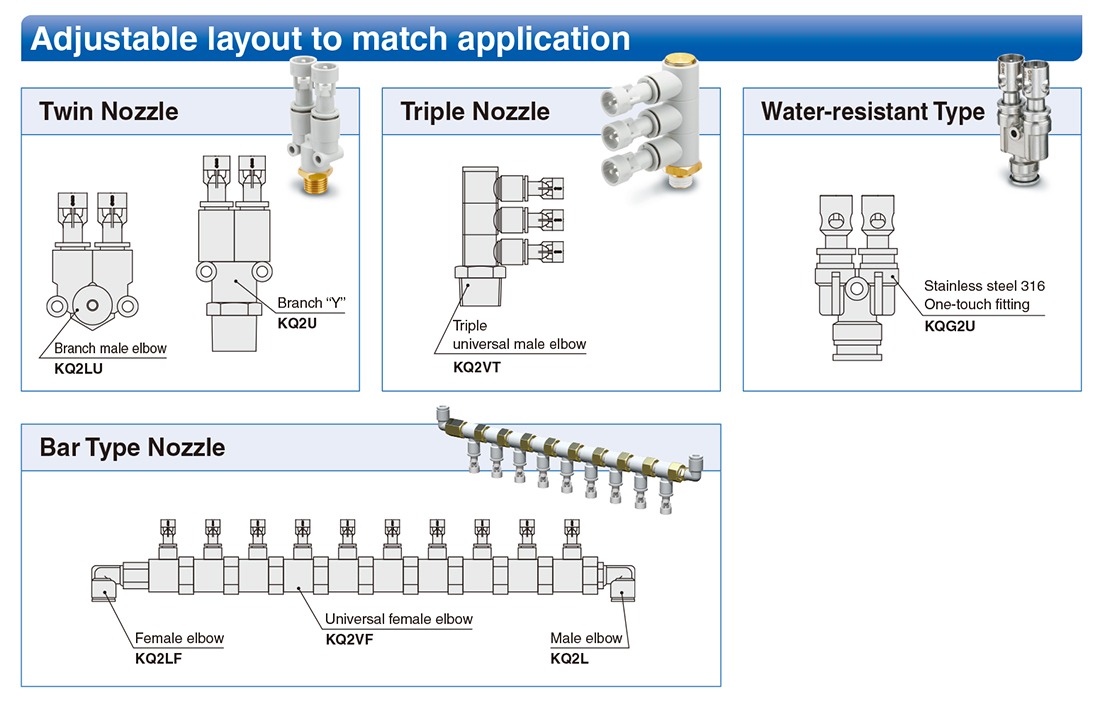

Adjustable layout to match application
