Parallel Type Air Grippers

Environmentally Resistant 3-Finger Air Gripper MHS3-X6708□

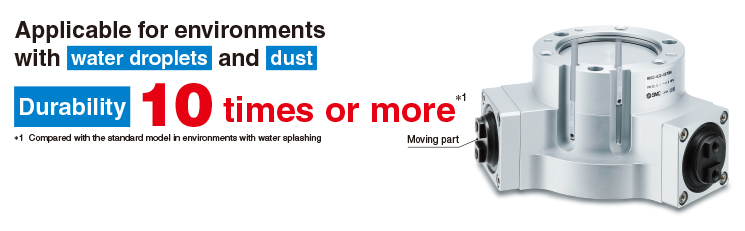

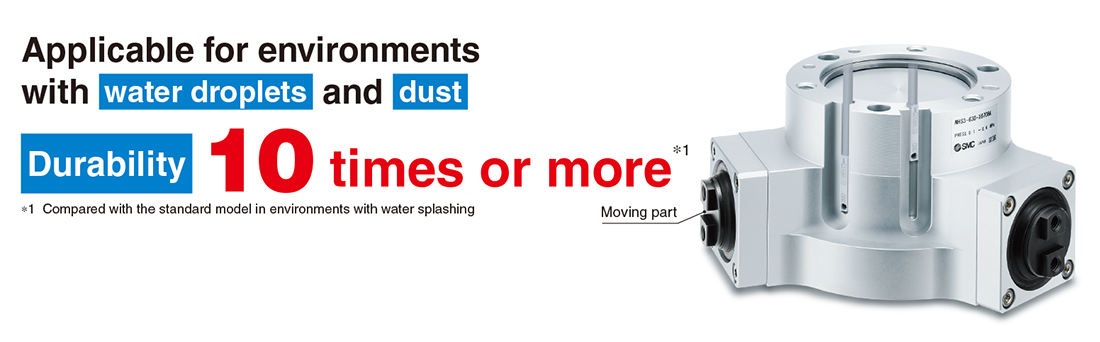

    ・Applicable for environments with water droplets and dust
    　Durability: 10 times or more (Compared with the standard model
    　in environments with water splashing)

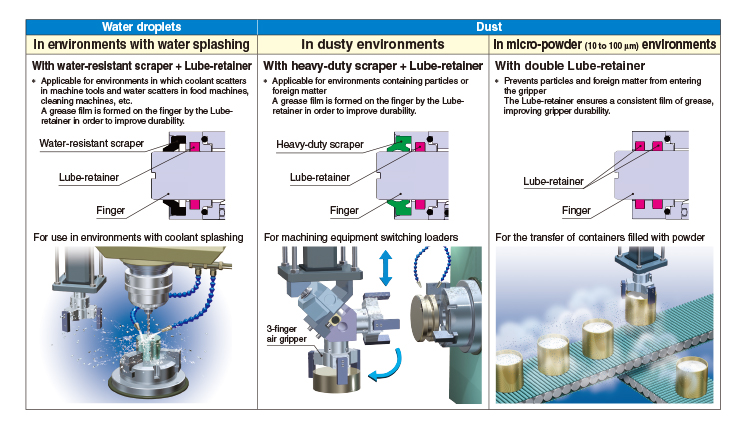

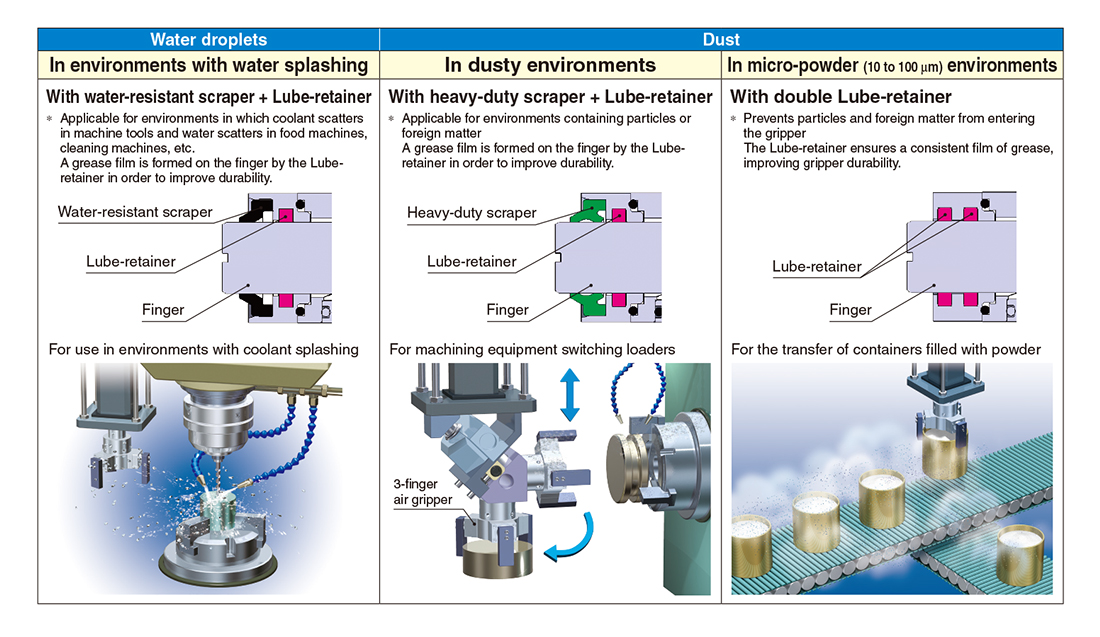

    ・A variety of scrapers and Lube-retainers for various applications (environments)
    　are available.

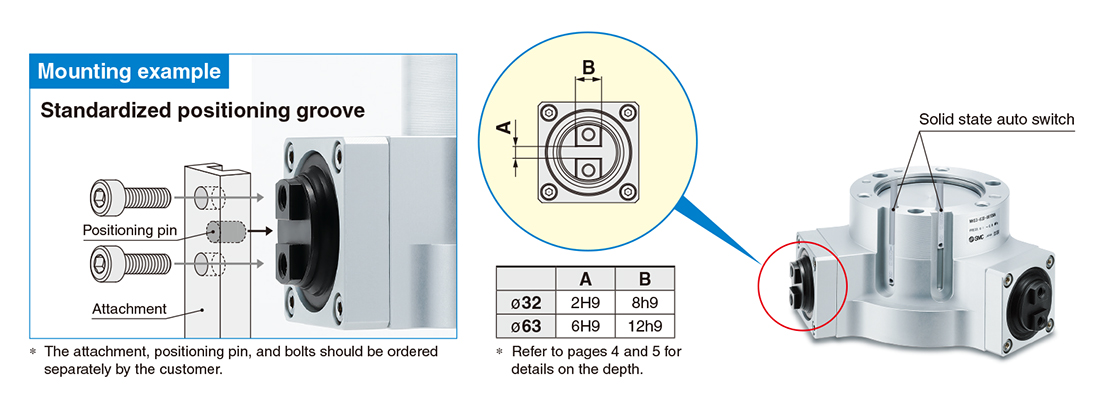

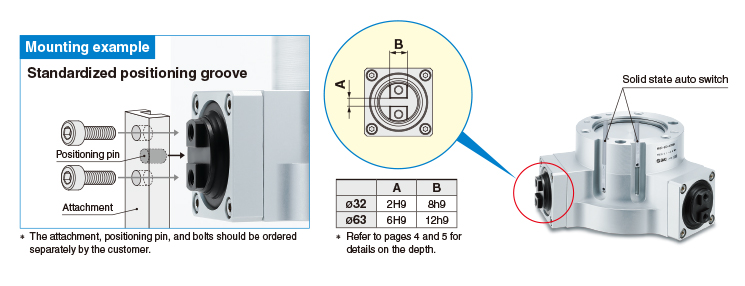

    ・Improved attachment position reproducibility
    ・Solid state auto switches are mountable.
    　Applicable auto switch: D-M9m
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
Safety Instructions　Air Grippers/Precautions　Auto Switches/Precautions
Air Grippers Series Variations/Model Selection　Green Procurement (RoHS)
TypeSeriesCylinder bore size (mm)
Environmentally resistantMHS3-X6708□32，63

Features

Applicable for environments with water droplets and dust

A variety of scrapers and Lube-retainers for various applications (environments) are available.

Improved attachment position reproducibility

Solid state auto switches are mountable.

Applicable auto switch: D-M9□
