Regulators
Regulator IR1200-A/2200-A/3200-A
-
・Air consumption: Bleed air “0”
・High flow rate: Up to approx.
twice that of the existing SMC product
・Lightweight: Reduced by up to approx. 27%
(Compared to the existing SMC product)
・Repeatability: ±1% (Full span)
| Series | Port size | Set pressure (MPa) |
|---|---|---|
| IR1200-A | 1/8 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR2200-A | 1/4 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
| IR3200-A | 1/4, 3/8, 1/2 | 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 |
Features

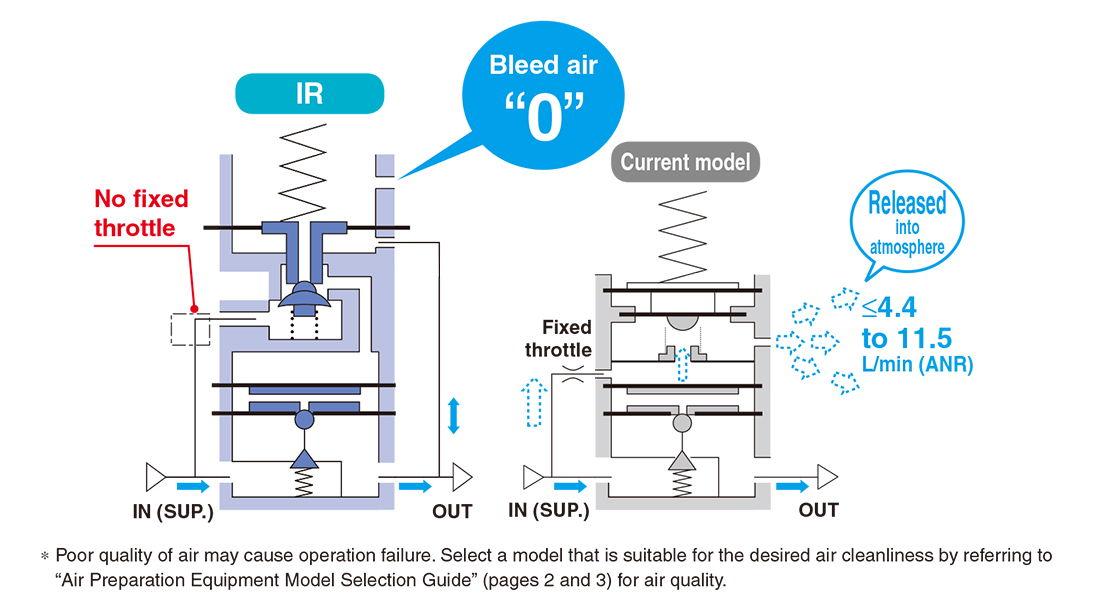

■Reduction in air consumption: Bleed air "0"
Air consumption is reduced with a new original structure.

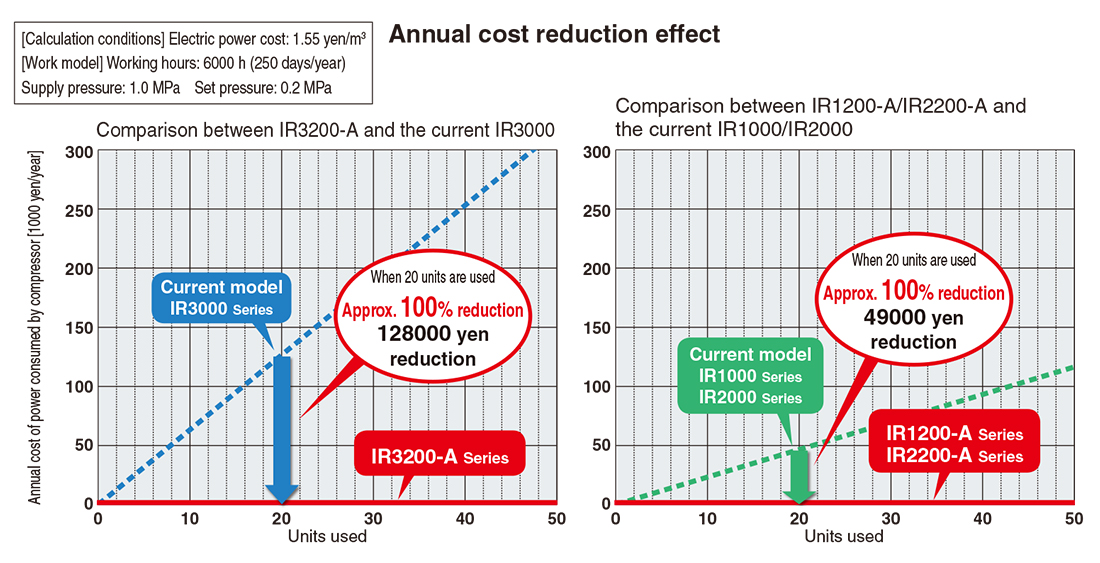

With this new original structure, running costs are reduced.
No fixed throttle in the new design.

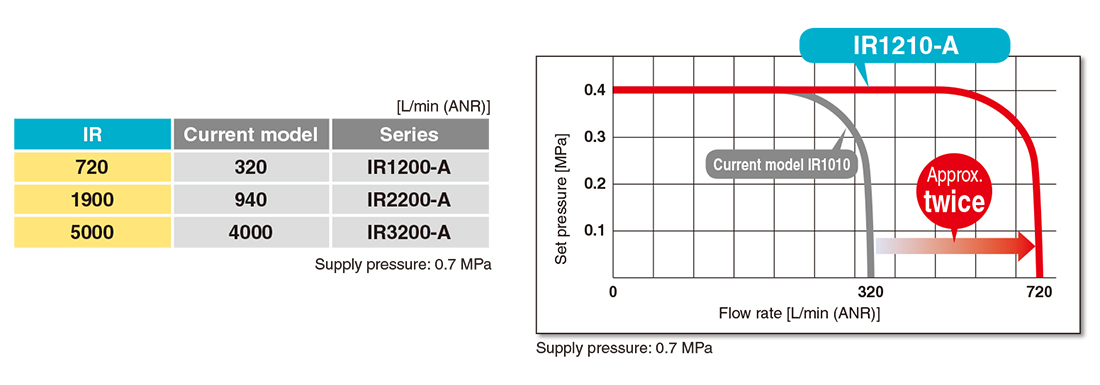

Flow rate: Up to approx. twice (Compared to the current SMC product)

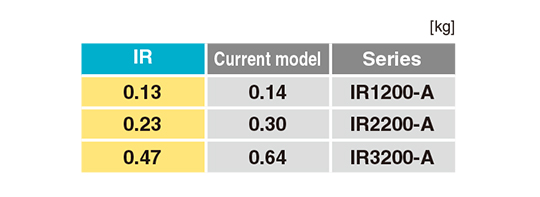

■Weight: Reduced by up to
approx. 27%
approx. 27%
■Repeatability: ±1% (Full span)
■Mounting is interchangeable with the current SMC model.

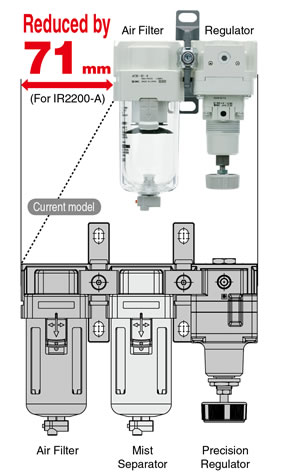

■Space saving
New structure without fixed throttle does not require a mist separator.

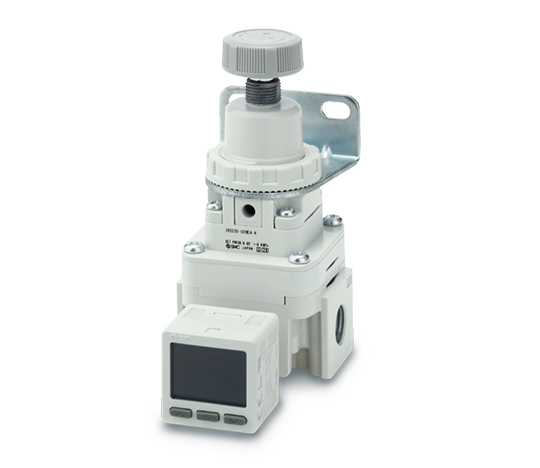

■Digital pressure switch standardized

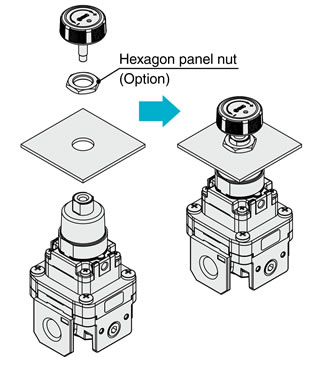

■Hexagon panel nut mounting
* Interchangeable with the current SMC product

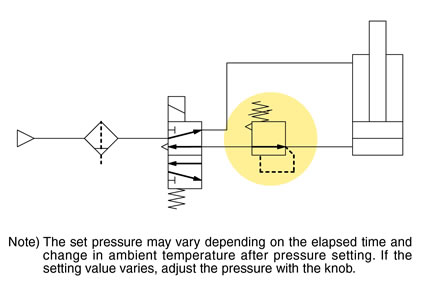

■New IR can be used between a cylinder and solenoid valve.

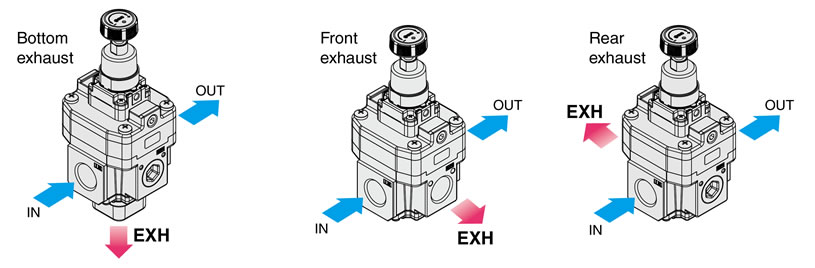

■Exhaust (EXH) directions can be selected. (Series IR3200-A)
Bottom and front exhaust added.

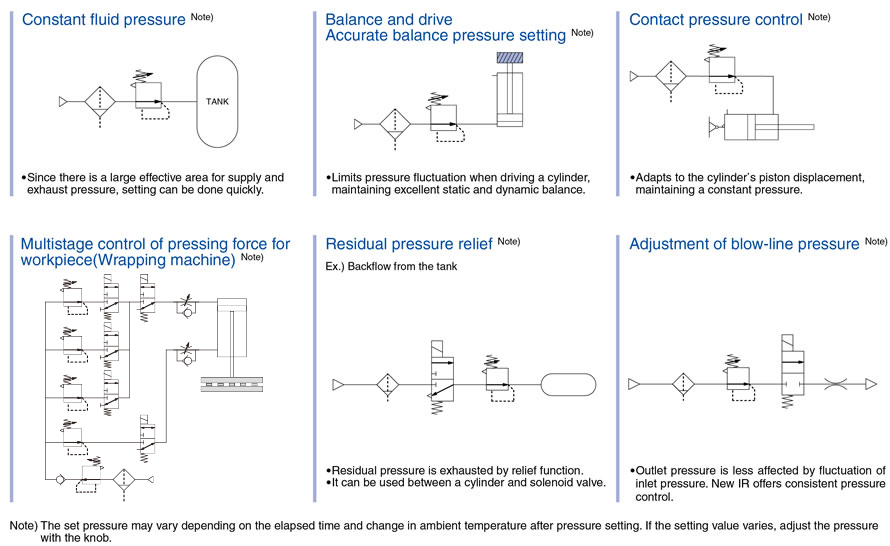

■Application Examples

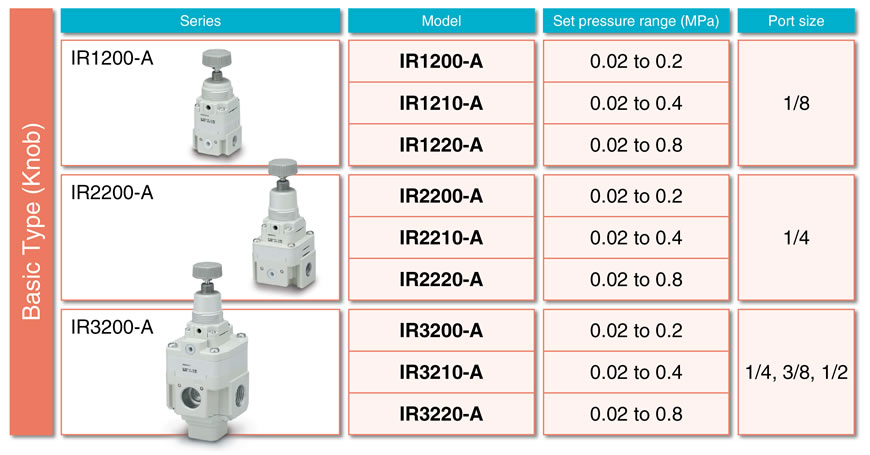

■Series Variations
