Industrial Device Communication Equipment: DeviceNet Compatible Products

Serial Transmission System EX260

    For Output

    ∗The applicable protocols differ depending on the series.
    　For details, refer to the catalog of each series.

    ・IP67
    ・RJ45 communication connectors (X205)

    　▶IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Serial Transmission System EX260
    Manual
    Series View search result
    EX260View search result
  • Serial Transmission System EX260
    DoC
    Series View search result
    EX260View search result
Safety Instructions　3/4/5 Port Solenoid Valves/Precautions　Fieldbus System Precautions
Industrial IoT Cybersecurity　Glossary of Fieldbus Terms　Series Variations/Applicable Valve Series　Safety over Fieldbus with PROFIsafe　Green Procurement (RoHS)　IO-Link Master
SeriesEnclosureCommunication protocol∗Applicable valve
EX260IP67DeviceNet™
PROFIBUS DP
CC-Link
EtherCAT
PROFINET
EtherNet/IP™
Ethernet POWERLINK
IO-Link (Only available for SY, JSY, VQC communication connectors)
PROFIsafe (Only available for SY, JSY, VQC communication connectors)		SY3000，5000，7000 (Plug-in)
JSY1000，3000，5000 (Plug-in)
VQC1000，2000，4000，5000
SV1000，2000，3000
S0700（IP40）

Features

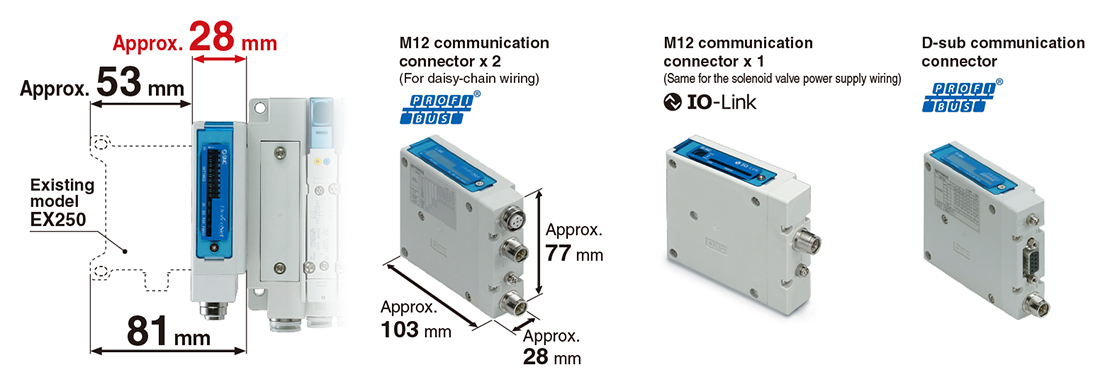

Compact design for space-saving installation: Approx. 28 mm

Manifold length reduced by approx. 53 mm

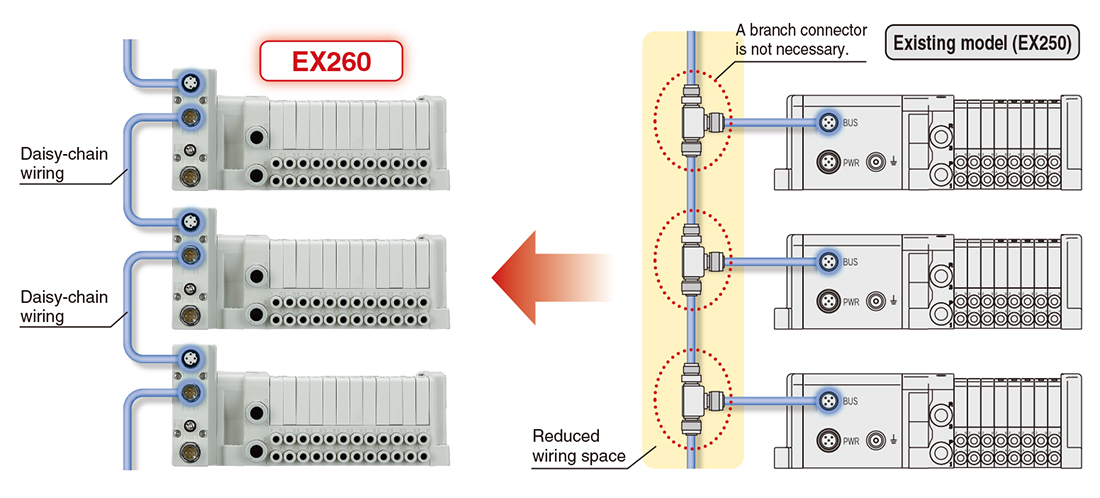

Daisy-chain wiring communication is possible.＊

A branch connector is not necessary/Reduced wiring space
＊Excludes the units compatible with IO-Link

  • Wiring and piping from the same direction is possible.(for side ported)

  • An external terminating resistor is not necessary.(Only available for M12 PROFIBUS DP, CC-Link communication connectors)

    ON/OFF switching is possible with an internal terminating resistor.
    An external terminating resistor is not necessary.

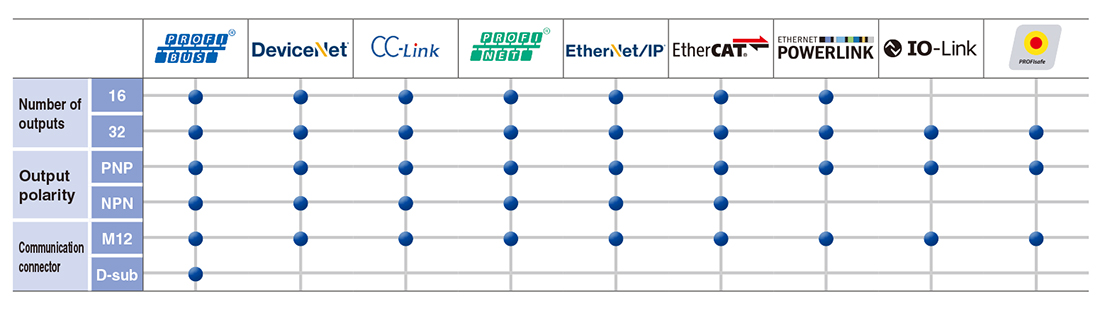

Product Specification Variations

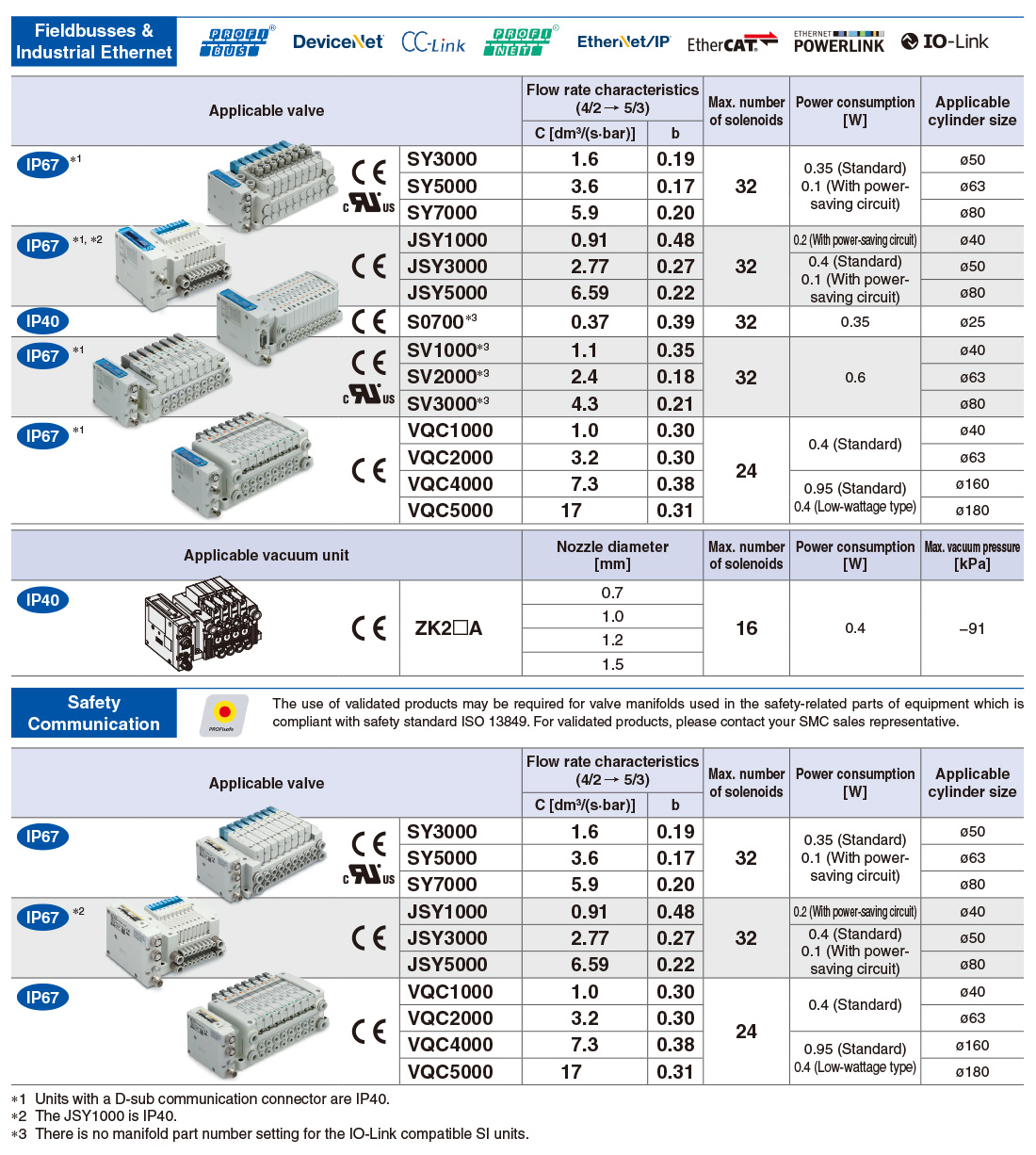

Applicable Valve Series

IO-Link compatible

Supports safety communication (PROFIsafe)
