Tool Operation Type Speed Controllers

Flat Head Screwdriver Adjustable Metal Speed Controller with One-touch Fitting ASB-D

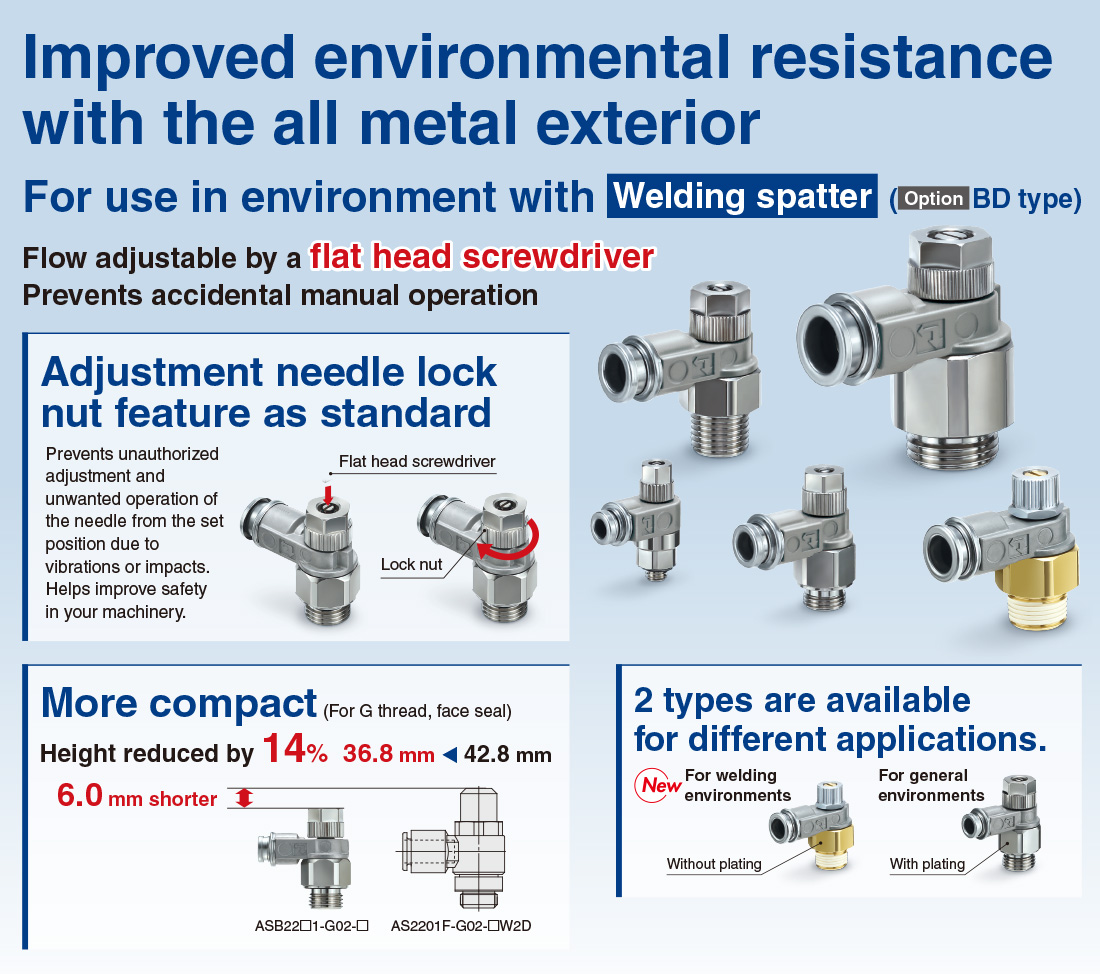

    ・Improved environmental resistance with the all metal exterior
    ・Flow adjustable by a flat head screwdriver
    　Prevents accidental manual operation
    ・Adjustment needle lock nut feature as standard
    　Prevents unauthorized adjustment and unwanted operation of the needle from the set position due to vibrations or impacts.
    　Helps improve safety in your machinery
    ・More compact: Height reduced by 28% (For G thread, face seal)
    ・2 types are available for different applications.
    　For welding environments and for general environments
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Flat Head Screwdriver Adjustable Metal Speed Controller with One-touch Fitting ASB-D
    Manual
    Type Series View search result
    Metal body, Elbow typeASB-DView search result
Safety Instructions　Flow Control Equipment/Precautions　Series Variation
Green Procurement (RoHS)
TypeSeriesPort size on
the cylinder side		Applicable tubing O.D.
Metric size		Applicable tubing O.D.
Inch size
Metal body, Elbow typeASB-DM5×0.8
10-32UNF
R,G,NPT 1/8 to 1/2		φ4 to φ12φ5/32'' to φ1/2''

Features

For use in environment with welding spatter (Option BD type)

Flow adjustable by a flat head screwdriver Prevents accidental manual operation

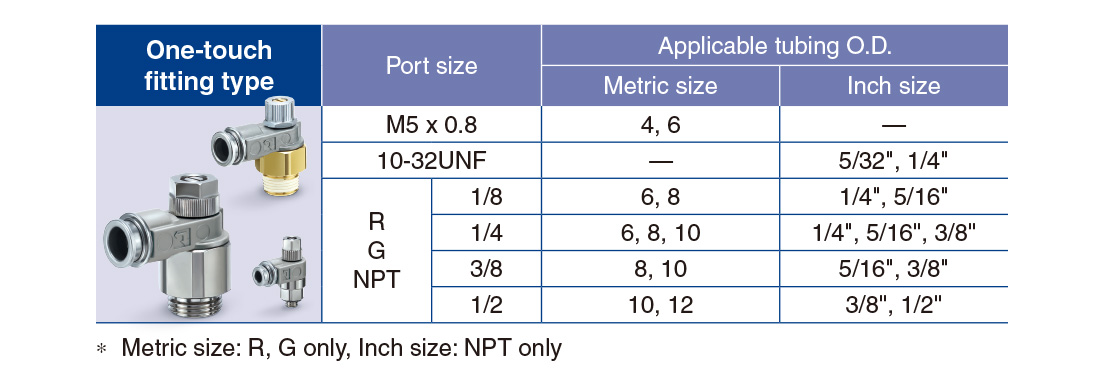

Variations

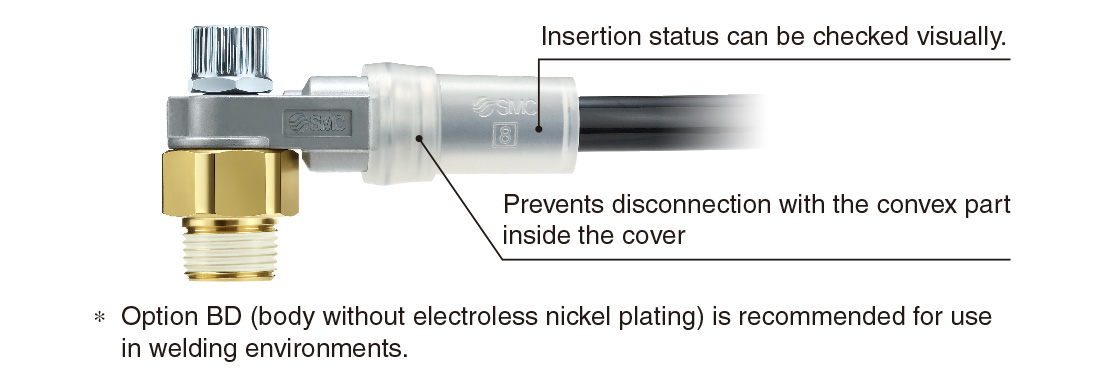

Related equipment: Spatter cover

Prevents adhesion and entry of welding spatters
Made of flexible silicone rubber which conforms to the tube
