e-Actuator
e-Actuator Easy to Operate Integrated Controller/Slider Type EQFS□H
-
・Size 16 has been added.
・Easy to set up, just like air equipment!
Two position stop with no programming required
Three position stop with no programming required
Cycle time can be set in all control modes.
・Downsized with Integrated Controller, Wiring saving,
Labor saving · Programless · Reduced adjustment time
・Annual CO2 emissions reduced by up to 59% through motor control
optimization(SMC comparison)
5.8 kg-CO2e/year (14.1) ∗ The numerical values vary depending on the
operating conditions.
Safety Instructions Electric Actuators/Precautions Auto Switches/Precautions Green Procurement (RoHS)

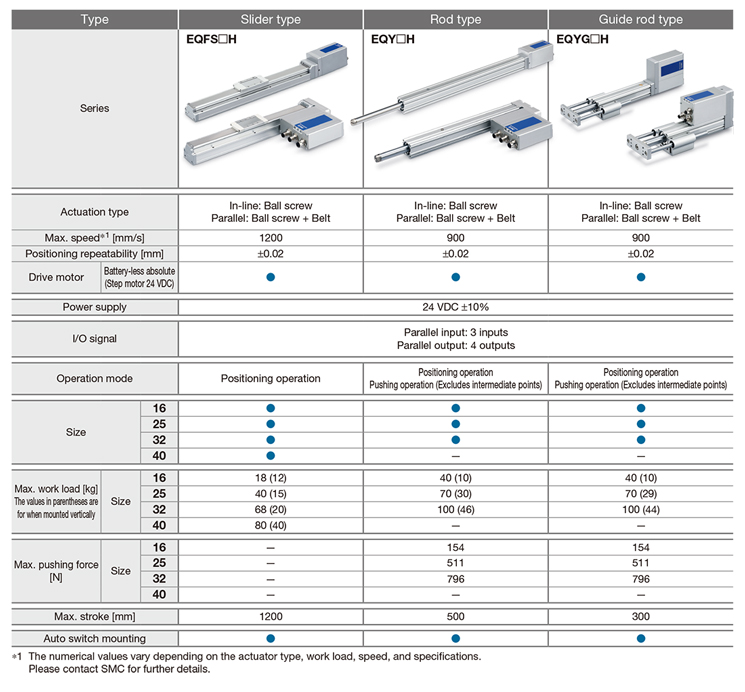

| Specification | Model | Stroke （mm） | Work load （kg） Horizontal | Speed （mm/s） | Screw lead （mm） |
|---|---|---|---|---|---|
| Battery-less absolute (Step motor 24 VDC) | EQY16□H | 50 to 500 | MAX.18 | MAX.800 | 2.5, 5, 10 |
| Battery-less absolute (Step motor 24 VDC) | EQFS25□H | 50 to 800 | Max. 40 | Max. 1200 | 3, 6, 12, 20 |
| Battery-less absolute (Step motor 24 VDC) | EQFS32□H | 50 to 1000 | Max. 68 | Max. 1100 | 4, 8, 16, 24 |
Features
Easy to set up, just like air equipment!
Two position stop with no programming required
Three position stop with no programming required
Cycle time can be set in all control modes.
Annual CO2 emissions reduced by up to 59% through motor control optimization (SMC comparison)

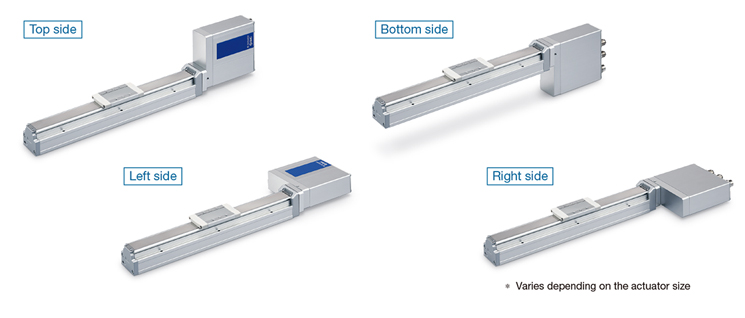

Can be selected from 4 directions (In-line motor type)

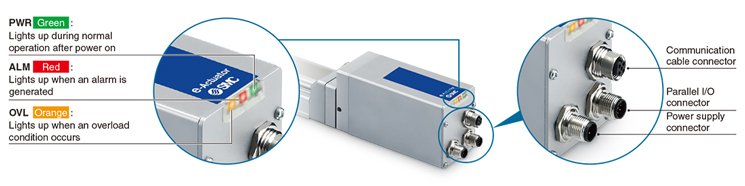

LEDs indicate the load condition./Increased metal connector strength
Restart from the last stop position is possible.
Detection of table stop position by means of an auto switch is possible.
