Air Dryers

Refrigerated Air Dryer/Double Energy Saving Function Series IDF100FS/125FS/150FS

    ・Energy-saving design (Second re-heater + Digital scroll compressor)
    ・Power consumption: Reduced by up to 76%
    ・Exhaust heat: Reduced by up to 25%
    ・Tolerant of high temperature environments!
    ・Ambient temperature: Up to 45ºC, Inlet air temperature: Up to 60ºC
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Air Preparation Equipment/Precautions
Model Selection Guide/Quick Reference Guide　Green Procurement (RoHS)
SeriesApplicable
compressor (kW)		Air flow capacity
（m3/min［ANR］）
50 Hz		Air flow capacity
（m3/min［ANR］）
60 Hz
IDF100FS1001618.8
IDF125FS12520.123.7
IDF150FS1502527

Features

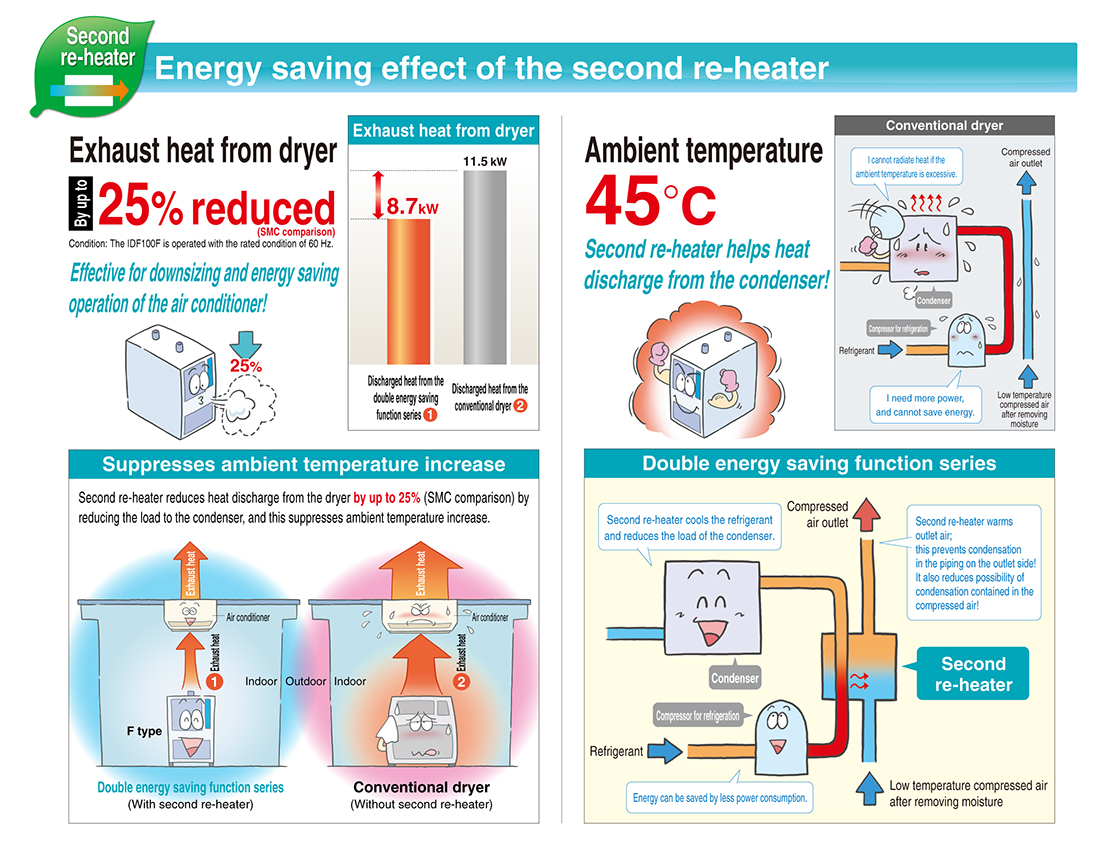

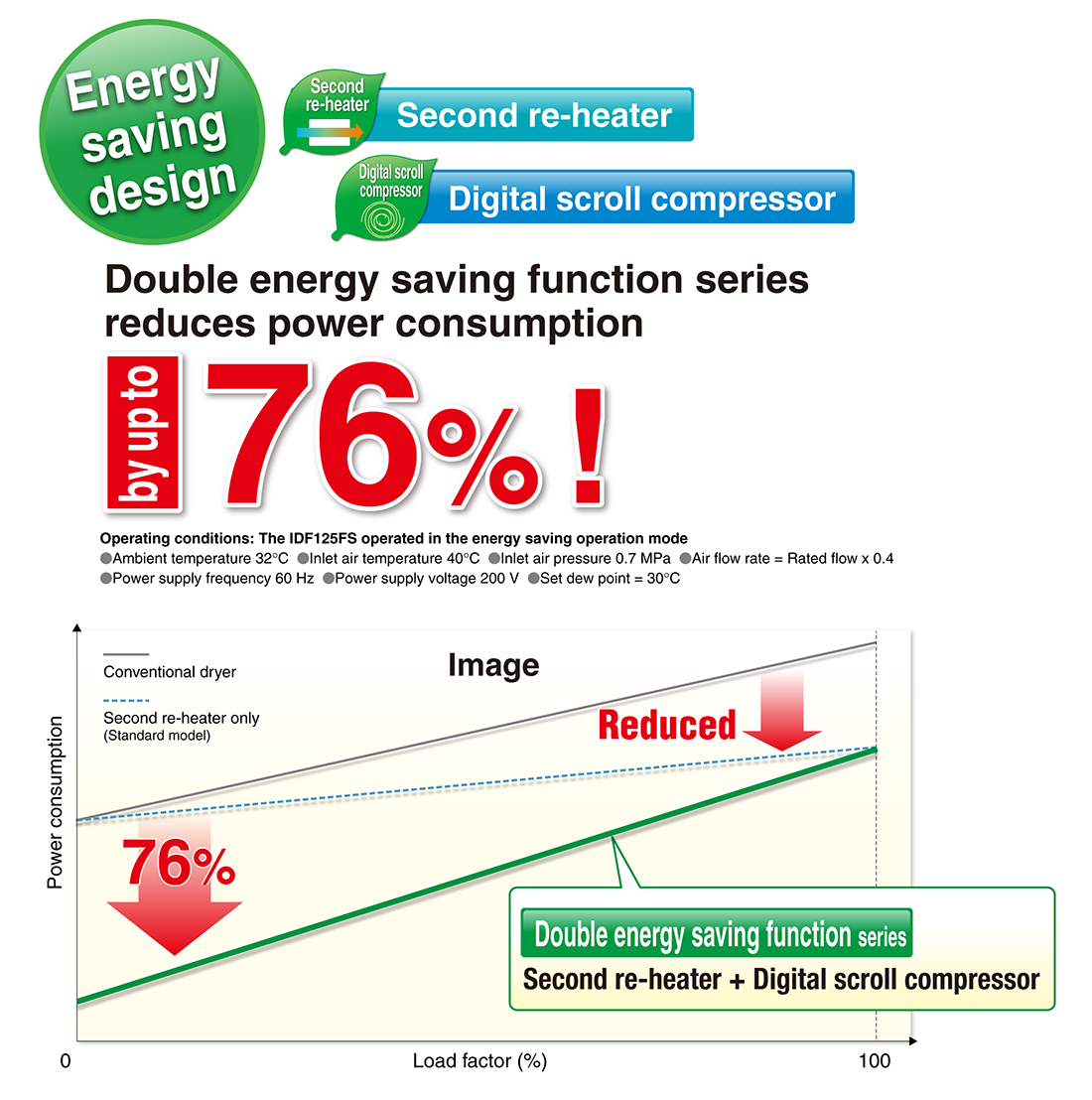

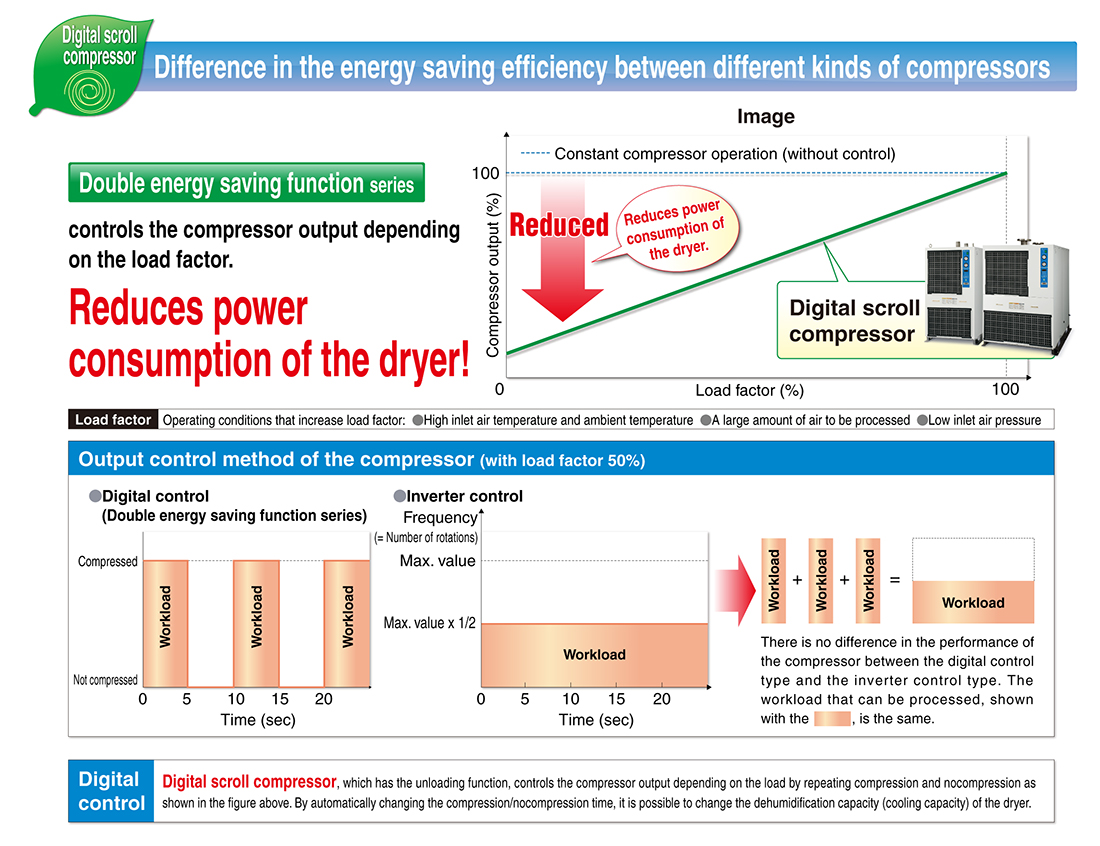

Energy saving design Second re-heater plus Digital scroll compressor

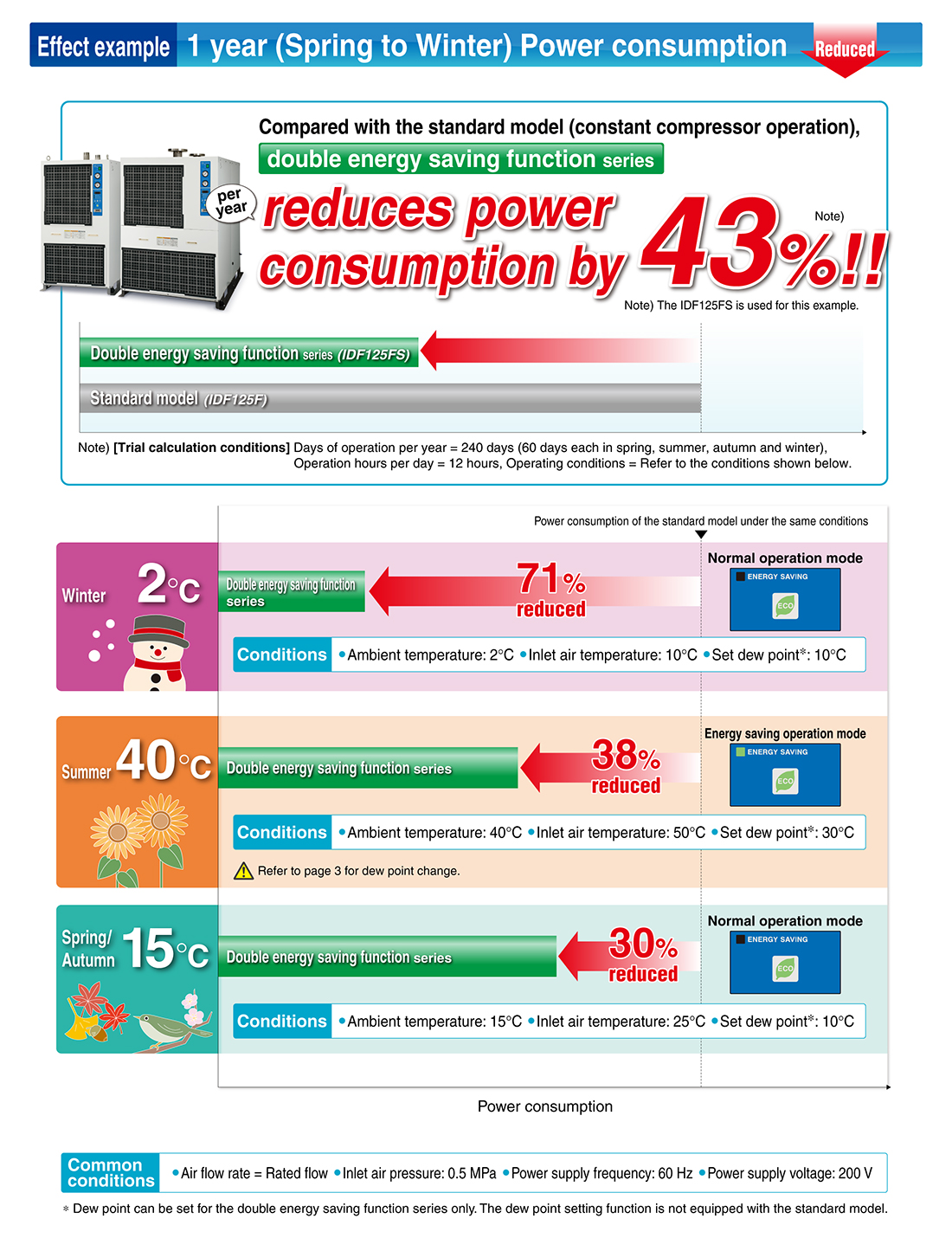

Effect example: 1 year (Spring to Winter) Power consumption

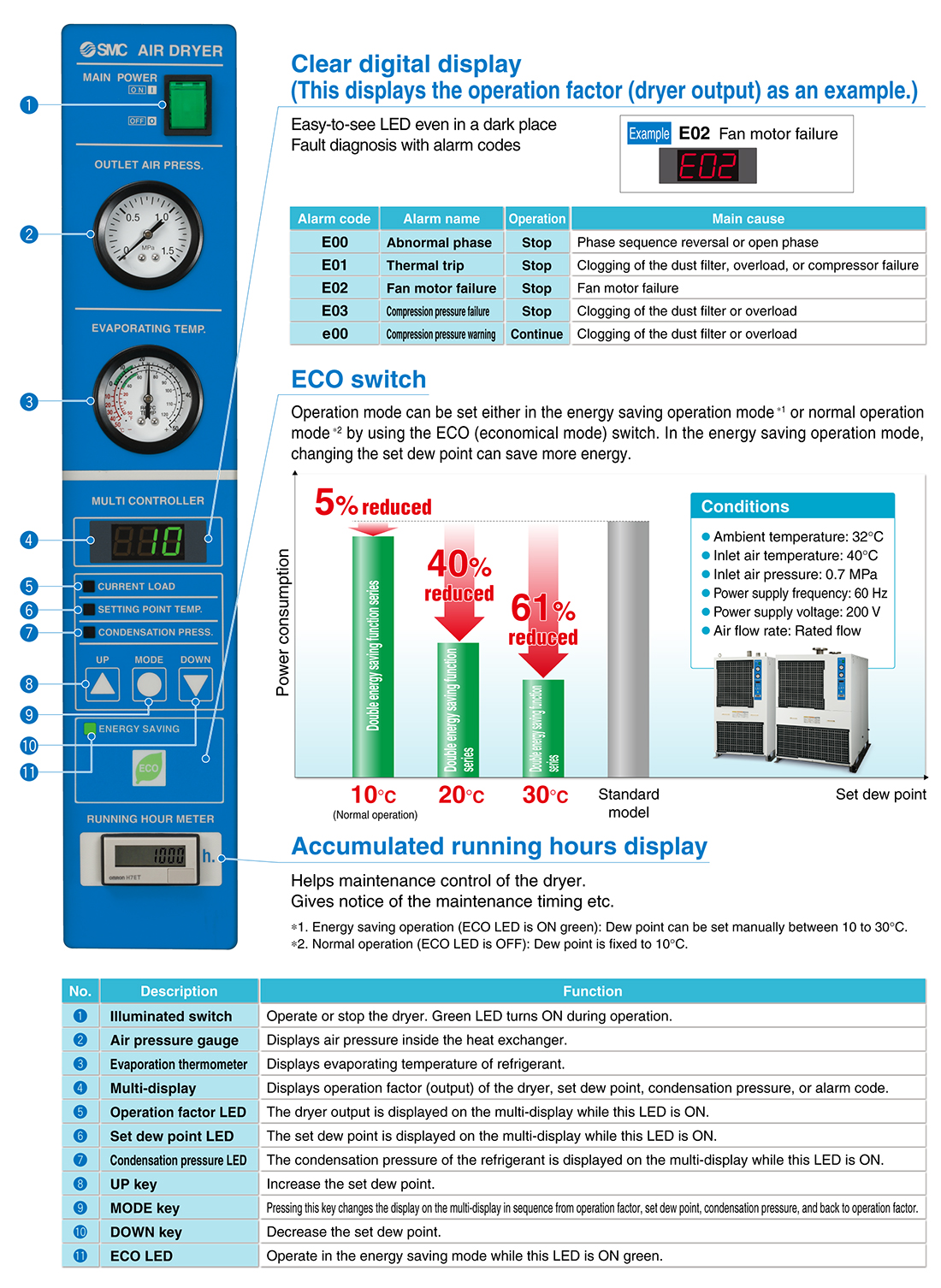

Convenient functions

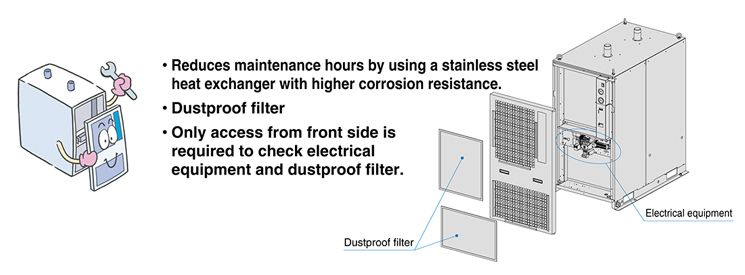

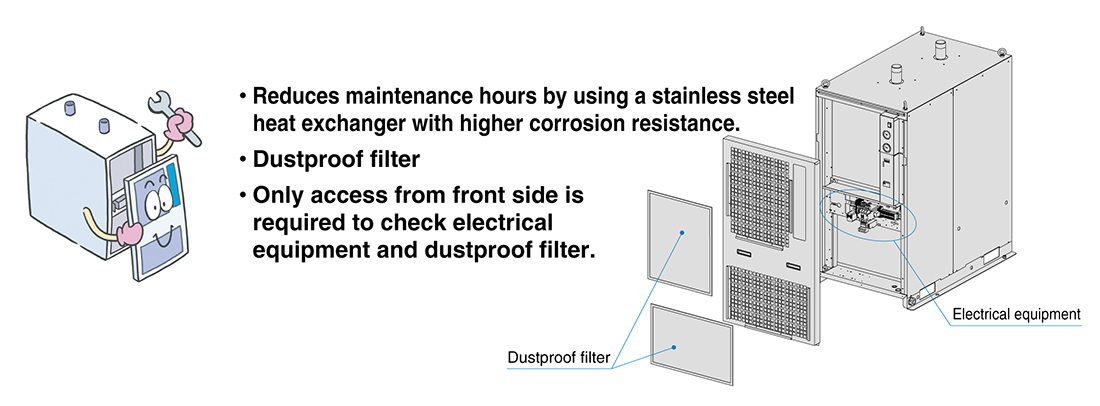

Maintenance

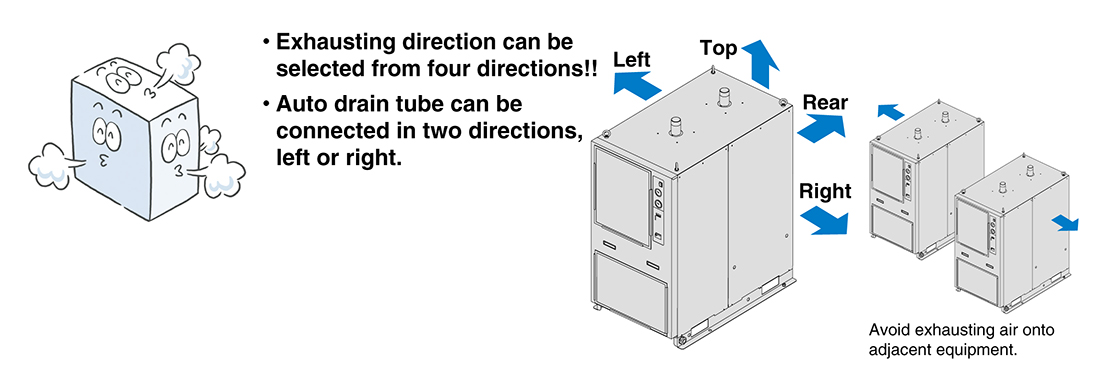

Selection of layout

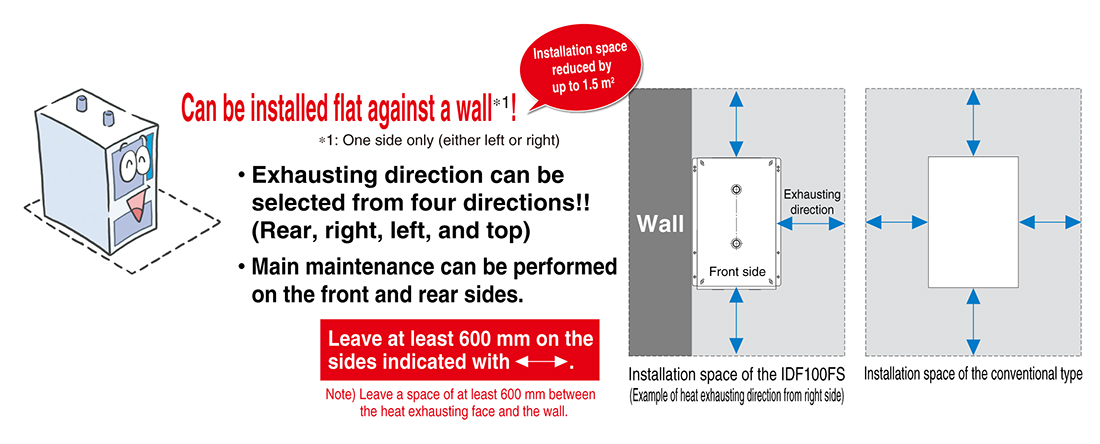

Space saving

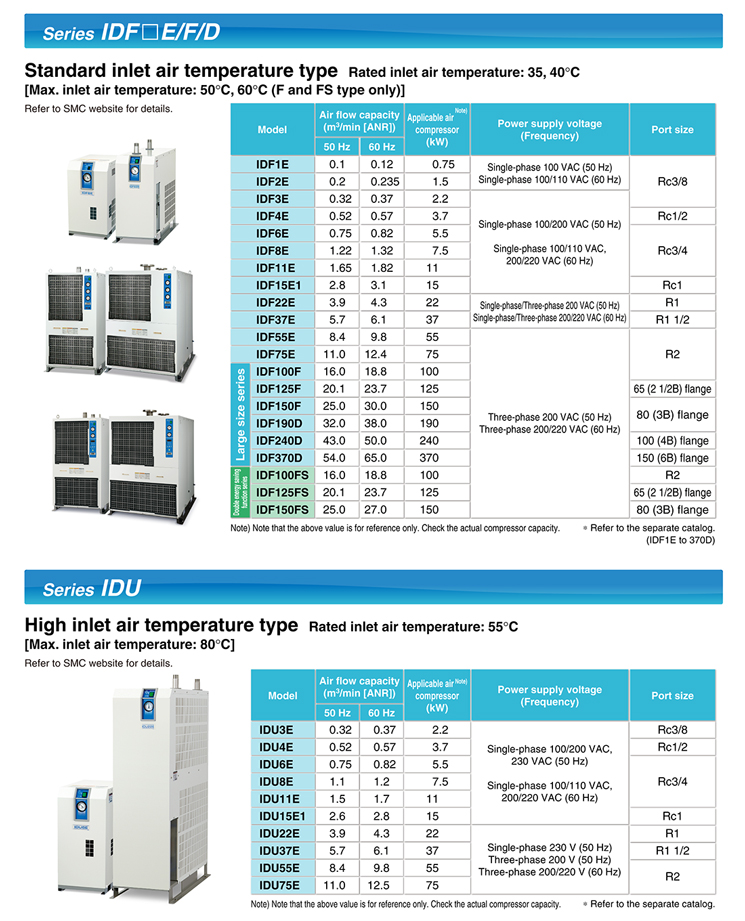

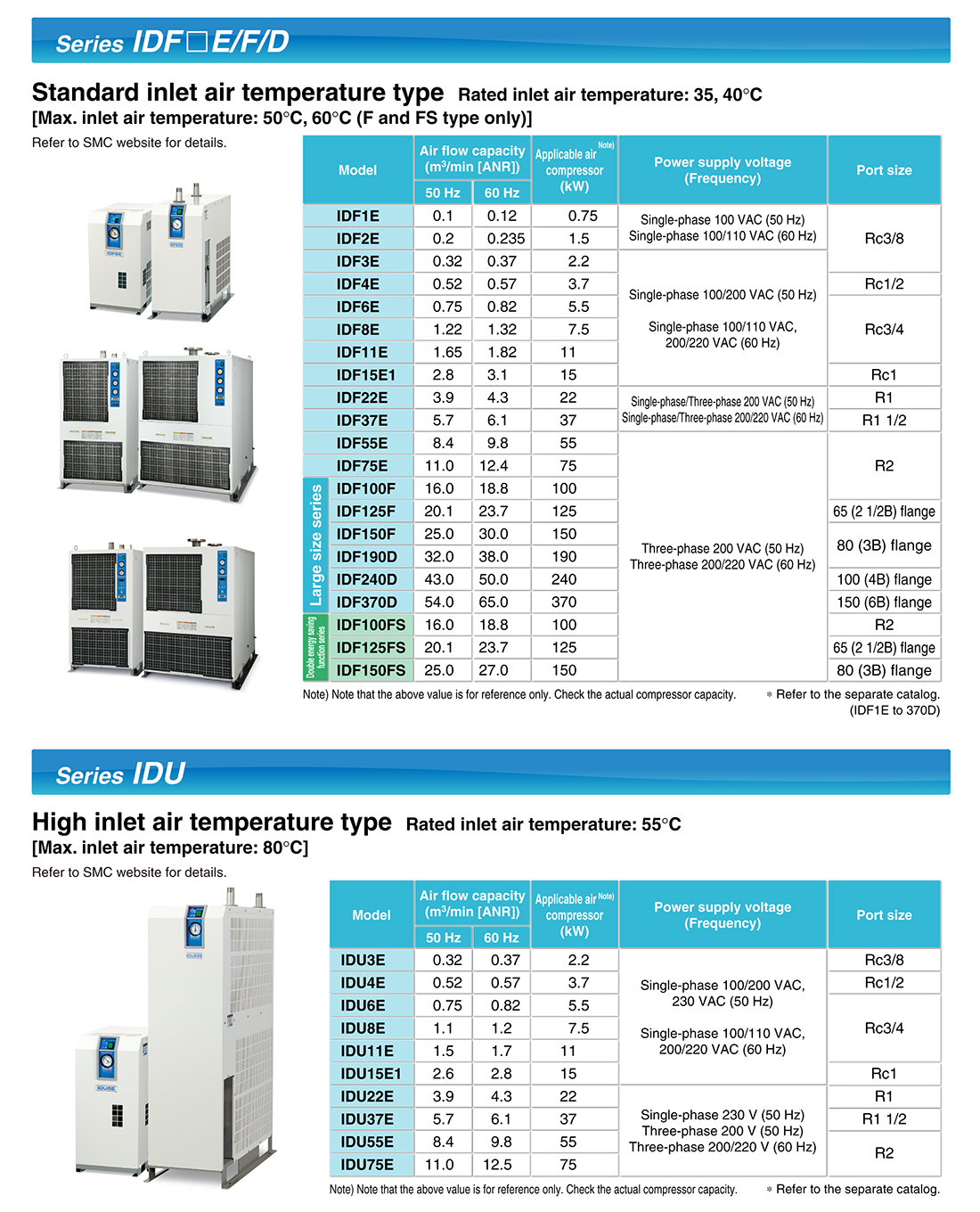

Air Dryer Variations
