Compact Air Cylinders

Compact Cylinder JCQ/JCDQ

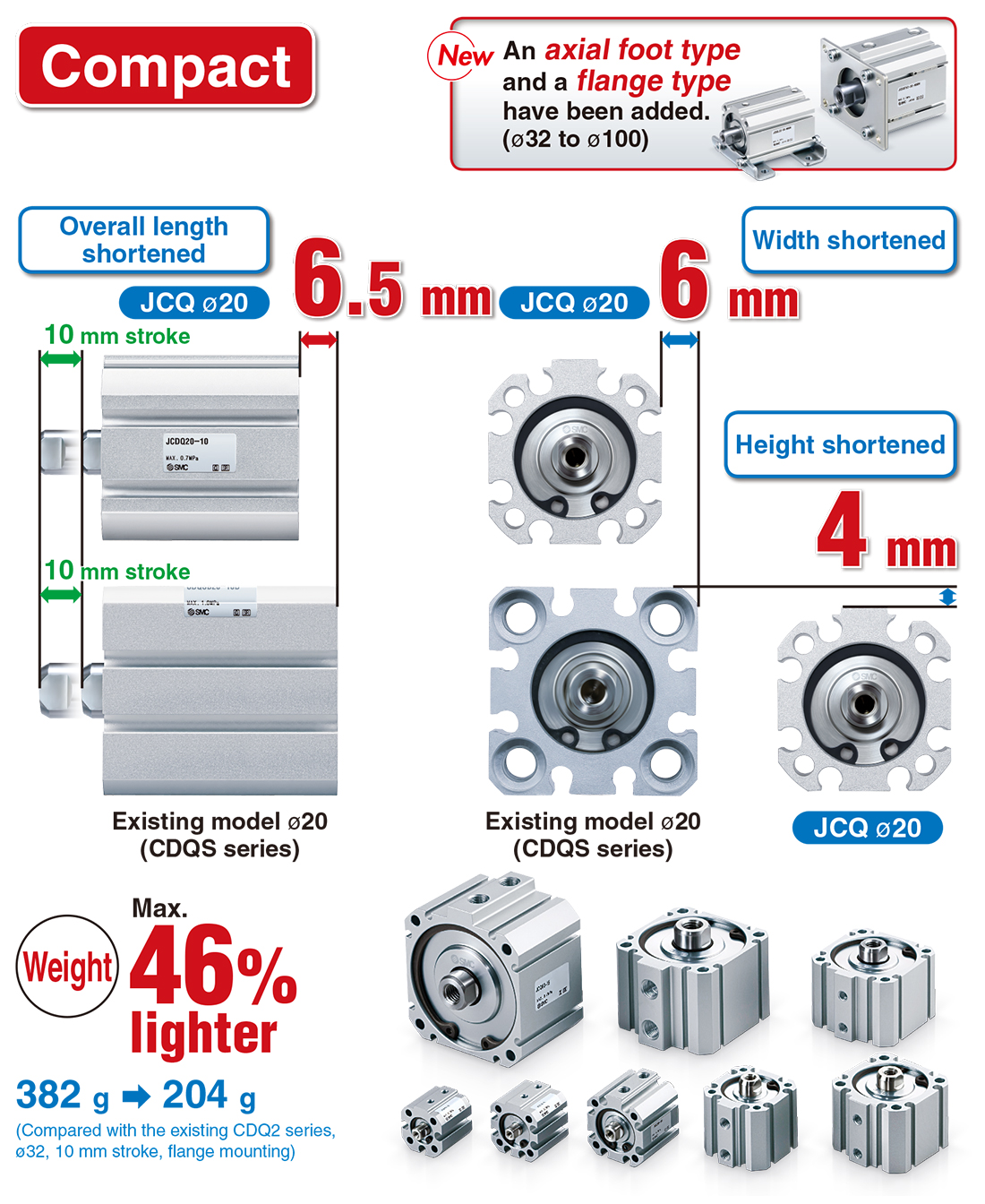

    ・Compact: Overall length shortened by 6.5 mm, Width shortened by 6 mm, Height shortened by 4 mm

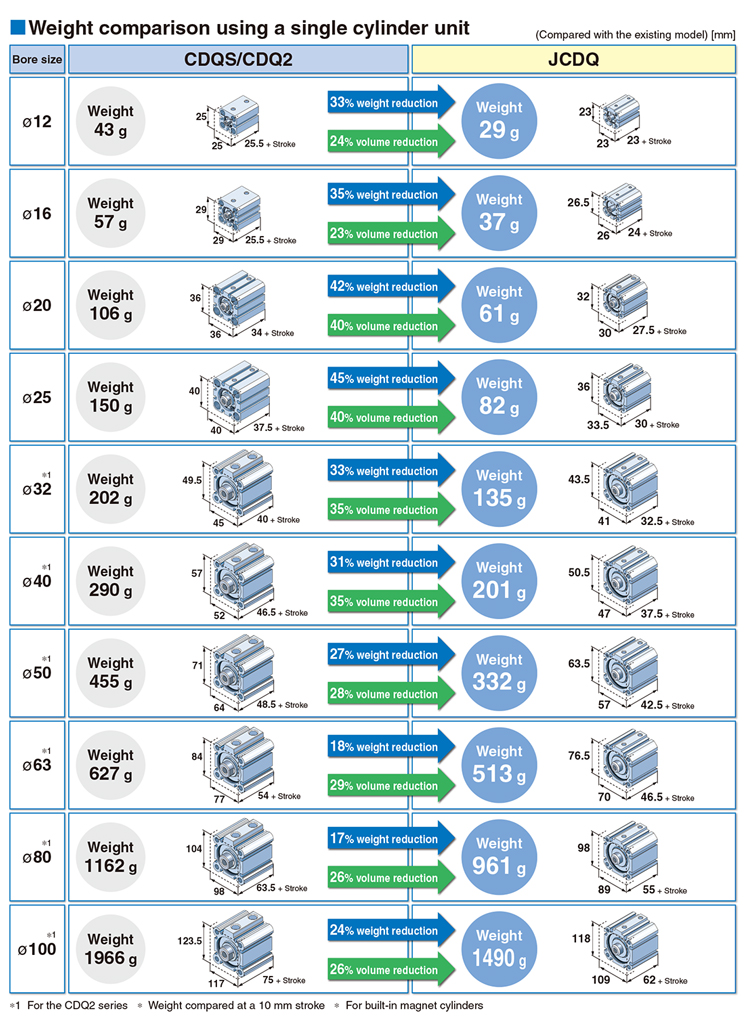

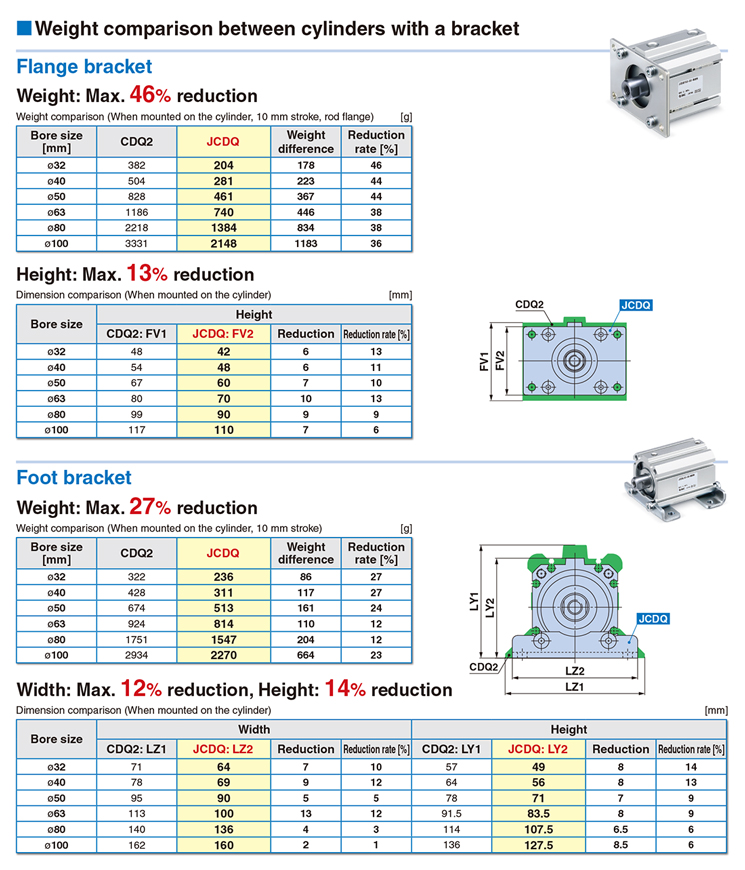

    ・Weight: Max. 46% lighter (382 g → 204 g) (Flange mounting)
    ・Volume: Max. 40% reduction
    ・With auto switch (JCDQ series: JCDQ)
    ・An axial foot type and a flange type have been added. (ø32 to ø100)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
Safety Instructions　Actuators/Precautions　Auto Switches/Precautions
Green Procurement (RoHS)
TypeSeriesActionBore size (mm)
StandardJCQDouble acting, Single rod12，16，20，25，32，40，50，63，80，100

Features

Compact

Lightweight and compact
