Compact Air Cylinders

Compact Cylinder / High Power Type CQE

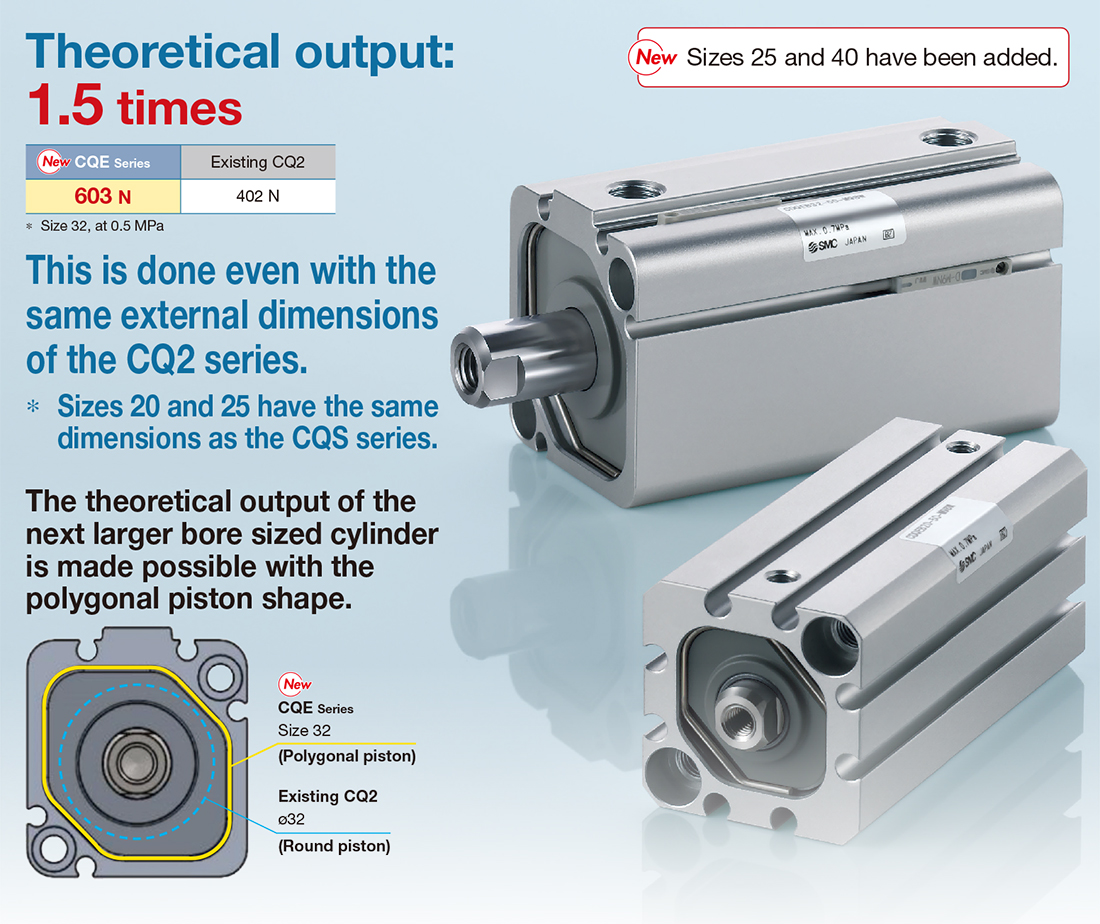

    ・Theoretical output: Max. 1.5 times
    ・This is done even with the same external dimensions of the CQ2 series.
    ・The theoretical output of the next larger bore sized cylinder is made
    　possible with the polygonal piston shape.
    ・Contributes to a lower pressure air line, Supply pressure decreased by
    　0.17 MPa

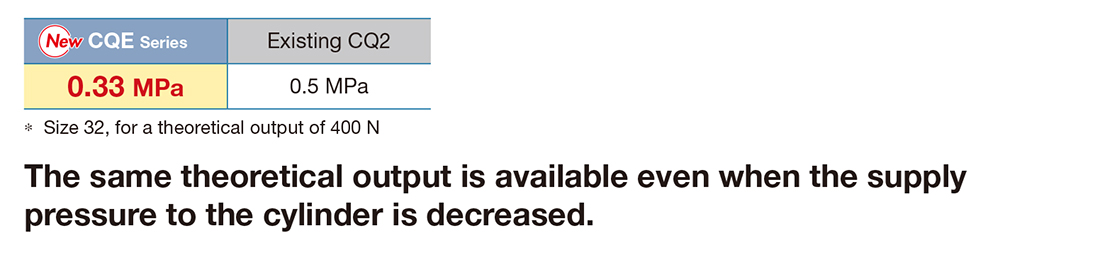

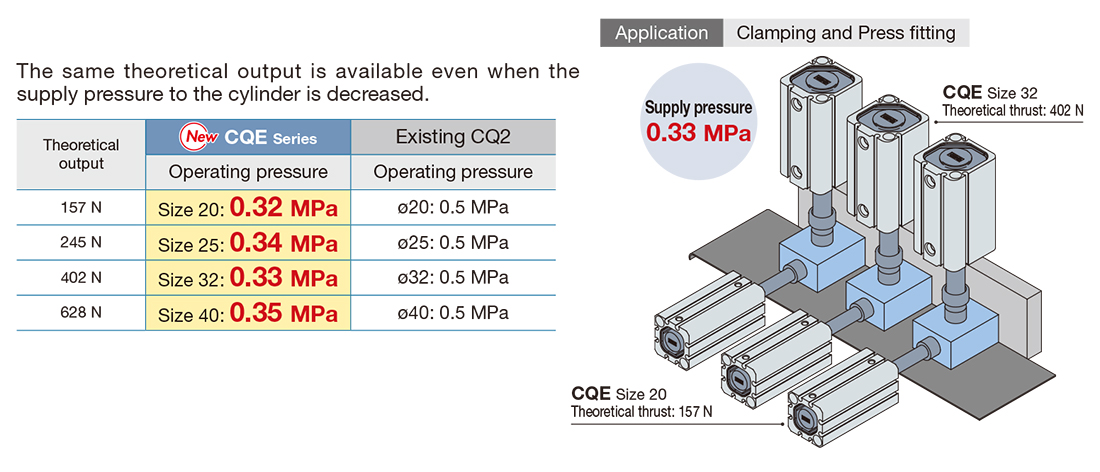

    　The same theoretical output is available even when the supply pressure
    　to the cylinder is decreased.
Safety Instructions　Actuators/Precautions　Auto Switches/Precautions
Model Selection/Technical Data　Green Procurement (RoHS)
TypeSeriesActionBore size [mm]
High power typeCQEDouble acting, Single rod20，32

Features

Theoretical output: 1.5 times



Contributes to a lower pressure air line
Supply pressure decreaed by 0.17 MPa

Low pressure possible

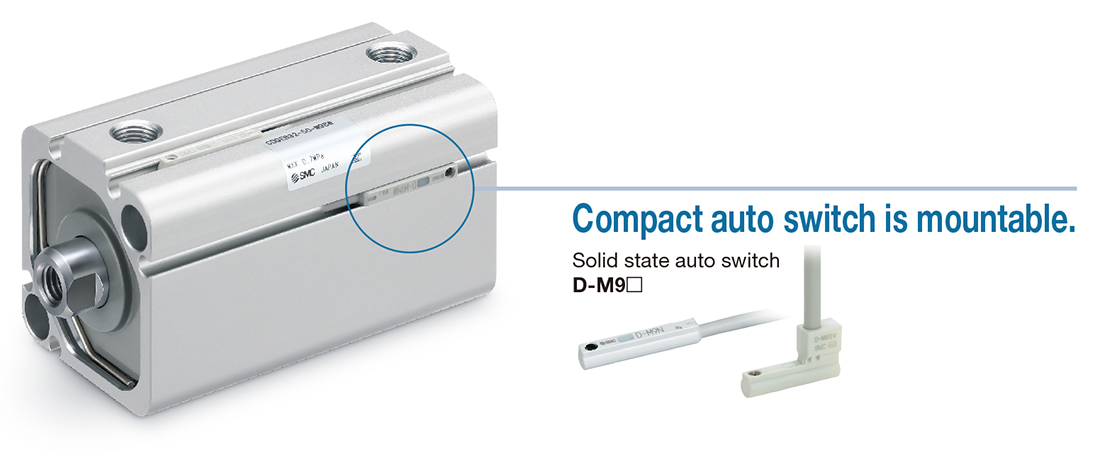

Compact auto switch is mountable.

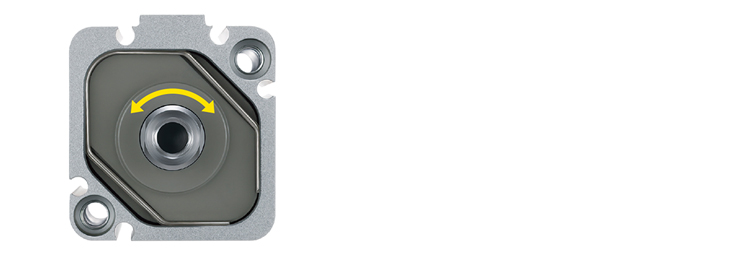

Thanks to the polygonal piston, the piston rod is not rotated during normal operation.

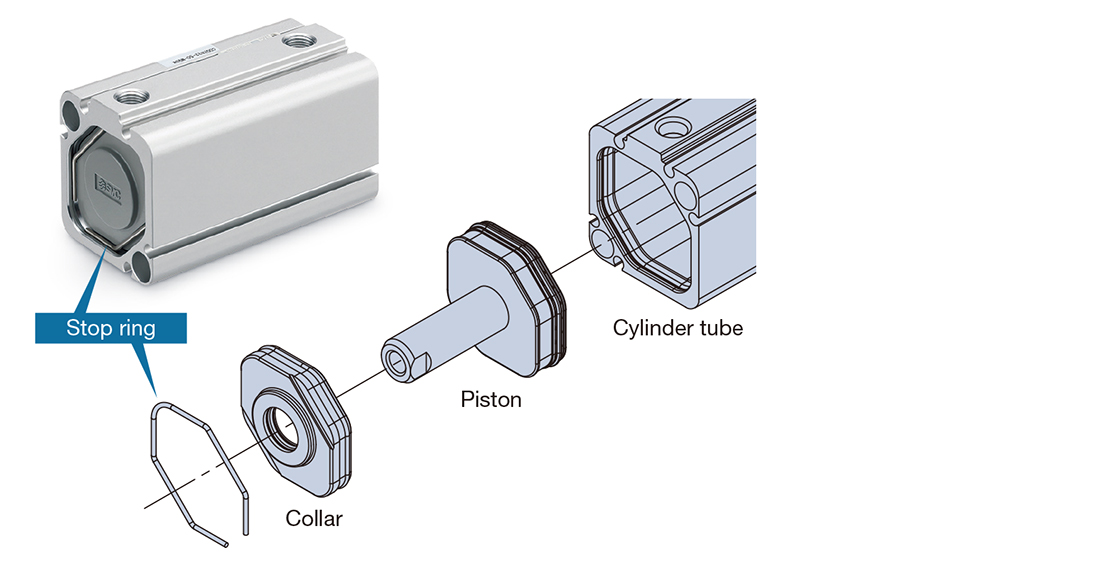

Less time spent replacing seals No special tools required
