Clamp Cylinders
Power Clamp Cylinder CKZ3T-X2734/CKZ3T-X2568□
-
・Simple switch adjustment greatly reduces work-hours
Switch can be adjusted easily when changing the arm opening angle.
・With metal switch cassette cover
・Weight reduced by up to 39%
・High clamping force: 4000 N
・Spatter proof construction
・Select from 2 types of top cover
・A model with a manually operated handle (lock specification) is available.
| Series | Arm opening angle | Switch | Bore size (mm) |
|---|---|---|---|
| CKZ3T-X2734 | 15º, 30º, 45º, 60º, 75º, 90º, 105º, 120º, 135º | TURCK/P&F | 50，63 |
| CKZ3T-X25688m (With manually operated handle) | 15º，30º，45º， 60º，75º，90º，105º，120º | TURCK/P&F | 50，63 |
Features

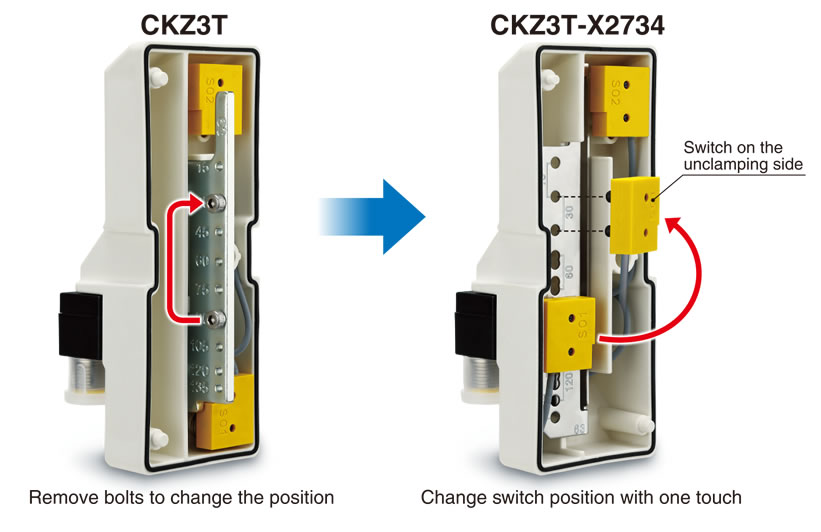

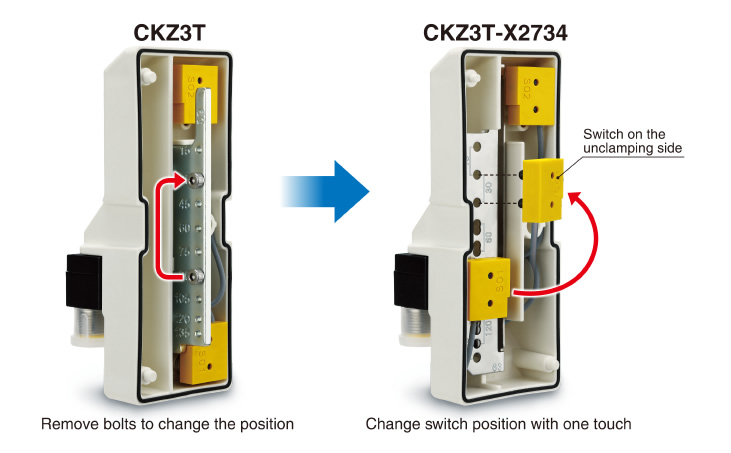

■Simple switch adjustment greatly reduces work hours
Switch can be adjusted easily when changing the arm opening angle.
Switch can be adjusted easily when changing the arm opening angle.

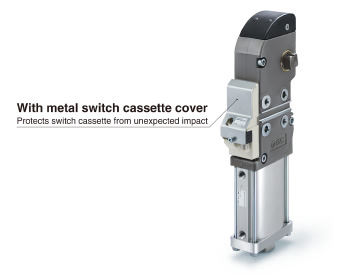

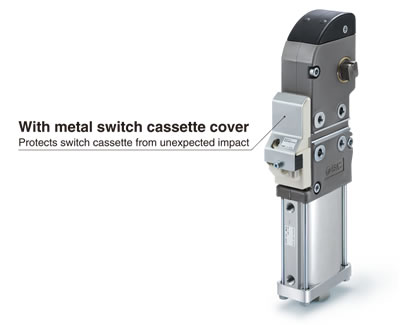

■With metal switch cassette cover
- Protects switch cassette from unexpected impact

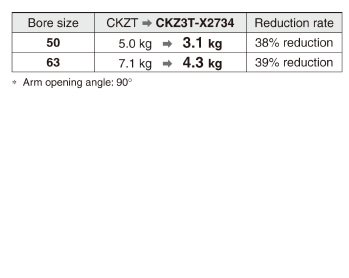

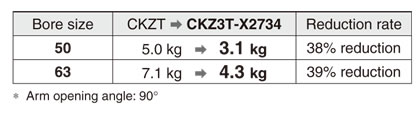

■Weight reduced by up to 39%
- Aluminum body with greatly reduced weight
- Suitable for robot material handling
■High clamping force 4000 N
(ø63, Arm length: 100 mm, 0.5 MPa pressure)
■Spatter proof construction
Fully closed structure prevents intrusion of spatter
■Select from two types of top cover
- Rubber cover: Rounded design reduces accumulation of welding spatter
Equivalent to UL94 standard V0: Flame resistant - Metal cover : Suitable for arc welding lines,
Protects the cylinder from unexpected external impact

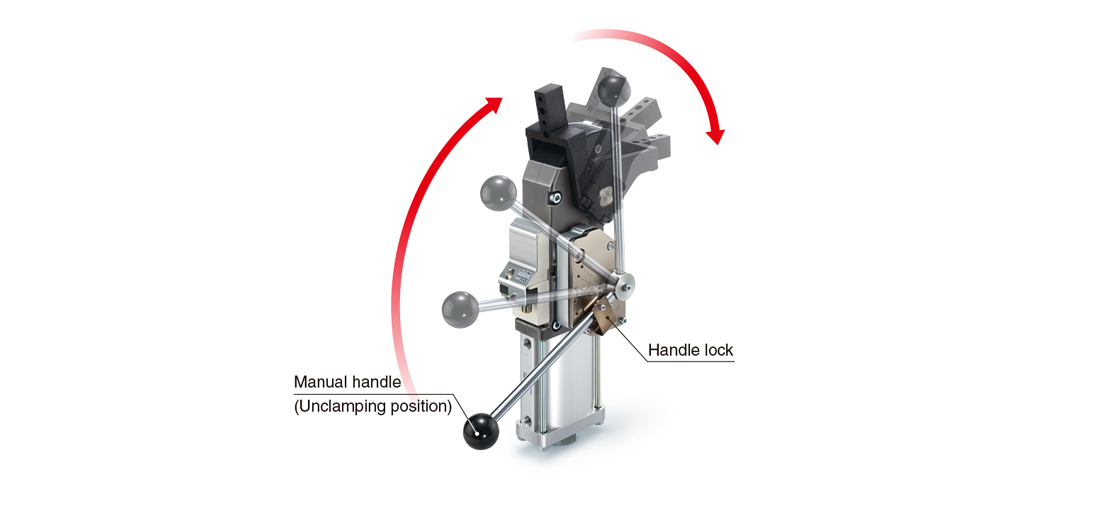

■Manual handle (lock specification) is available.
- For manual workpiece setting processes
