Model Selection Software
Program bugs are corrected and the database is updated as required to upgrade the model selection software irregularly.
Before using model selection software listed below, check the version and be sure to use the software with the latest version.
It takes a long time to update each selection software as its data capacity increases. To upgrade the selection software, be sure to download the software with the latest version.
If you use the software with the old version, please download the latest version while referring to the instructions below.
|Latest versions at present
If the version of the software you are using is older than that shown below, please update the software version to the latest version.
|Software name||Version||Date of update||Language||Upgraded contents|
|Model Selection Software||4.0.21||2018/02/07||Japanese, English, Chinese (simplified), Chinese (traditional), Korean, French, German, Italian, Spanish, Portuguese, Russian||
・The trouble in which since reading from and writing to some files could not be performed due to a real-time search of the Virus Buster, errors were displayed and the software did not start up, was corrected.
・In the case where the SI system of units was selected in condensation calculation, the trouble which occurred when the calculation was performed with the atmospheric dew point or pressure dew point was corrected.
See previous contents
|Guide Cylinder Selection Software
||Japanese, English, Chinese (simplified), Korean, French, German, Italian, Spanish
・Erroneous descriptions in English, German, French and Italian displayed on the CQM series screen were corrected.
・The calculation error when a space was entered in the field of the load center of gravity for installation was corrected.
・The operating pressure determination trouble of the MXJ was corrected.
・The trouble that occurred when reading the saved file of the MXQ was corrected.
See previous contents
|Energy Saving Program
||Japanese, English, Chinese (simplified), Chinese (traditional), Korean, French, German, Italian, Spanish, Portuguese, Russian
・The calculation error of jet diameter in “Characteristics Calculation: Air Blow Piping” was corrected.
・The problem when the screen for entering the power consumption and power charge of compressed air cost is opened after Japanese yen was selected as the currency unit was corrected.
See previous contents
|How to check the version
To check the version of the software you are using, display the Version screen using the following operating procedures.
|Software name||Operating procedures||Display contents|

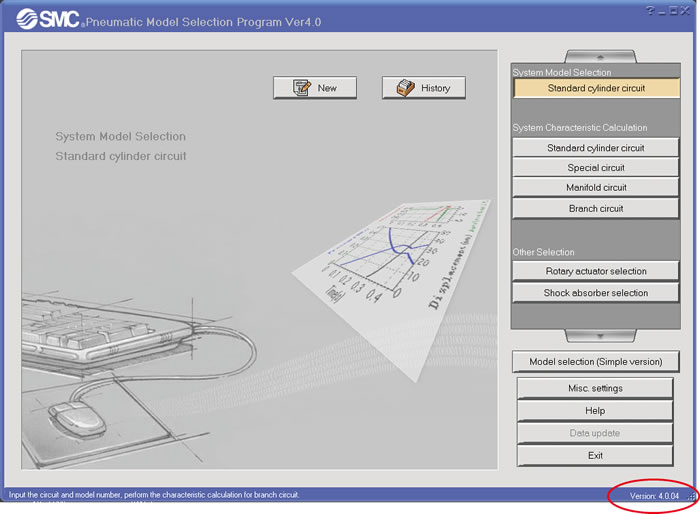

|Model Selection Software Ver.4.0||From the Main menu, select [Help (H)] → [Version Information].||Screen|

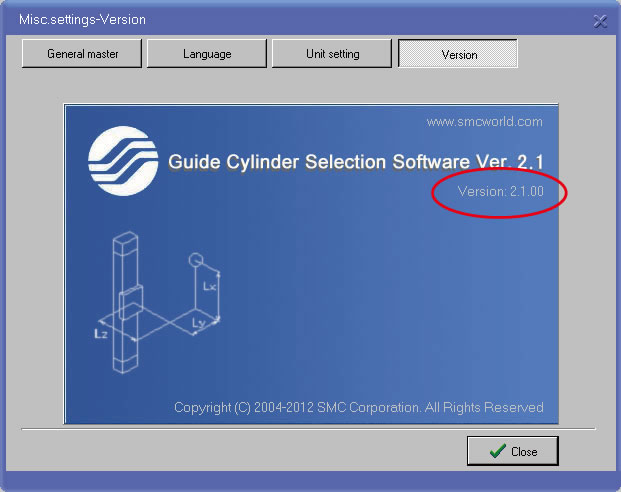

|Other software||On the Start screen, select [Various Settings] → [Version Information].||Screen|
|The new version is displayed at the lower right portion of the Start screen and at the lower left portion of the calculation result print page.||Screen|
|How to download the software with the latest version
Please download the software with the latest version from the address shown below and run "SETUP.EXE" to install the software.
Before installing the software with the latest version, uninstall the software with the old version from [Add or remove programs] in [Control Panel] of Windows.
→To operation example
|Model Selection Software Ver.4.0.21||76MB||Download the latest version|
|Guide Cylinder Selection Software Ver.3.0.09||25MB||Download the latest version|
|Energy Saving Program Ver.4.1.05||60MB||Download the latest version|
|Operating environment||Windows 7/8/8.0/10 (32bit/64bit)|
|CPU||Celeron processor of 2 GHz or higher is recommended.|
|Display||1024 x 768 pixels or higher
(The software may not be displayed correctly on the wide display.)
|Hard disk||700 MB or more of free disk space (When installing all software products)|
|Display||・ The software may not be displayed correctly on the wide display (for example, WXGA or higher).
・ If the software may not be displayed correctly on Windows 7, install Windows XP Mode and run the software.
|Selection software||・ When the results you have saved using the Rotary Actuator Selection of the Model Selection Software with the old version are loaded from the history, the inertia moment calculation results cannot be loaded correctly.
・ If an error occurs during installation and the software cannot be installed correctly, delete the folder with the old version that is located in SMC Application at the installation destination.
・ All software products cannot be upgraded by updating the data of the software with the old version. Be sure to install the software with the latest version after the software with the old version has been uninstalled completely.
・ All software products are subject to change without prior notice due to continual upgrading. The latest versions can be seen at SMC’s website. So, please check SMC’s website periodically.
