・For air, water, oil, heated water, high-temperature oil
・Body materials: Aluminum, Resin, C37, Stainless steel
・A type with One-touch fittings (Resin body) is available.
|Series||Actuation||Port size||Orifice diameter (mmø)|
1/4 to 1
|10 to 25|

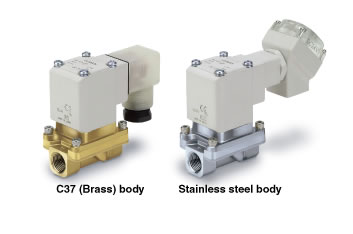

Body material：C37, Stainless steel
Air, Water, Oil, Heated water, High temperature oil
*Electrical entry flat terminal type terminal is IP40.
Built-in full-wave rectifier type

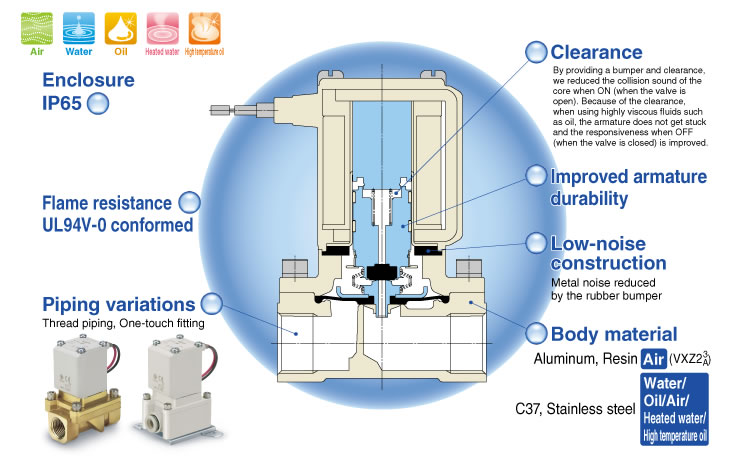

Service life is extended by the special construction.(compared with current AC specification)
■Reduced buzz noise
Rectified to DC by the full-wave rectifier, resulting in a buzz noise reduction.
■Improved OFF response
Specially constructed to improve the OFF response when operated with a higher viscosity fluid such as oil.
Specially constructed to reduce the metal noise during operation.
