・Dry air, N2

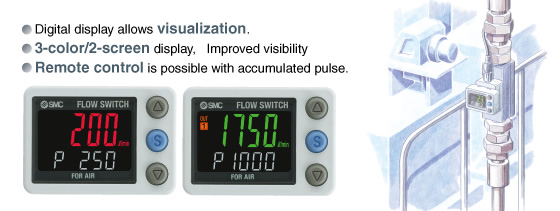

・3-color/ 2-screen display
・Expanded flow range: Wide range of flow measurement with one product
・Compact, Space saving
|Series||Rated flow range (L/min)|
5 to 500
10 to 1000
20 to 2000
Display can be rotated in increments of 45° to suit the installation conditions.
Easy operation, improved visibility.

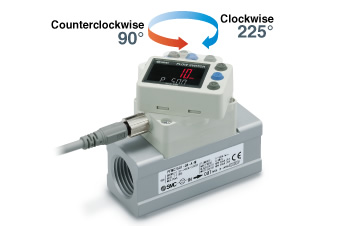

Counterclockwise 90° Clockwise 225°
Can be selected from 50 ms (0.05 s)/0.1 s/
0.5 s/1.0 s/2.0 s
Response time can be set depending on
- Output operation
- Display color
- Reference condition
- Display mode
- Response time
- External input function
- Forced output function
- Accumulated value hold
- Selection of display on sub screen
- Display OFF mode
- Setting of security code
- Peak/Bottom value display
- Keylock function
- Analog output free range function
- Error display function

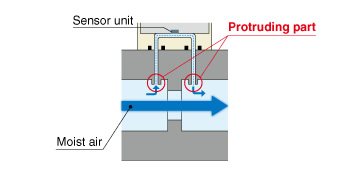

Bypass structure with protruding part at the main piping, reduces the contact of moist air with the sensor, reducing degradation of the sensor and maintaining accuracy.

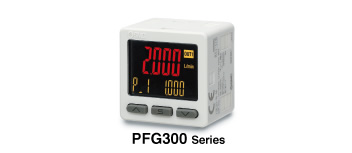

Allows for the monitoring of remote lines
Flow control is necessary for promoting energy saving in any application.
Saving energy starts from numerical control of the flow consumption of equipment and lines and clarification of the purpose and effect.
