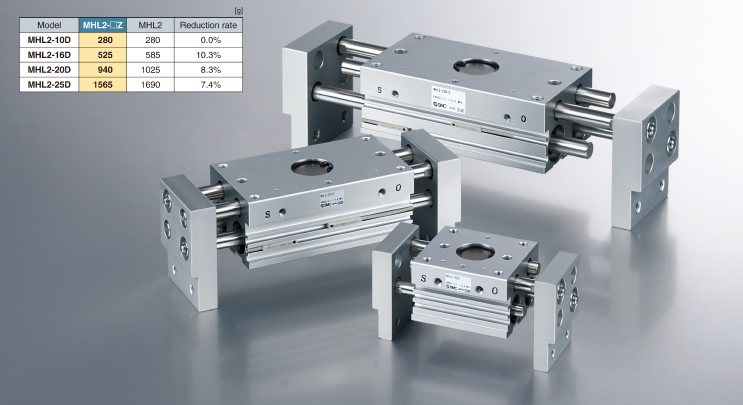

・Lightweight: Max. 10% lighter: 585 g → 525 g
Weight reduced by changing the body shape and internal construction
・Built-in dust protection mechanism (Standard)
Dust-resistant option (Made to order: -X85, -X86□)
・Long stroke: One unit can handle workpieces of various diameters.
・A large amount of gripping force is provided, through the use of a double piston
mechanism, while maintaining a compact design.
・Small auto switches can be directly mounted.
|Series||Cylinder bore size (mm)|
Weight reduced by the change of the body shape and internal construction
●Mounting brackets are not required.
This reduces assembly labor.
●Direct mounting is possible with the changed groove shape.
・ Solid state auto switch: D-M9□
interchangeable with the current model.
