Air Cylinder JMB(JMDB)

Products »WEB Catalog » Air Cylinders » Standard Air Cylinders (Square Cover）

・Intermediary bore sizes: ø45, ø56, ø67, ø85
　Air saving, Space saving
・Overall length shortened by 27 mm
・Weight reduced by up to 36% (1.56 kg→1.00 kg)
・ Air saving: Reduced by up to 29%
　Air consumption can be reduced by optimal size selection.
・Reduces labor time
　Air cushion adjustment is not required due to the non-adjustable air cushion.
・With auto switch (JMDB series: JMDB)

Back

Catalogs

Data Download CAD PDF(1.9MB)

Other Data	Safety Instructions　Actuators/Precautions　Auto Switches/Precautions Green Procurement (RoHS)

Type	Series	Action	Bore size (mm)
Standard	JMB	Double acting, Single rod	32, 40, 45, 50, 56, 63, 67, 80, 85, 100

Air CylinderJMB(JMDB)

Type	Series	Action	Bore size (mm)	Download
Standard	JMB	Double acting, Single rod	32, 40, 45, 50, 56, 63, 67, 80, 85, 100

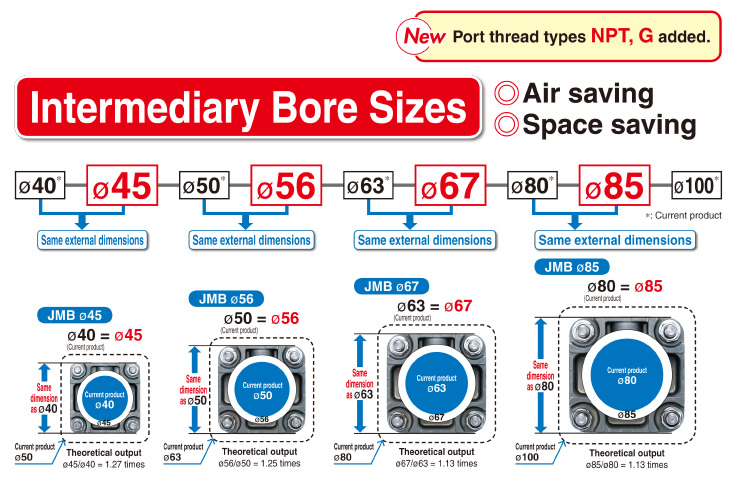

■Intermediary Bore Sizes ø45, ø56, ø67, ø85

Air saving, Space saving

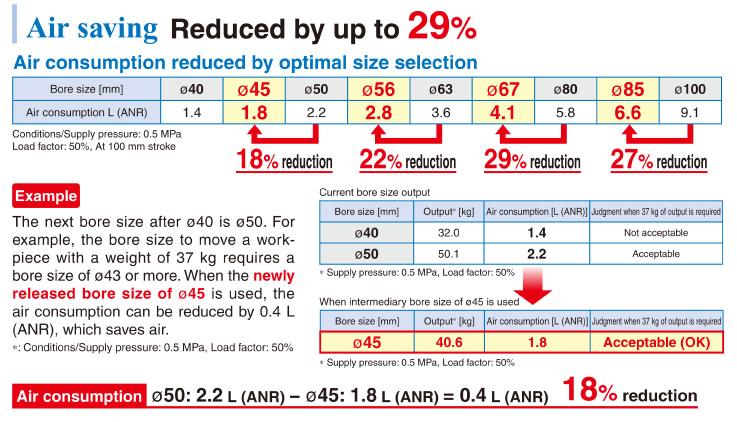

Air saving Reduced by up to 29%

Air consumption reduced by optimal size selection

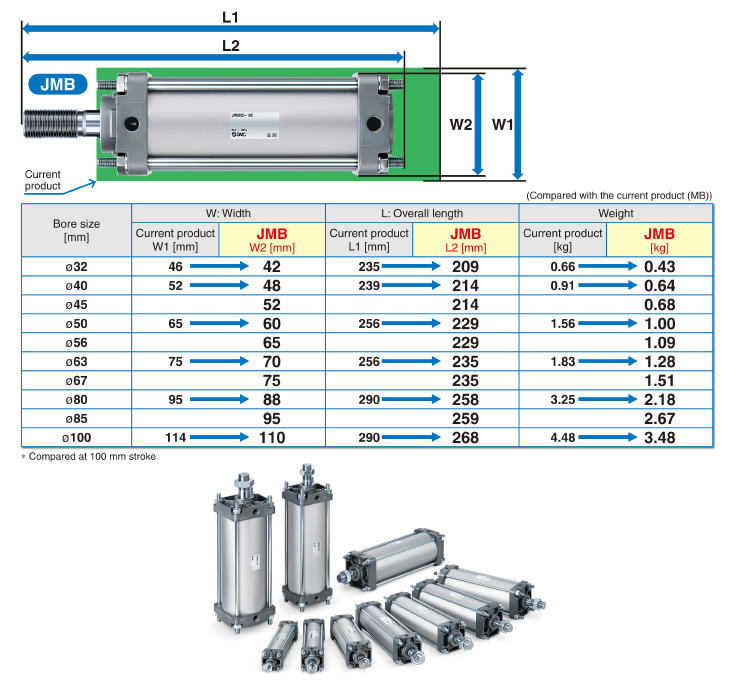

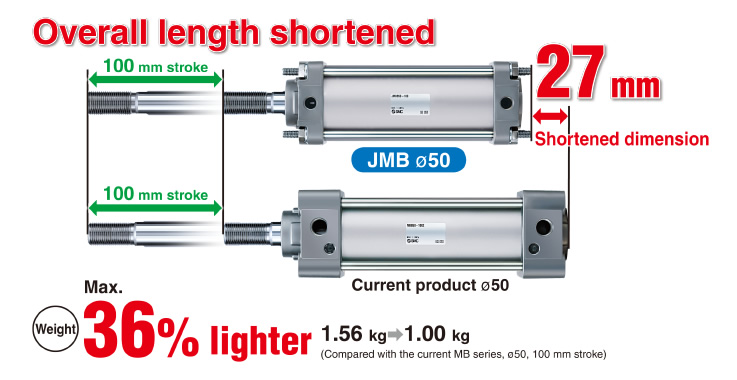

■Overall length shortened: 27 mm shortened

■Weight up to 36% lighter 1.56 kg ➡ 1.00 kg

(Compared with the current MB series, ø50, 100 mm stroke)

Compact and lightweight (ø32, ø40, ø50)

■Reduces labor time.

・Air cushion adjustment is not required due to non-adjustable air cushion.
・Built-in rubber bumper reduces the metal noise that occurs when piston stops.

■Port thread types NPT, G added. NEW
