・Lightweight and compact
・Cooling capacity: 9 kW
・Temperature stability: ±0.5°C
・Set temperature range: 5 to 35°C
・Max. ambient temperature: 45°C
・Power supply: 3-phase 200 to 230 VAC, 380 to 415 VAC
|Cooling method||Circulating liquid|
|HRS090||5 to 35°C||9kW (60Hz)||±0.5°C||
Ethylene glycol aqueous solution （15％）
The precision temperature control method by expansion valve and temperature sensor, realized high temperature stability of ±0.5°C and a small-size tank.

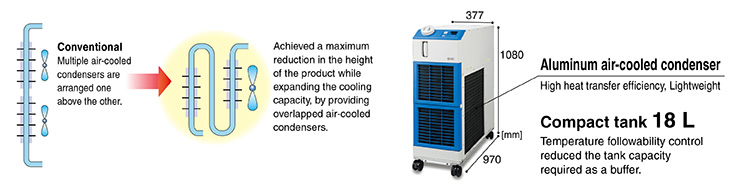

Reduced-height double condenser structure
Europe, Asia, Oceania, Central and South America: Only 400 VAC type
The serial communication (RS232C/RS485) and contact I/Os (2 inputs and 3 outputs) are
equipped as standard. Communication with the user’s equipment and system construction are
possible, depending on the application.
A 24 VDC output can be also provided, and is available for a flow switch (SMC’s PF2W etc.).
Resistance welding machine
Cooling of the welding head electrodes, transformers and transistors (thyristors)
High frequency induction heating equipment
Cooling of the heating coils, high frequency power source and around inverters
Lots of variations are available in response to the users’ requirements.
